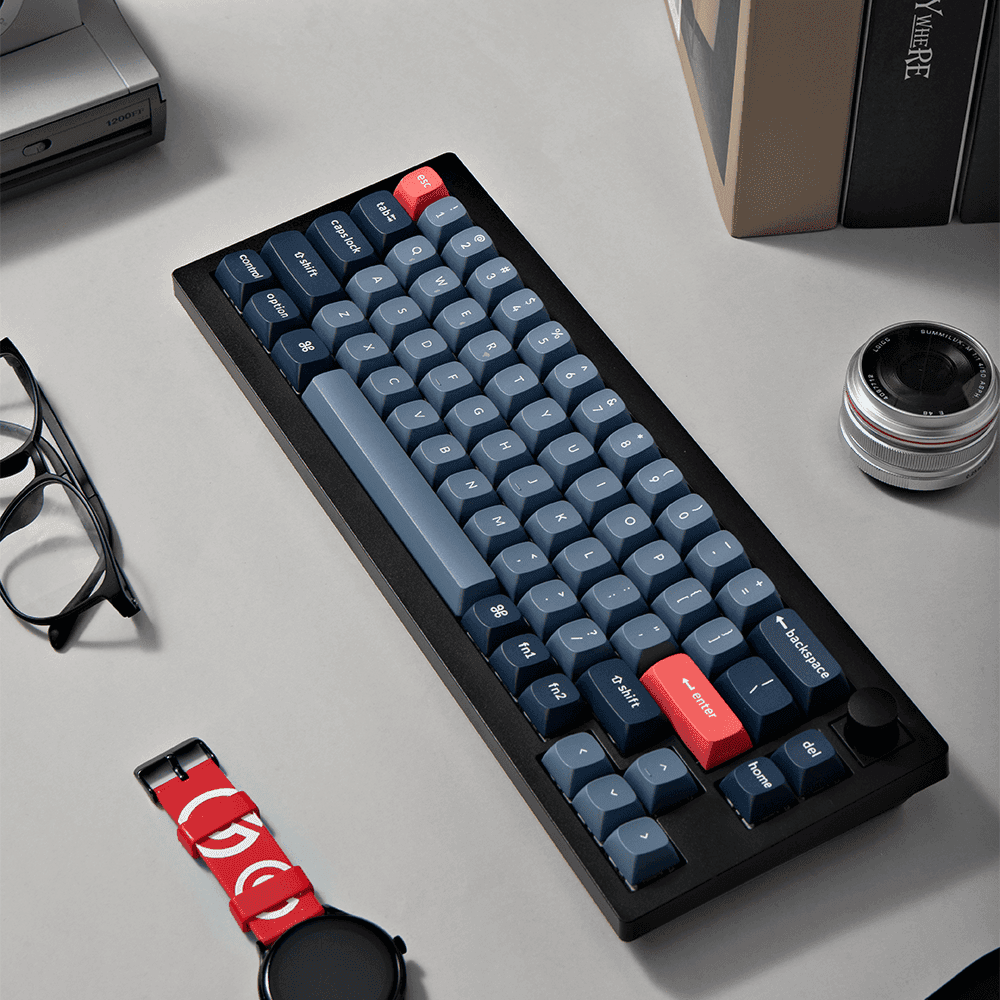

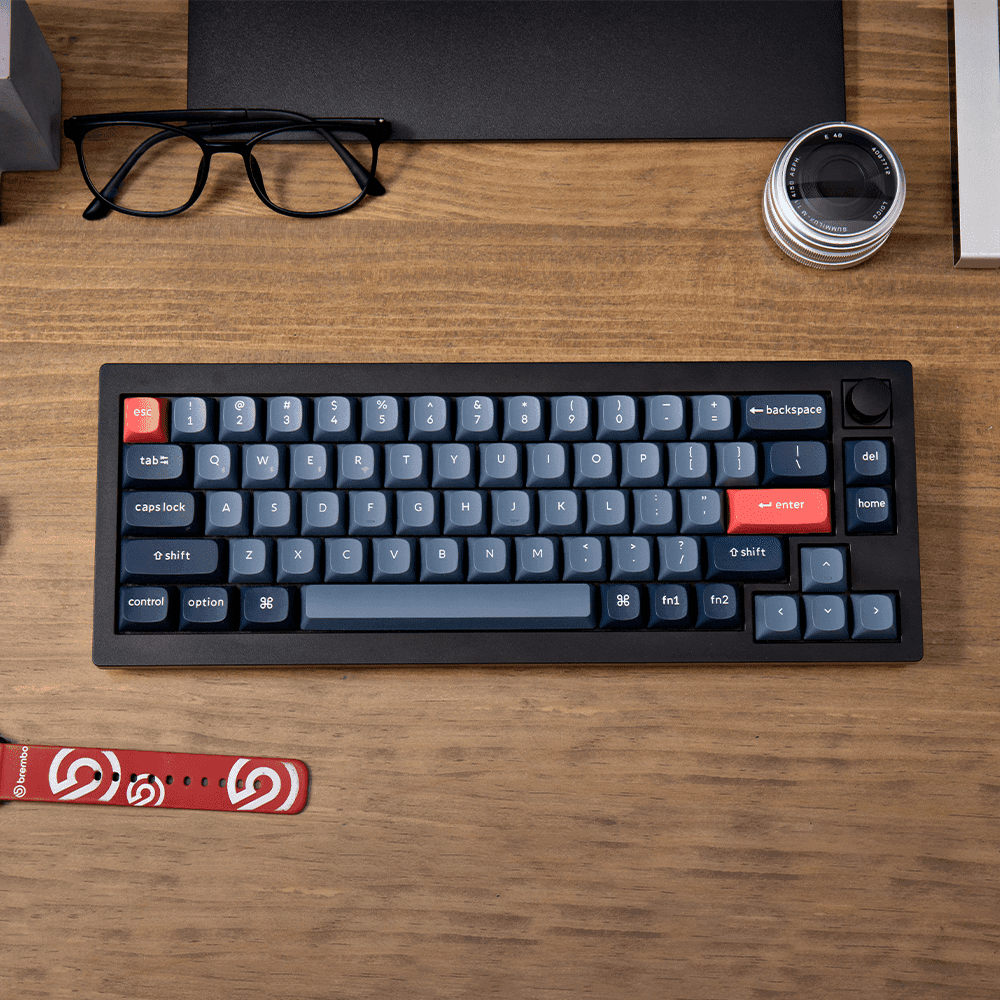

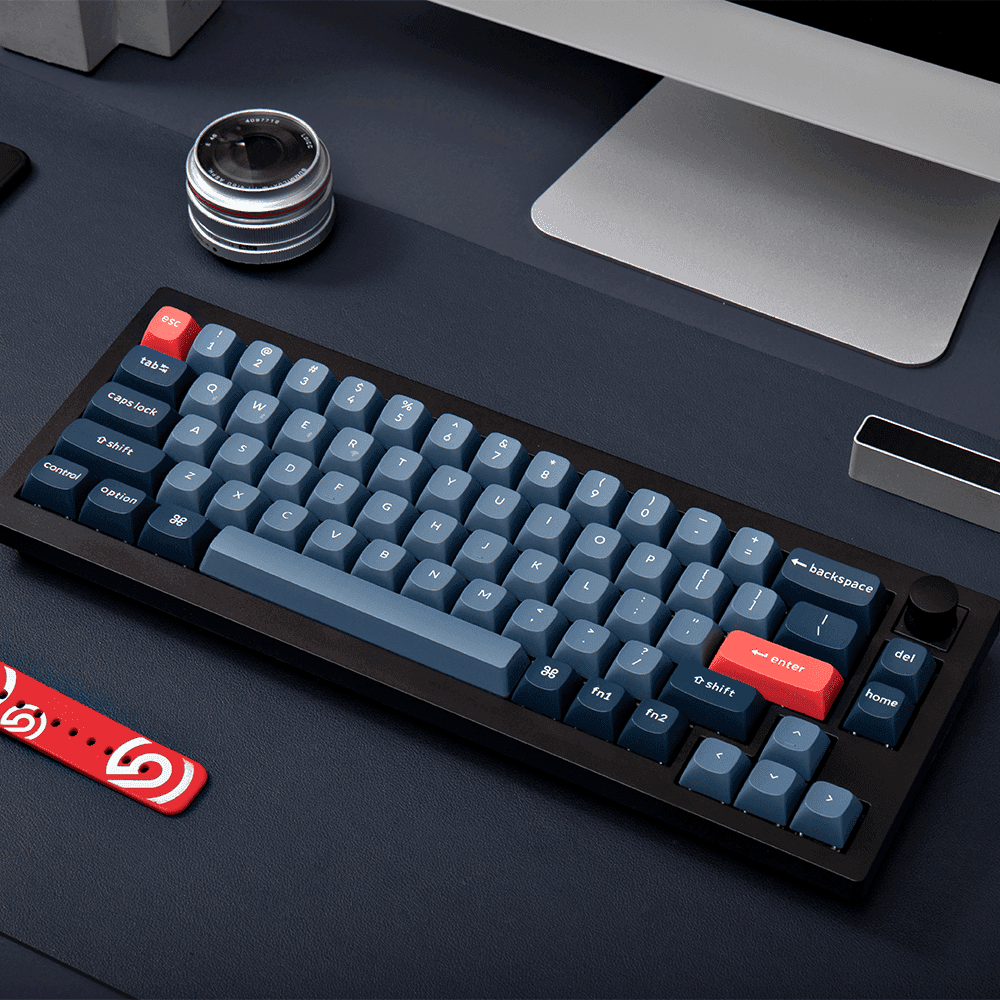

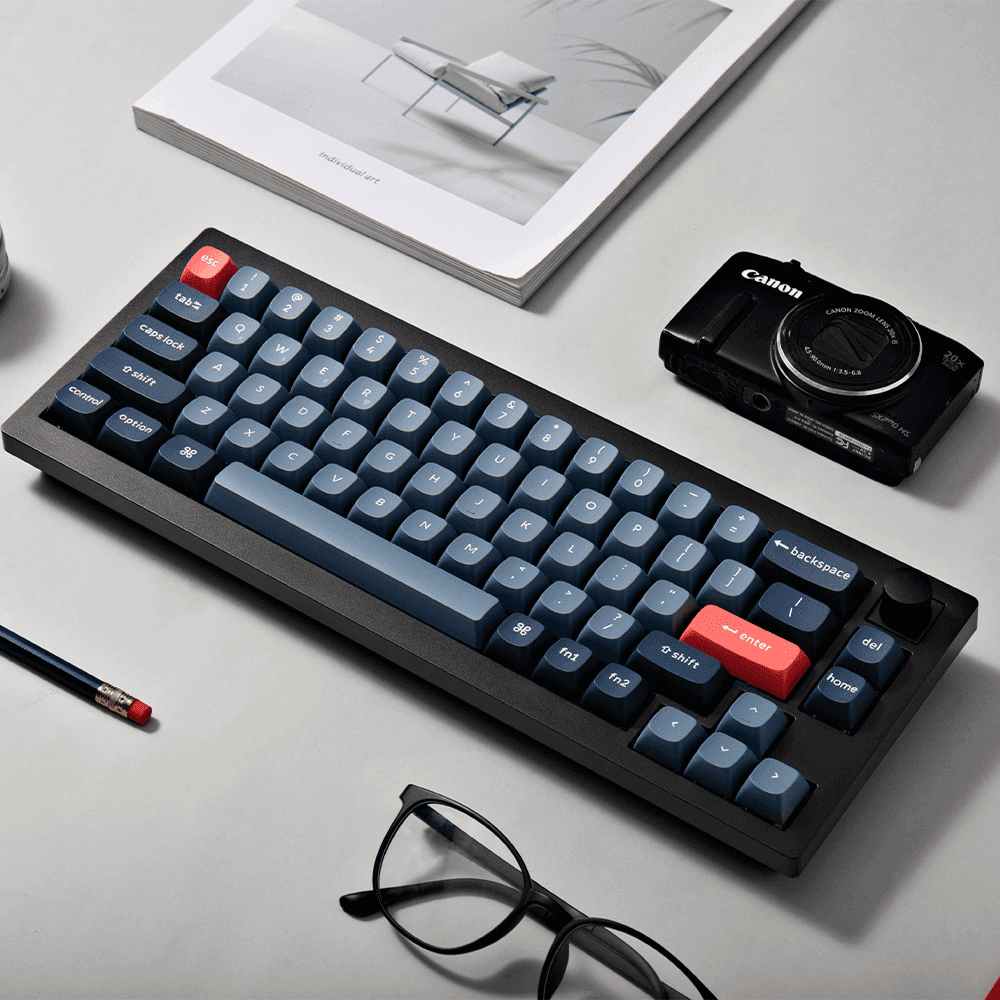

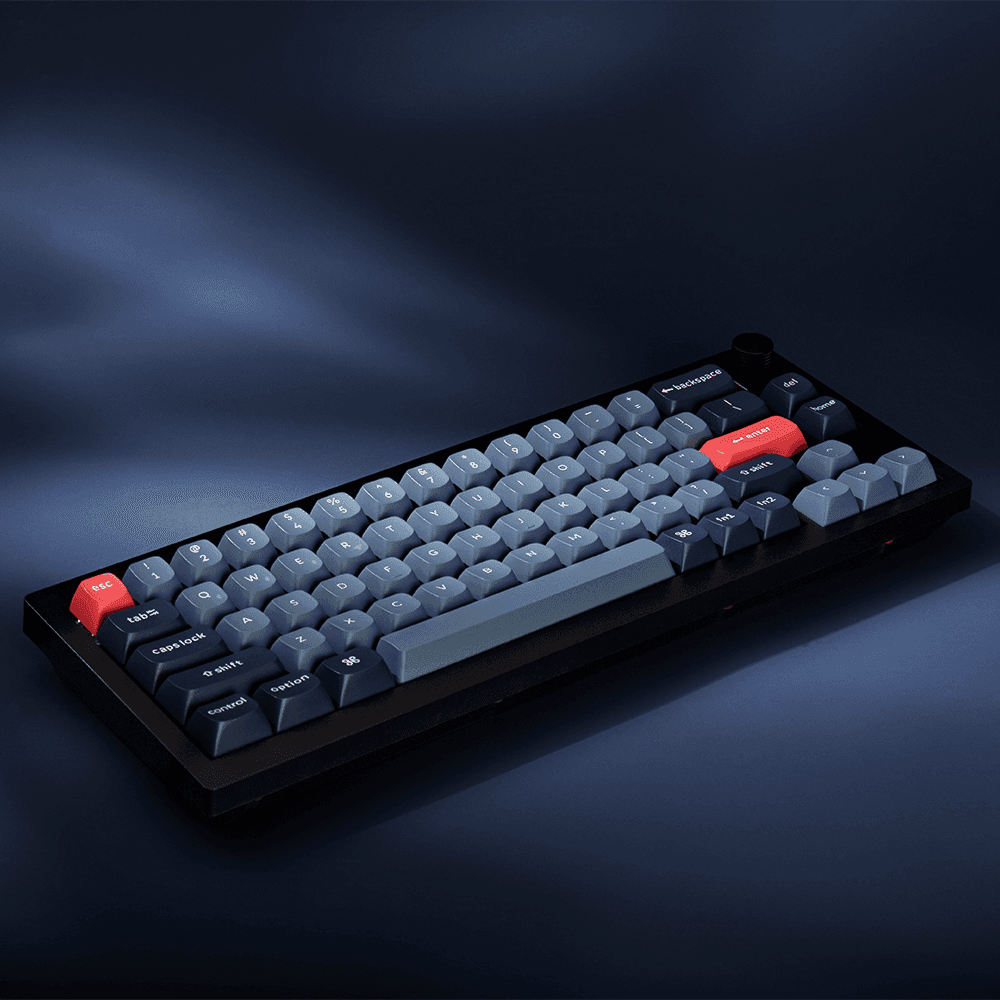

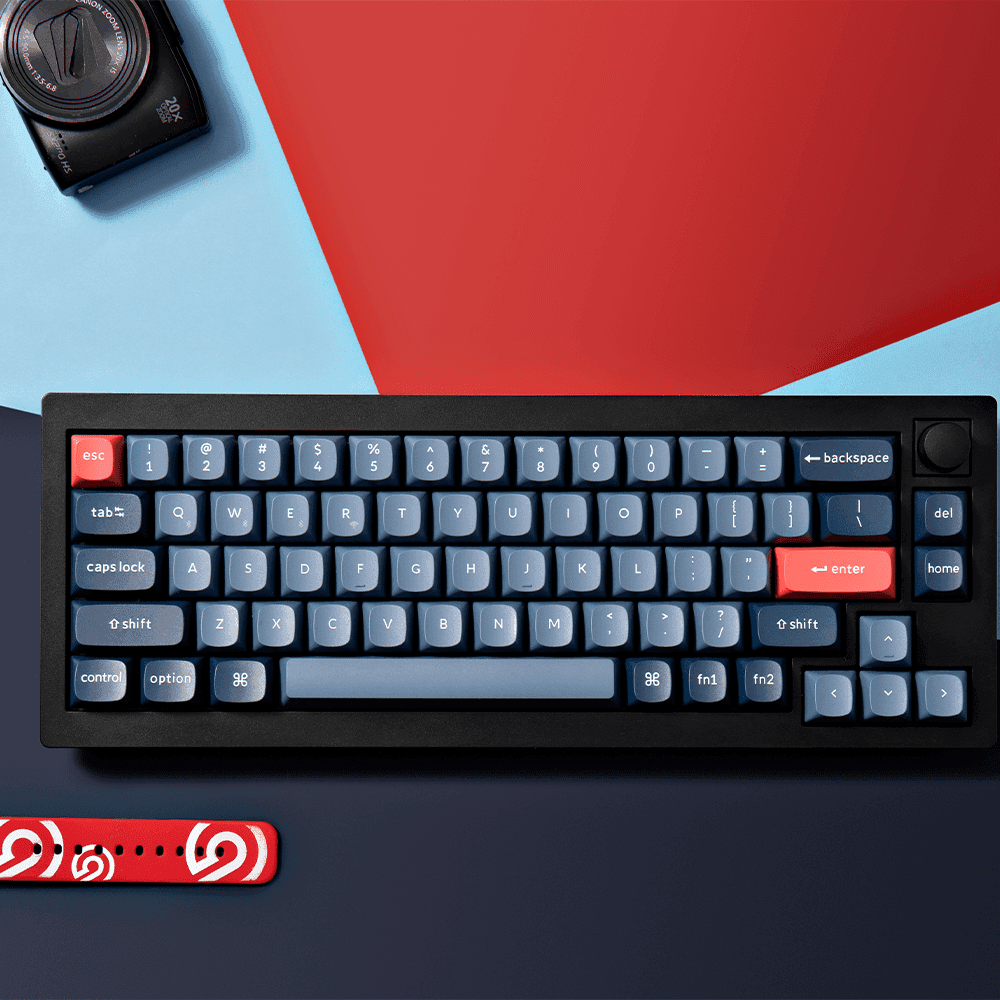

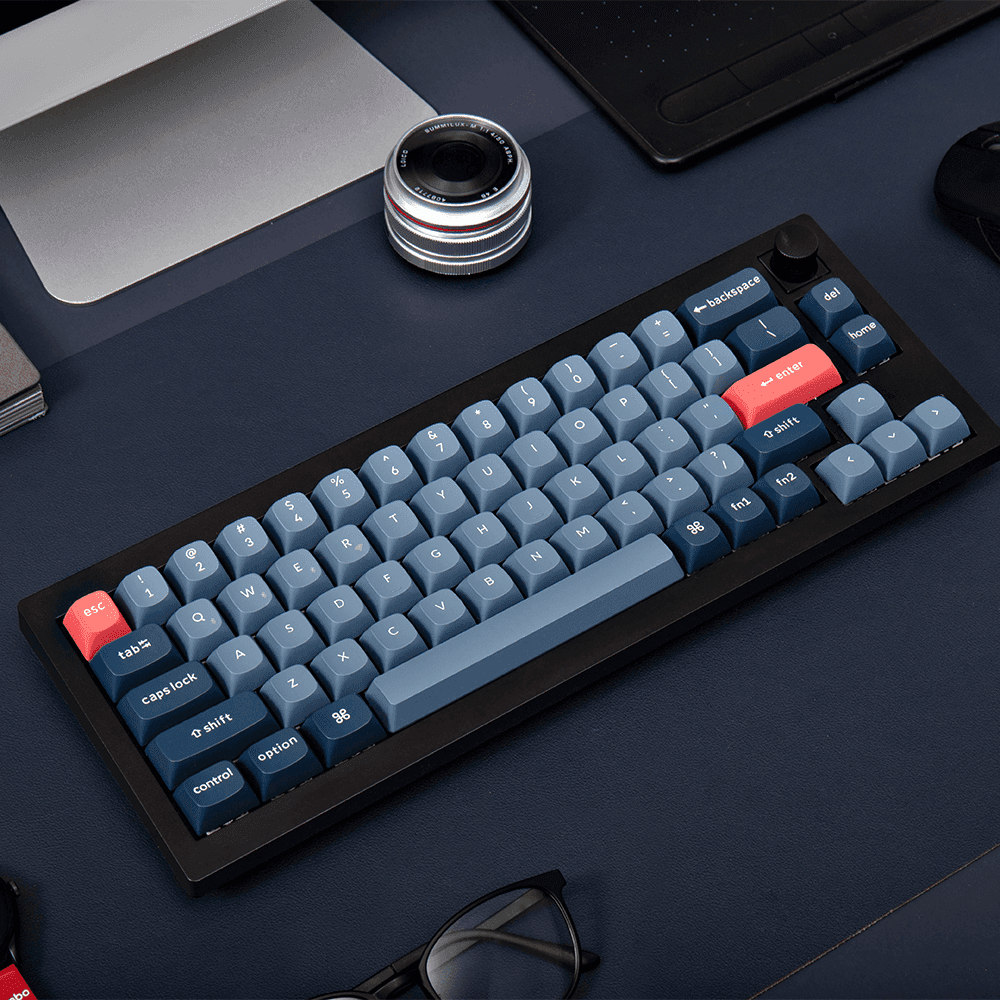

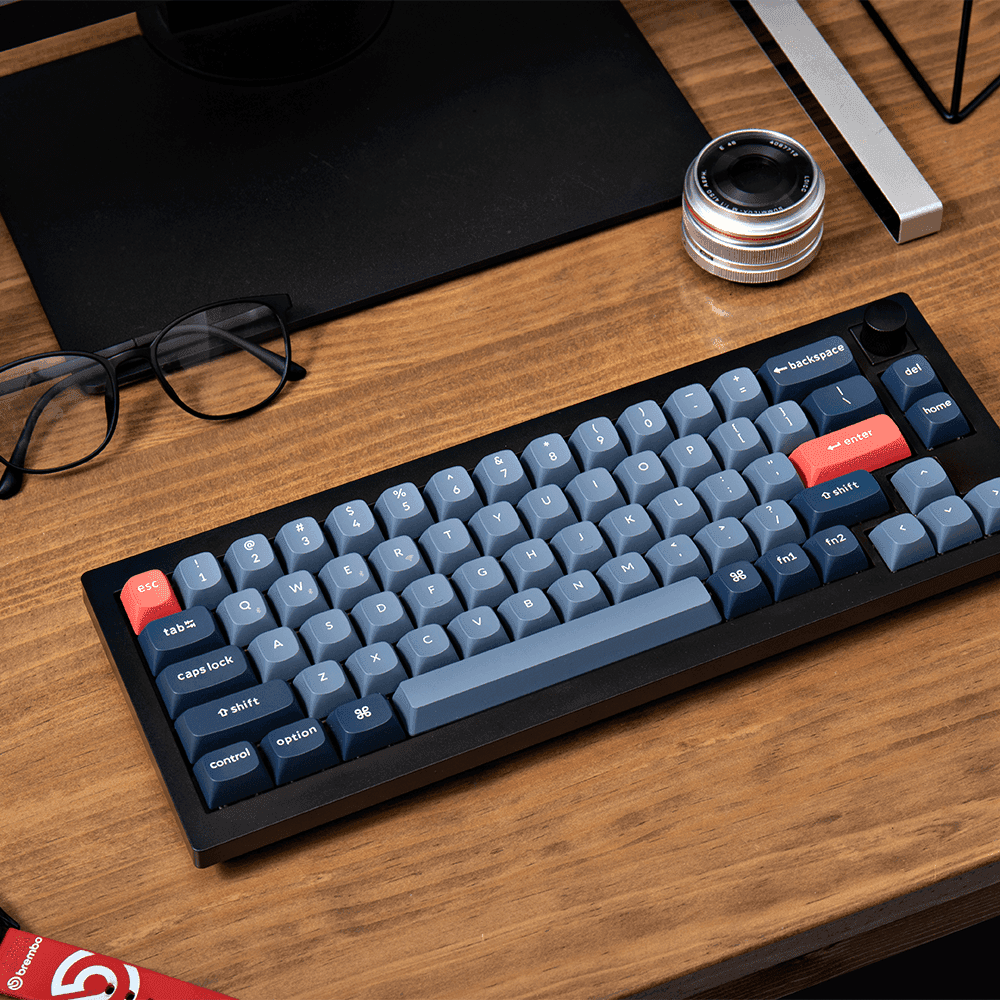

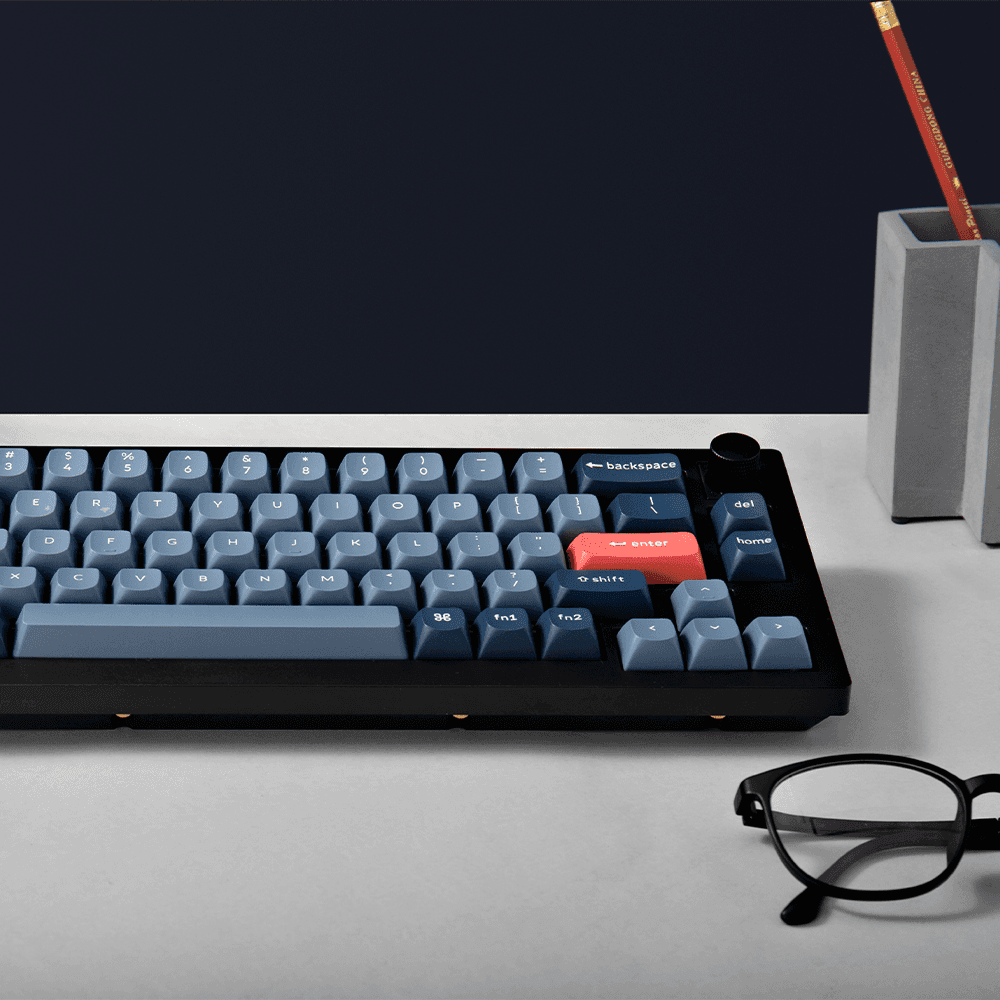

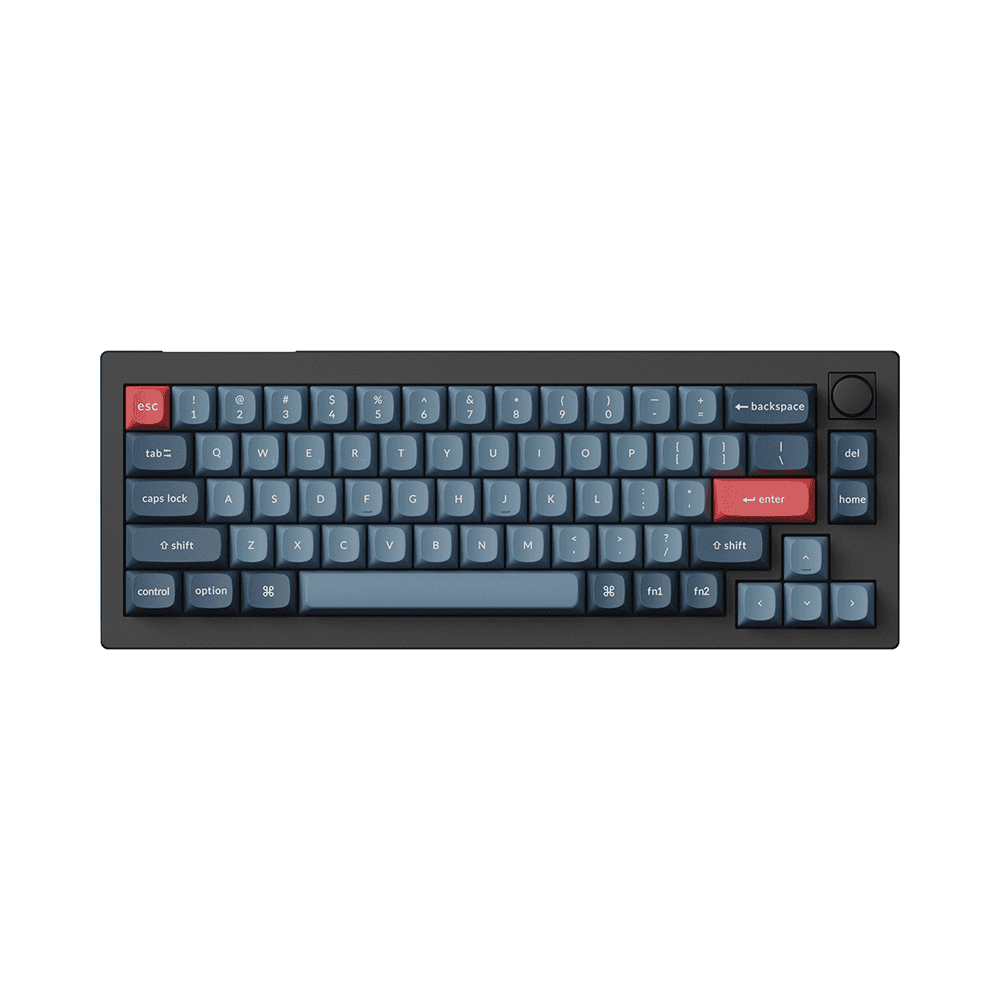

The Keychron V2 Max, with its ANSI layout, is a compact 65% keyboard featuring a modern custom keyboard design. It offers a hot-swappable platform, wireless connectivity (USB-C, 2.4 GHz radio, and Bluetooth), and supports firmware customization via QMK/VIA. The case utilizes a gasket-mount mechanism and a PC plate, resulting in a dampened and comfortable typing experience. With high-quality double-shot PBT keycaps (on the fully assembled version) and screw-in stabilizers, it offers a solid blend of everyday usability and modding capabilities.
Technical specifications:
-
Layout: ANSI (65%)
-
Connection: USB-C (wired), 2.4 GHz wireless + Bluetooth 5.1
-
Polling rate: up to 1000 Hz in wired and 2.4 GHz mode
-
Mounting type: Gasket mount with PC plate
-
Hot Swap: Compatible with 3-pin & 5-pin MX style switches
-
Keycaps: Double-Shot PBT (OSA profile) for fully assembled variant
-
Stabilization: Screw-in PCB stabs
-
Weight: approx. 696 g (fully assembled)
-
Height: Front approx. 23 mm, rear approx. 29.4 mm
-
Housing material: ABS plastic
-
Firmware: QMK & VIA compatible — full macro and layout customization possible
