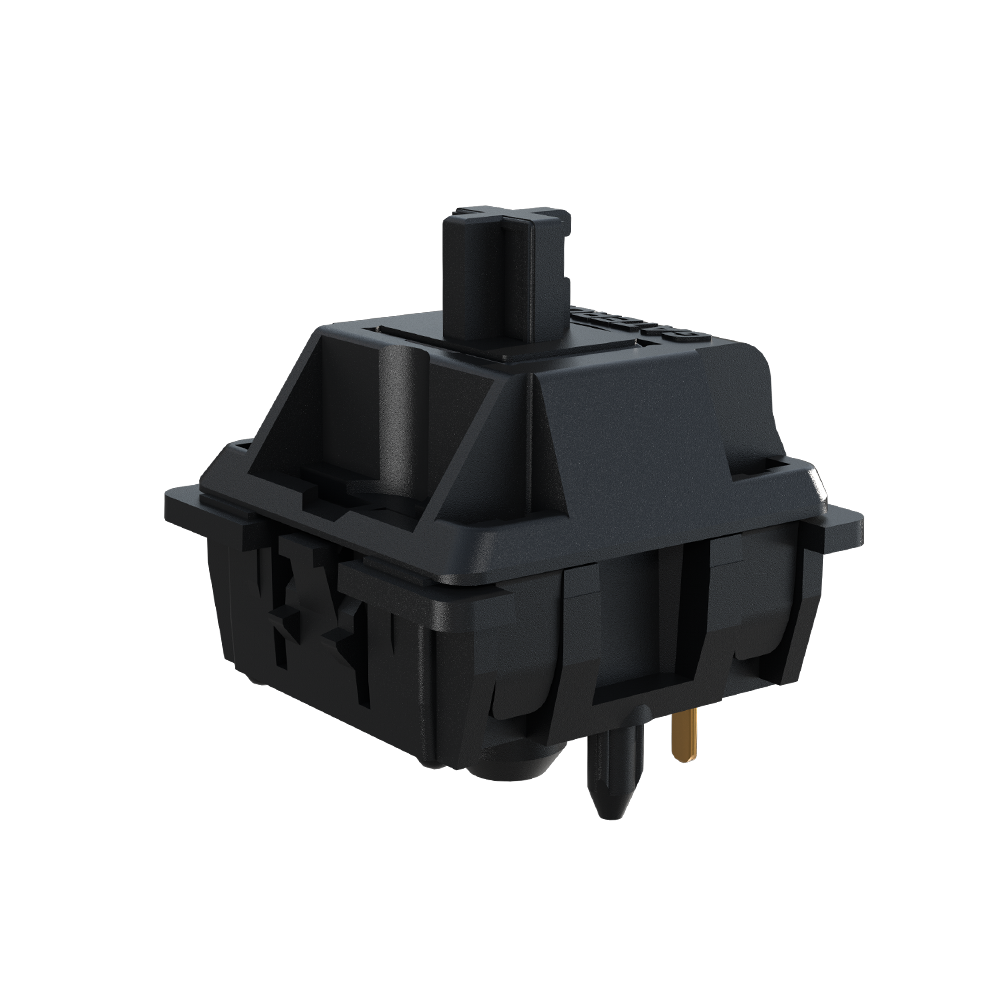

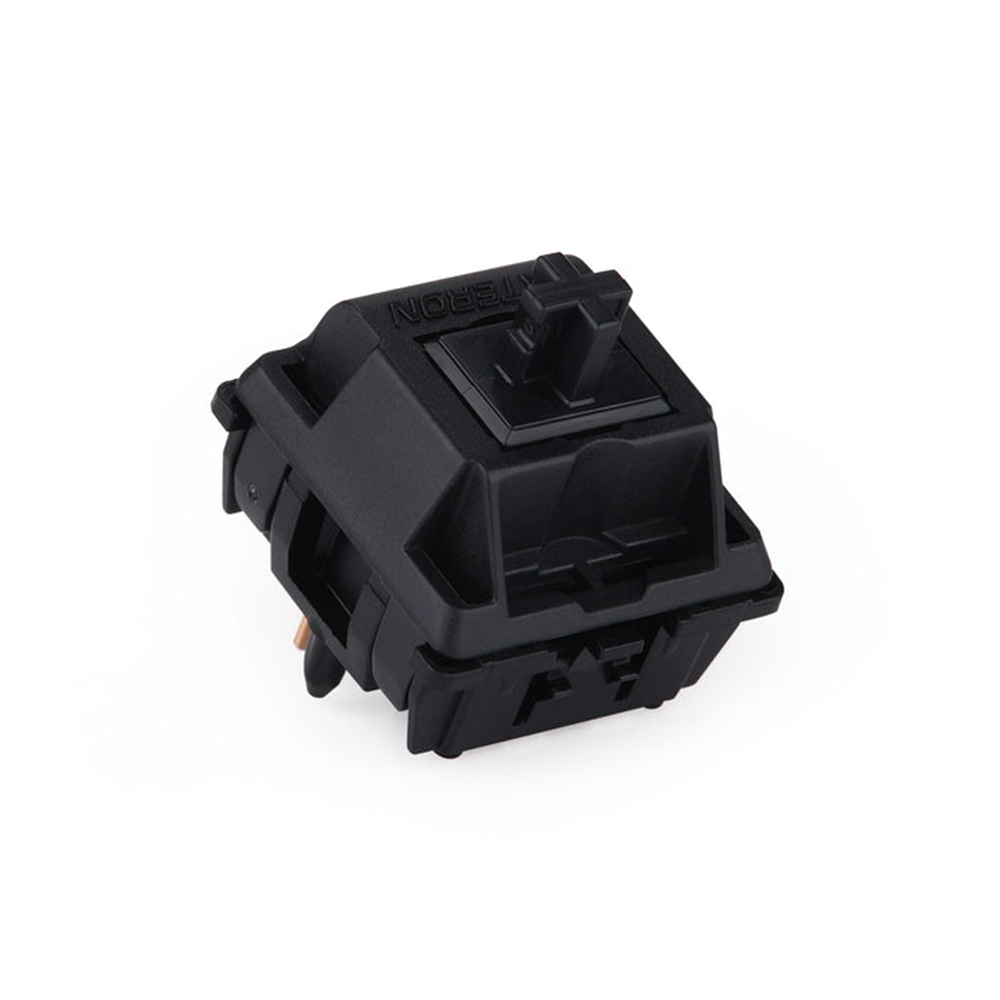

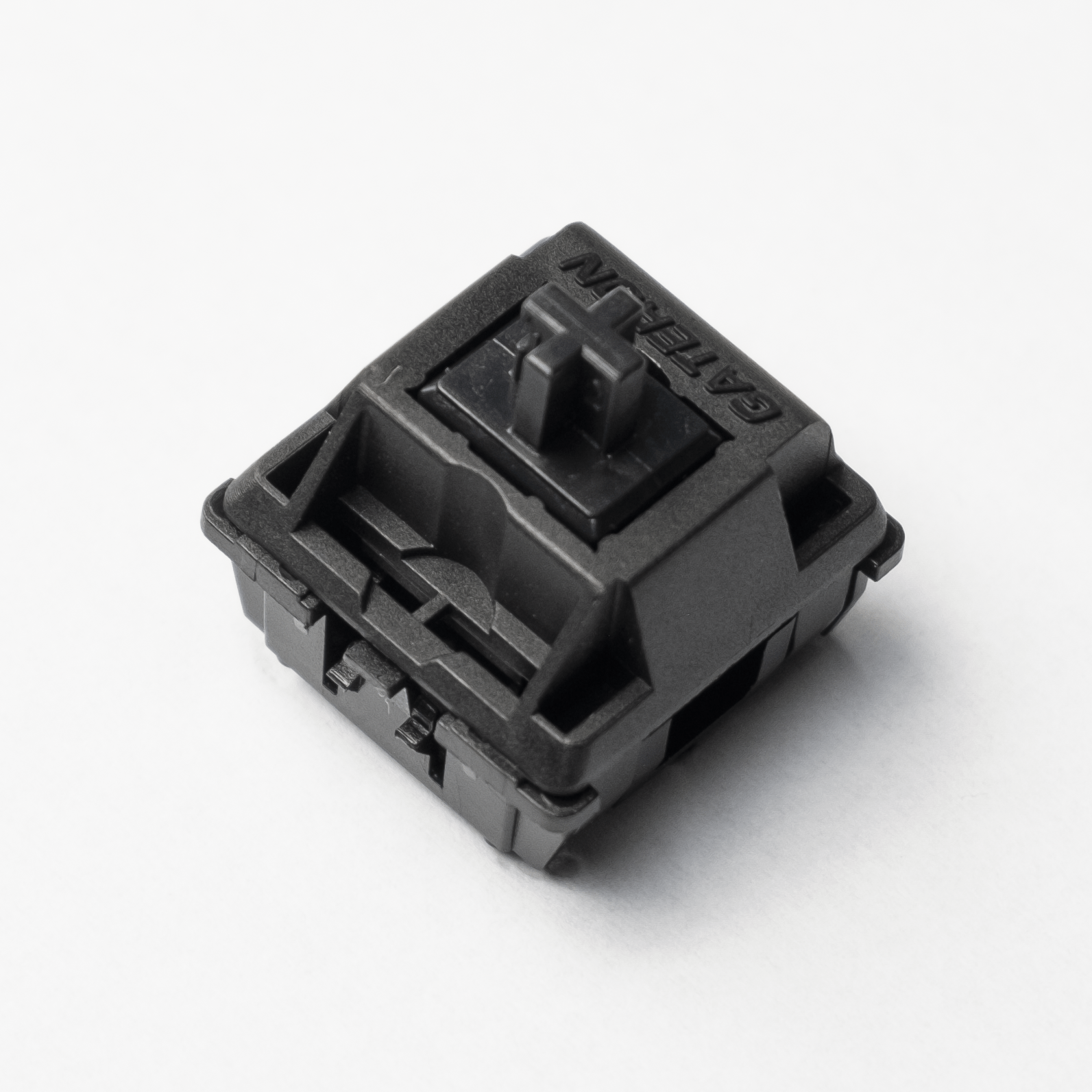

The Gateron Oil King Linear Switch is a high-quality, factory-lubricated linear switch specifically designed for mechanical keyboard enthusiasts seeking a smooth typing experience with a solid sound profile. According to the manufacturer, it offers a combination of robust mechanics (POM stem, nylon housing), pre-lubricated components, and a firmer spring tension – ideal for builds where solid response and a pleasant bottom-out feel are essential.
It has a comparatively deep ("thocky") sound and comes with materials that minimize stem wobble and allow for long-lasting use.
Technical specifications
-
Switch type: Linear
-

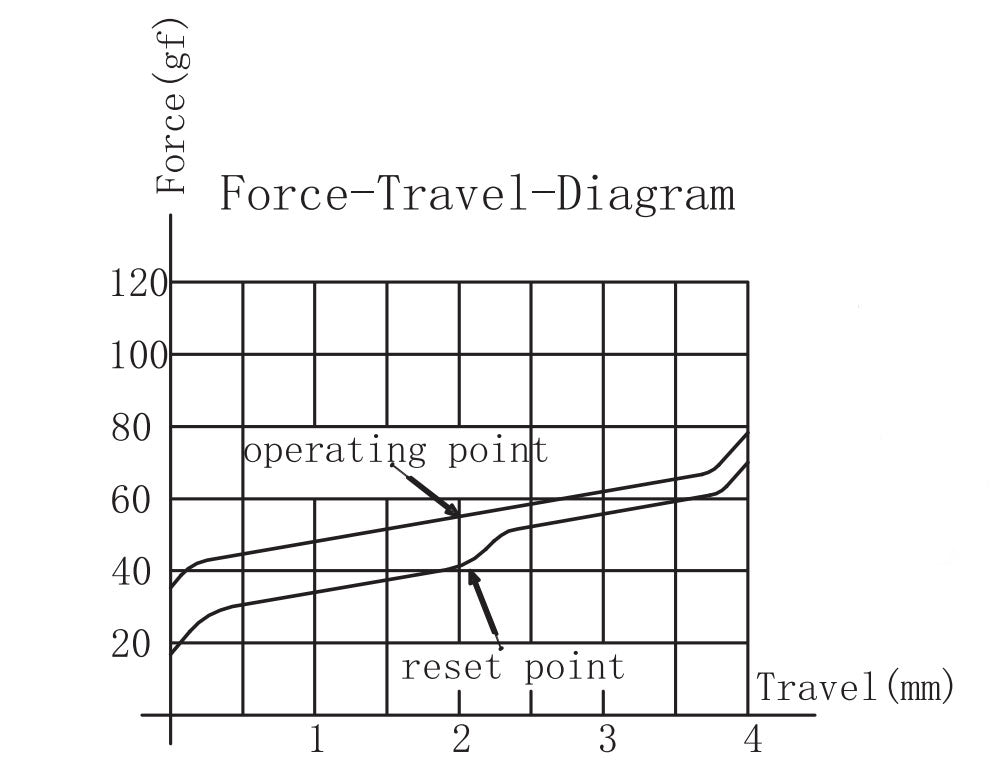

Actuation force: approx. 55 g
-
Bottom-out force: approx. 80 g
-
Trigger travel: 2.0 mm
-
Total stroke: 4.0 mm
-
Materials:
-
Upper housing: Nylon PA66
-
Lower housing: special "ink" material for improved sound
-
Stem: POM
-
-

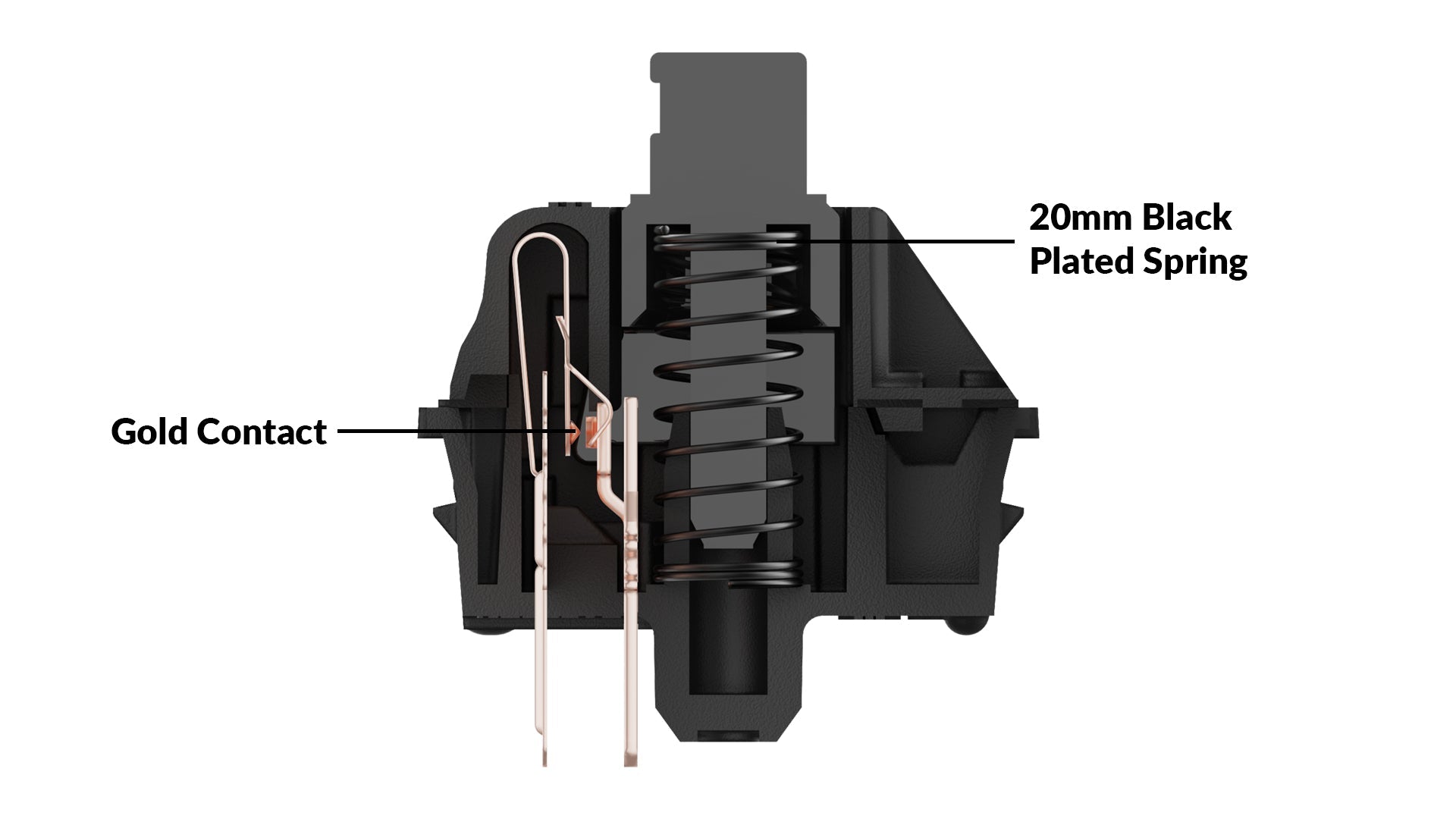

Spring: 20 mm spring steel for stronger rebound
-

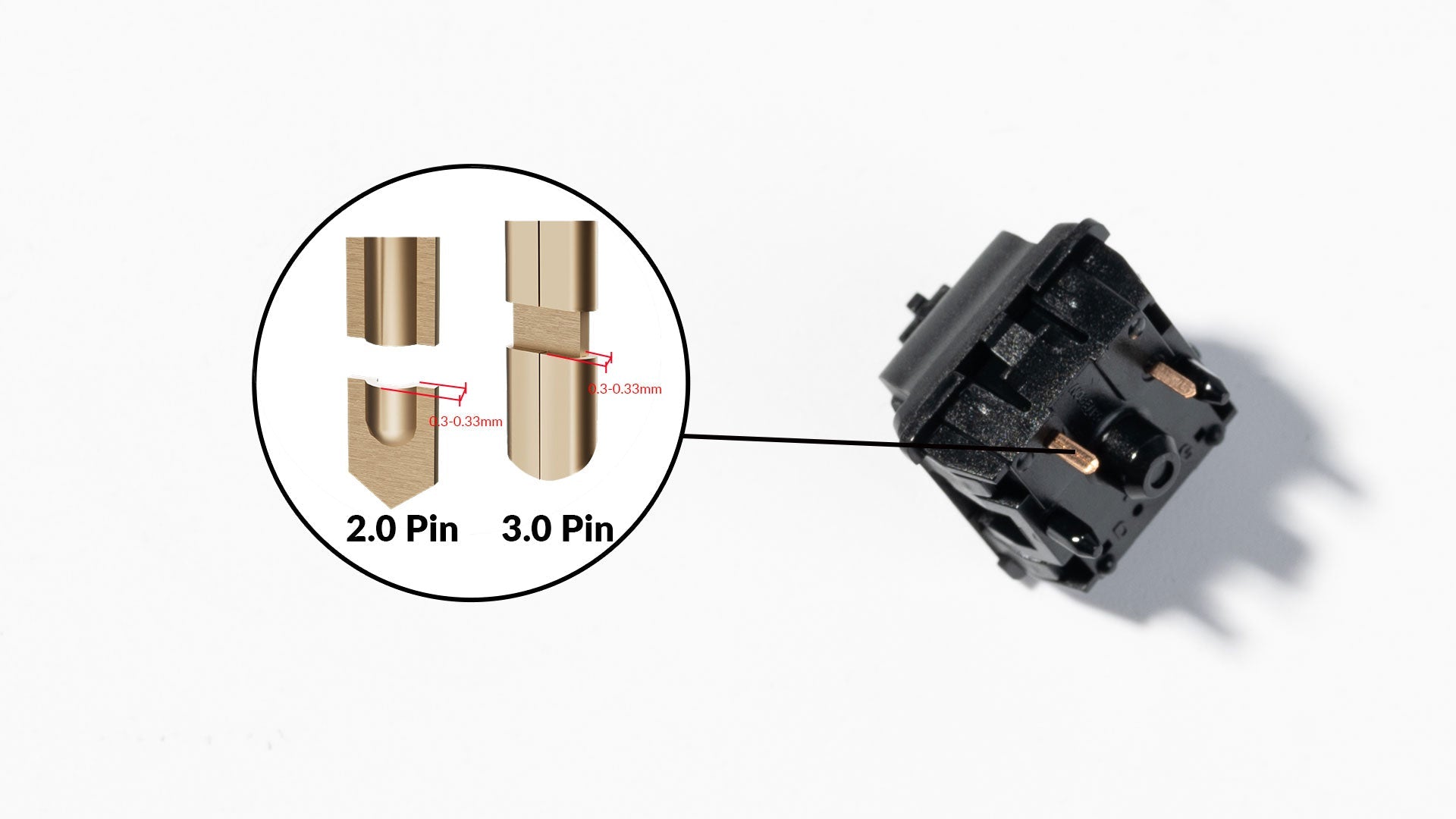

Pins: 5-pin (PCB mounting compatible, also for hot-swapping)
-
Lubrication: Pre-lubricated at the factory
-
Lifespan: Up to 60 million keystrokes
-
Special features: Deep sound ("thocky"), smooth operation, high-quality housing material
