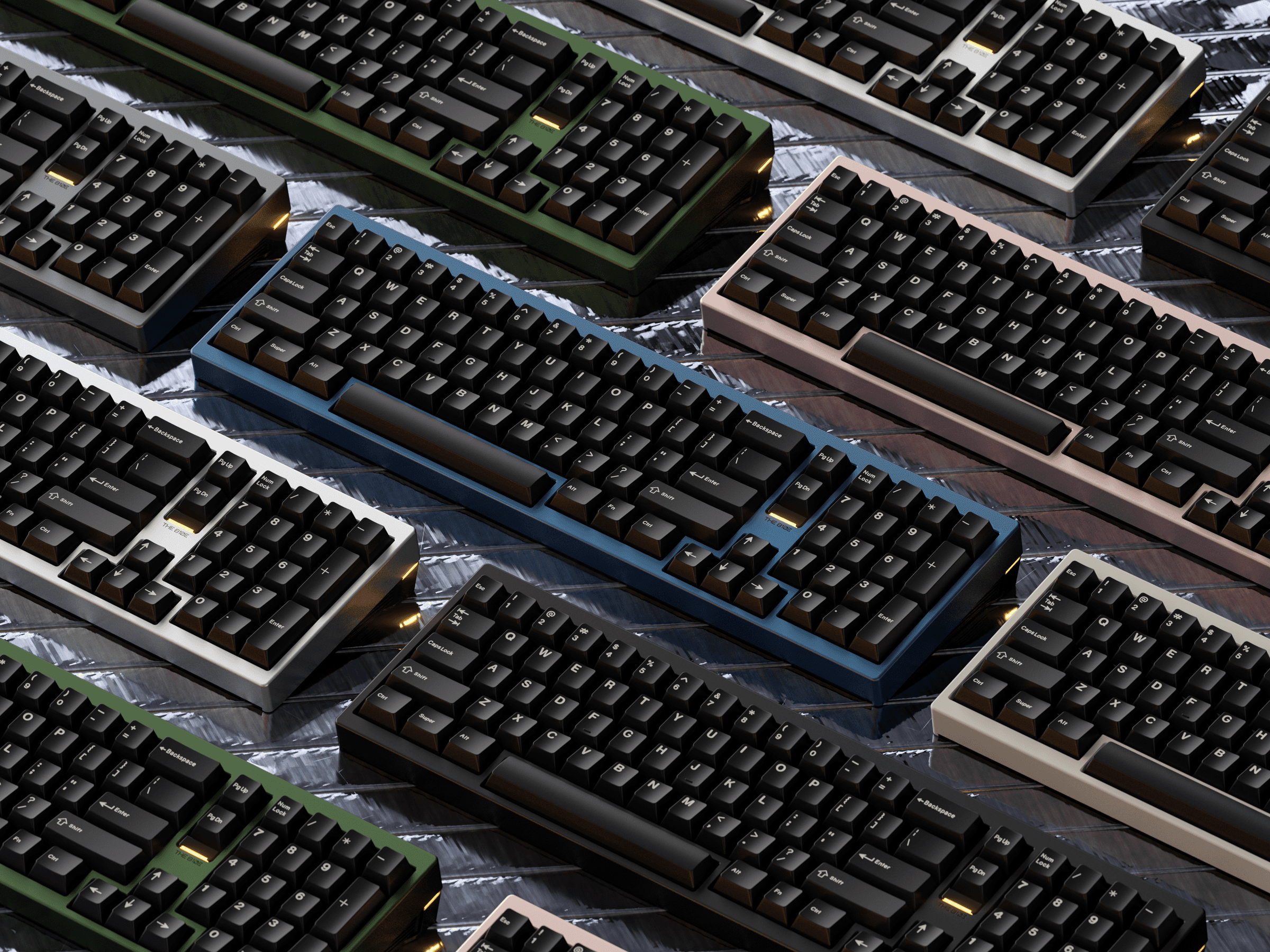

The NESON 810E Keyboard Kit is a high-end custom keyboard case characterized by its unique FRL-1800 (F-Row-Less) layout and a highly design-oriented, industrial aesthetic. By omitting the function key row, the board remains compact while still offering almost the full functionality of a classic full-size keyboard, including a numpad. A central design feature is the so-called "exploded" or isolated spacebar, which not only stands out visually but also influences acoustics and typing feel. The case is made of precisely CNC-milled aluminum and is designed for maximum customization – from various color options to interchangeable weights and badges.

Technical Specifications:

• Model: NESON 810E Keyboard Kit
• Layout: FRL 1800 (F-Row-Less full-size compact)

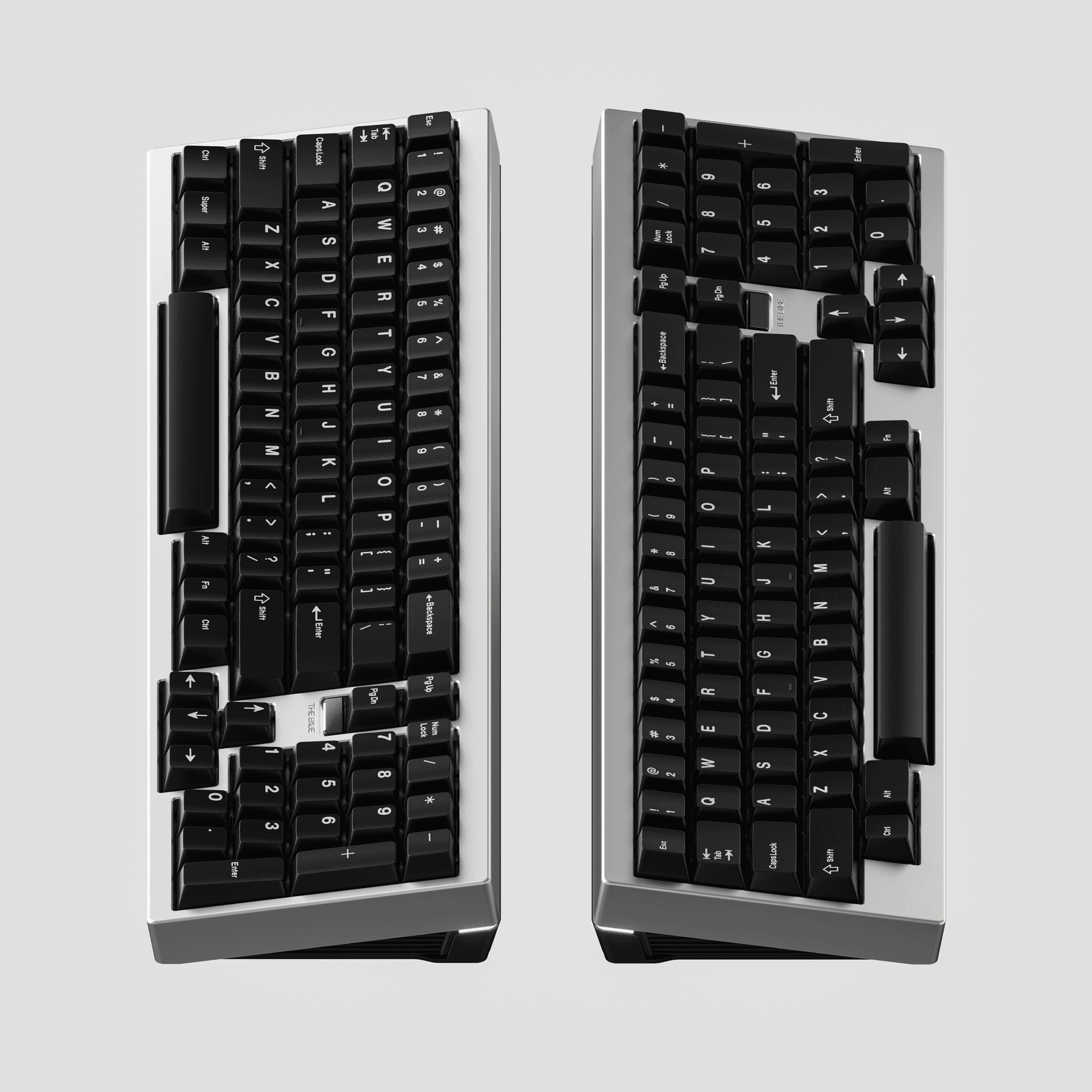

• Special Layout Feature: Isolated / "exploded" Spacebar
• Layout Options:
  • WK (Standard Windows Layout)
  • HHKB (Blocker Layout)
• PCB Options:
  • Hot-Swap PCB (for tool-free switch replacement)
  • Solder PCB (for maximum layout flexibility)
• Case Material: CNC-milled aluminum (Top & Bottom Case)
• Design: Industrial, angular design with clean lines
• Color Variants:
  • Black, Silver, Grey, Green, Blue, Champagne, Cream
• Mounting System:
  • Isolation/gasket-based construction (typical for high-end custom kits)
• Plate Options:
  • Various materials depending on the kit (e.g., aluminum, FR4, PC – configuration-dependent)
• Weight System:
  • Internal weights
  • External weights (e.g., stainless steel / PVD, model-dependent)
• Badge System: Interchangeable badge elements (Customizable Design)
• Construction: Multi-part case with screwed construction
• Connectivity: Wired (USB-C, depending on PCB)
• Firmware: QMK / VIA compatible (typical for custom PCBs)
• Target Audience: Enthusiasts, high-end custom builds
• Scope of Delivery:
  • Case (Top + Bottom)
  • PCB (depending on selection)
  • Plate
  • Weights (internal/external depending on variant)
  • Badge(s)
  • Mounting materials (screws, gaskets, etc.)
  • Note: Switches & Keycaps not included

The 810E stands out particularly due to its unusual layout combination and its focus on customization. It is not intended as a "mainstream" keyboard, but rather as a platform for high-quality custom builds where sound profile, flex, and design can be precisely tuned. Therefore, in the enthusiast scene, it is particularly interesting for users looking for a rare layout with maximum adaptability and a striking aesthetic.
