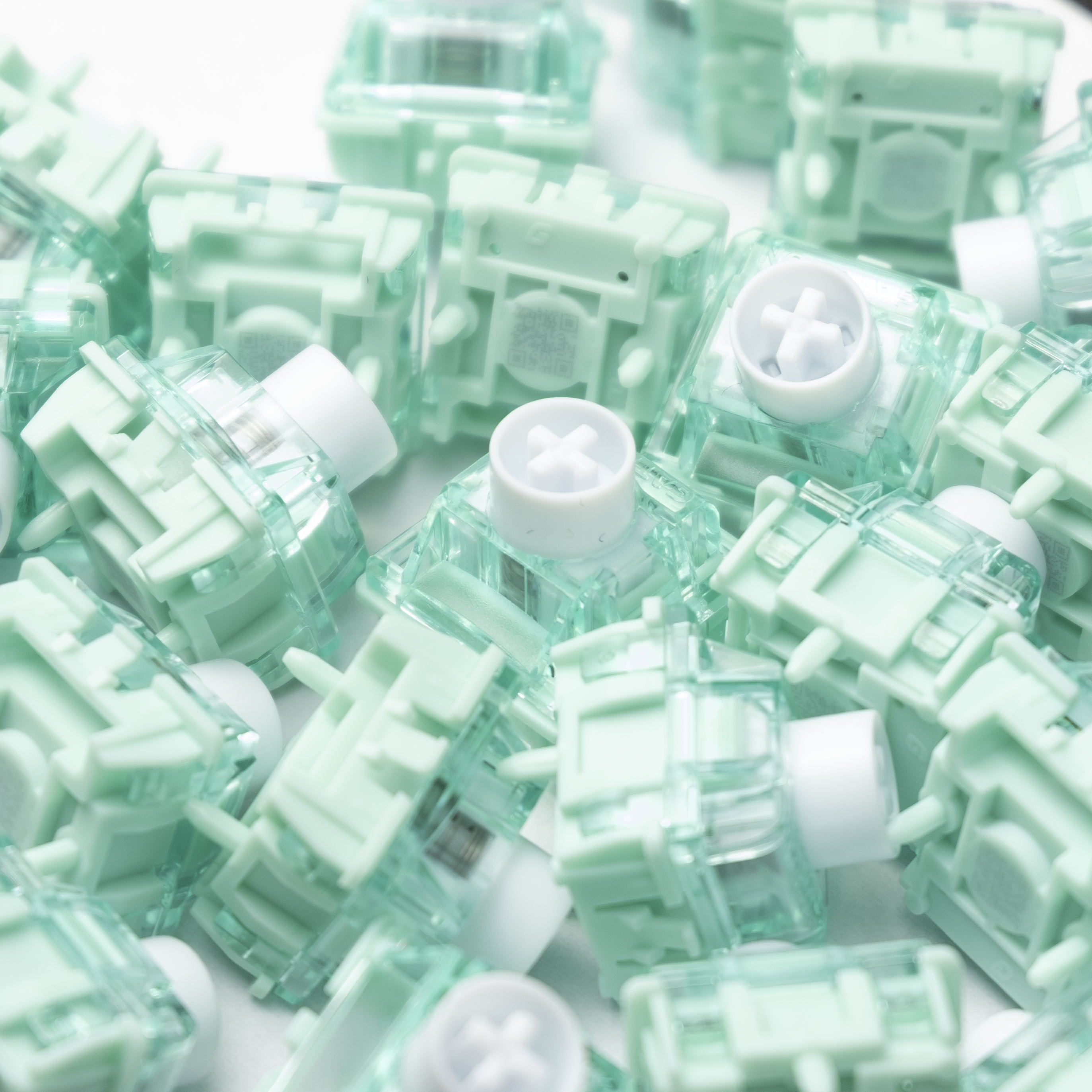

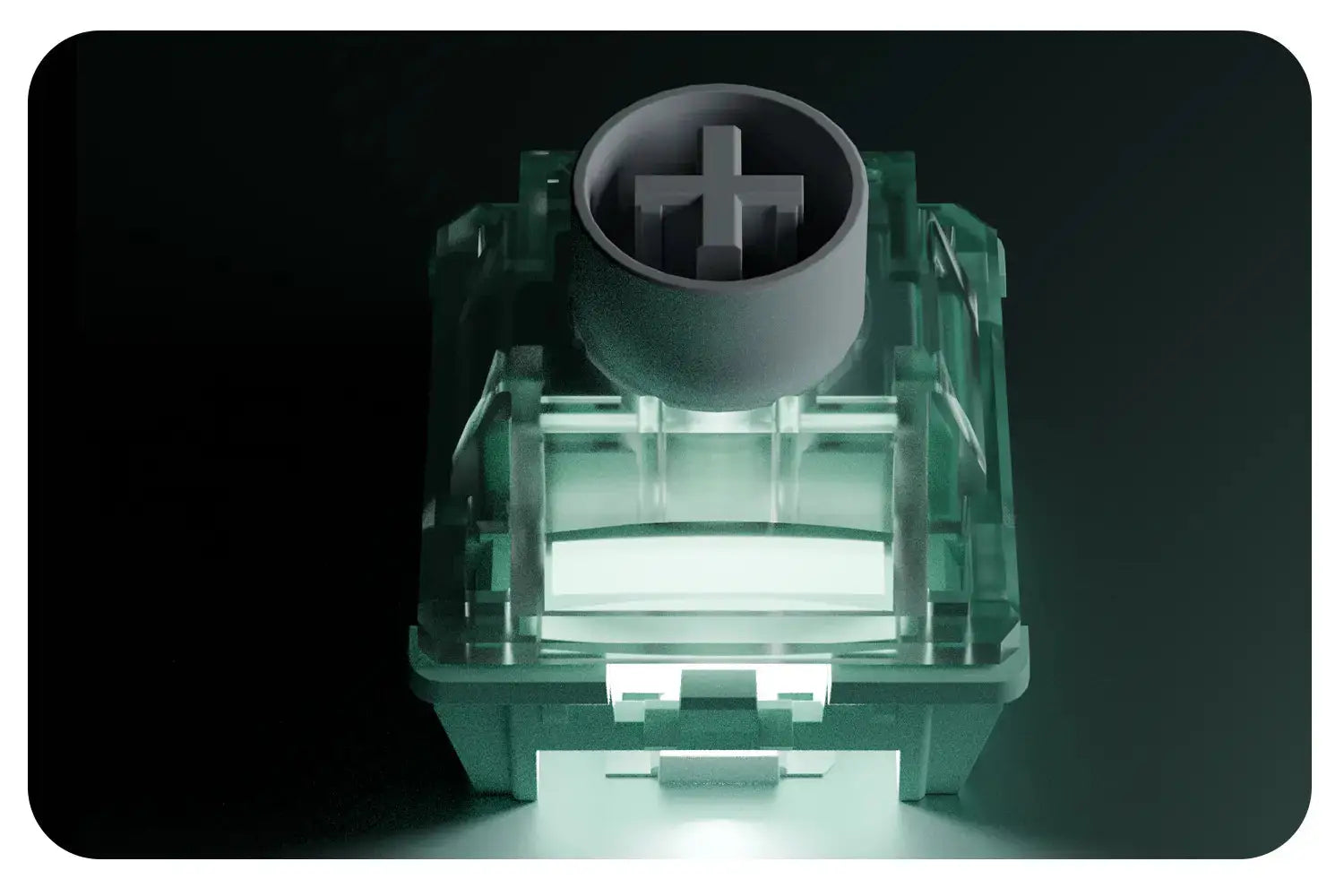

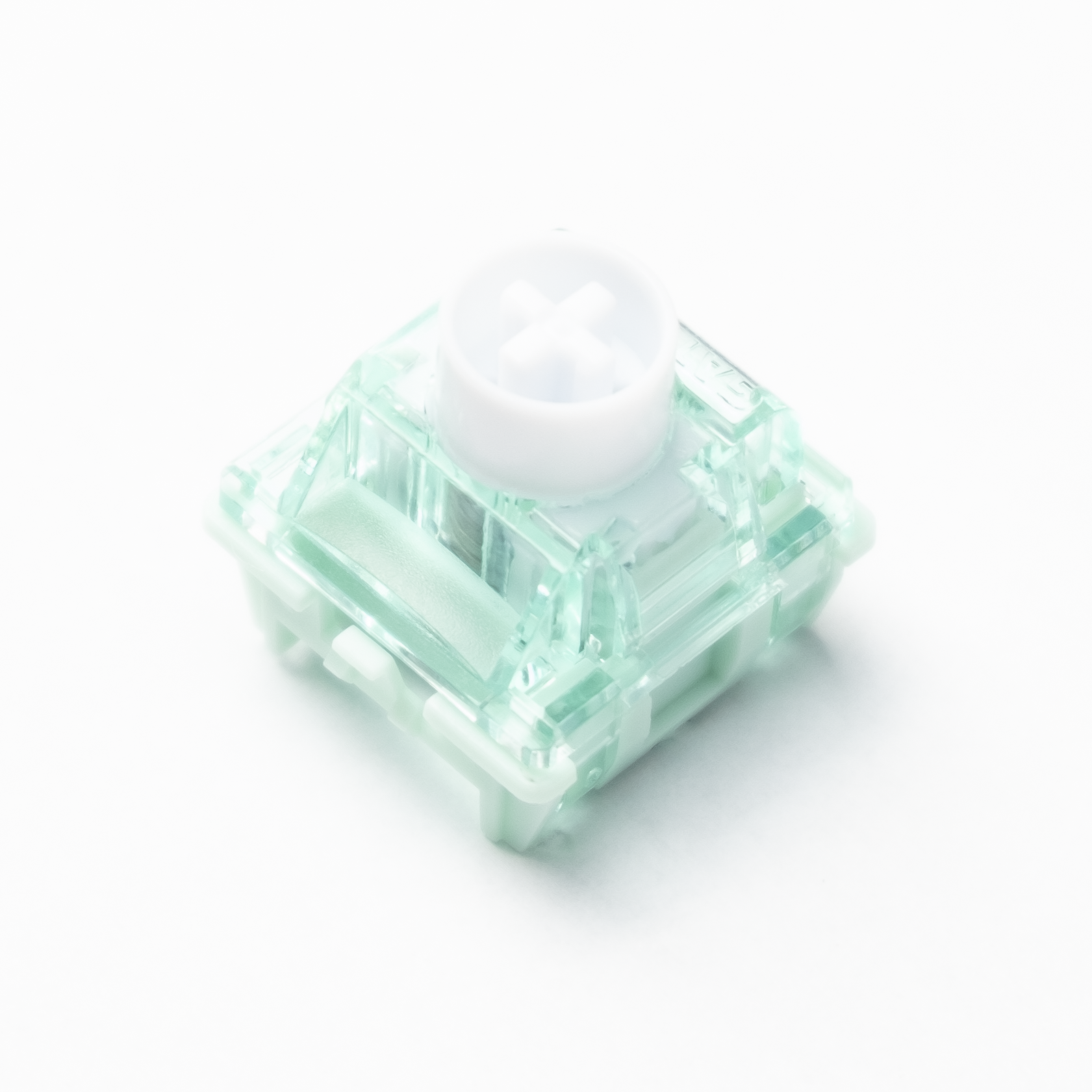

The Gateron Magnetic Jade Ultra HE Switch is a magnetically actuated Hall-effect switch specifically designed for mechanical keyboards with magnetic PCB layouts (Hall-effect keyboards). Part of Gateron's Magnetic Jade series, it combines a linear actuation characteristic with a dual-drive modular structure, ensuring exceptional stability and consistency. Integrated permanent magnets enable contactless actuation, resulting in highly precise input, reduced wear, and consistent performance throughout its lifespan. The semi-transparent Jade finish promotes even RGB backlighting, while factory lubrication ensures an exceptionally smooth and quiet typing experience. This switch is ideal for enthusiasts seeking to combine modern Hall-effect technology with high stability and fine-tuning.

Technical specifications:

• Switch type: Hall-effect magnetic linear switch

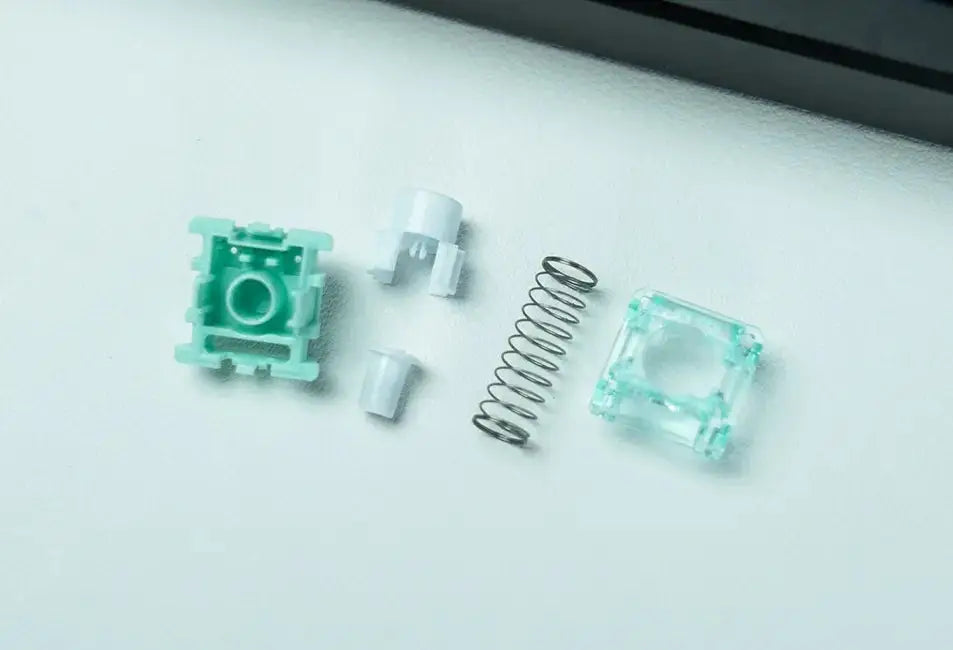

• Magnet technology: Dual-drive modular magnet architecture

• Initial actuation force: approx. 30 ± 5 gf

• Bottom-out force: approx. 40 ± 10 gf

• Total Travel: approx. 3.2 ± 0.1 mm

• Magnetic flux: approx. 122 ± 8 GS (initial, at 1.2 mm PCB), approx. 550 ± 30 GS (bottom-out)

• Pre-travel: Magnetically adjustable (depending on the keyboard)

• Lubrication: Factory lubricated

• Tactile sensation: Linear, without tactile feedback or click.

• Lifespan: Very long thanks to contactless Hall-effect technology

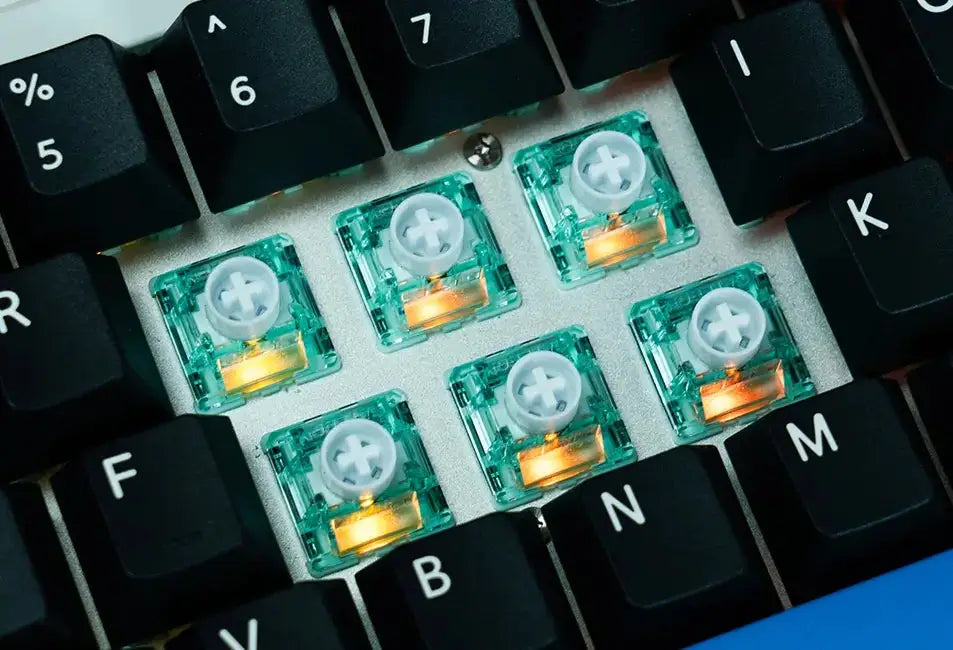

• Compatibility: Hall-effect keyboards with matching magnetic PCB orientation

• Case: Semi-transparent jade color

• RGB support: Yes, with even light distribution.

• Special features:

  • Contactless magnetic triggering

  • Very consistent actuation across the entire stroke

  • Improved stability and acoustics through dual-drive design
