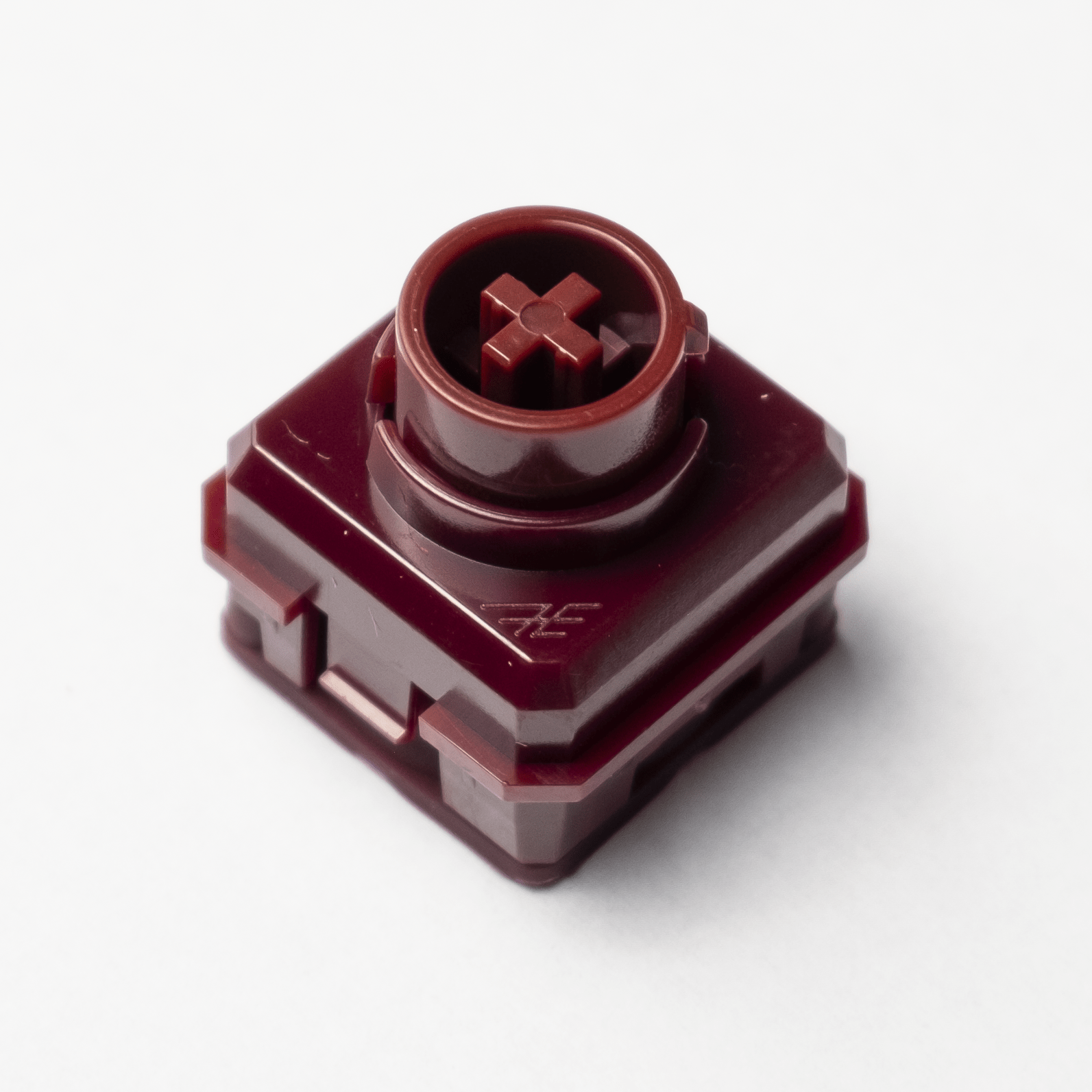

The Raeds HE switches from AEBoards are an innovative combination of Hall-effect technology and a rubber dome mechanism. Instead of a traditional spring switch, they utilize a silicone dome that provides a soft, linear typing feel—paired with the durable and contactless actuation of a magnetic Hall-effect sensor. The housing is designed in the MX footprint, so classic MX keycaps will fit, but only HE-compatible PCBs may be used (not standard Cherry MX PCBs).

Technical specifications

• Design: Linear Hall-effect switch with rubber dome mechanism

• Trigger pressure (dome): approx. 45 g (linear dome)

• Total travel: approx. 3.9 mm ± 0.2 mm

• Magnetic flux at rest (initial magnetic flux): approx. 100 ± 15 Gs

• Magnetic flux at full stroke (bottom position): approx. 900 ± 15 Gs

• Compatibility: MX footprint, MX stem compatible (keycaps)

• Note regarding the PCB: Only HE (Hall Effect) PCBs are compatible, not compatible with regular MX PCBs.

• Housing material: Top and bottom housing (e.g., nylon/PC)

• Package size: typically 35 pieces per package
