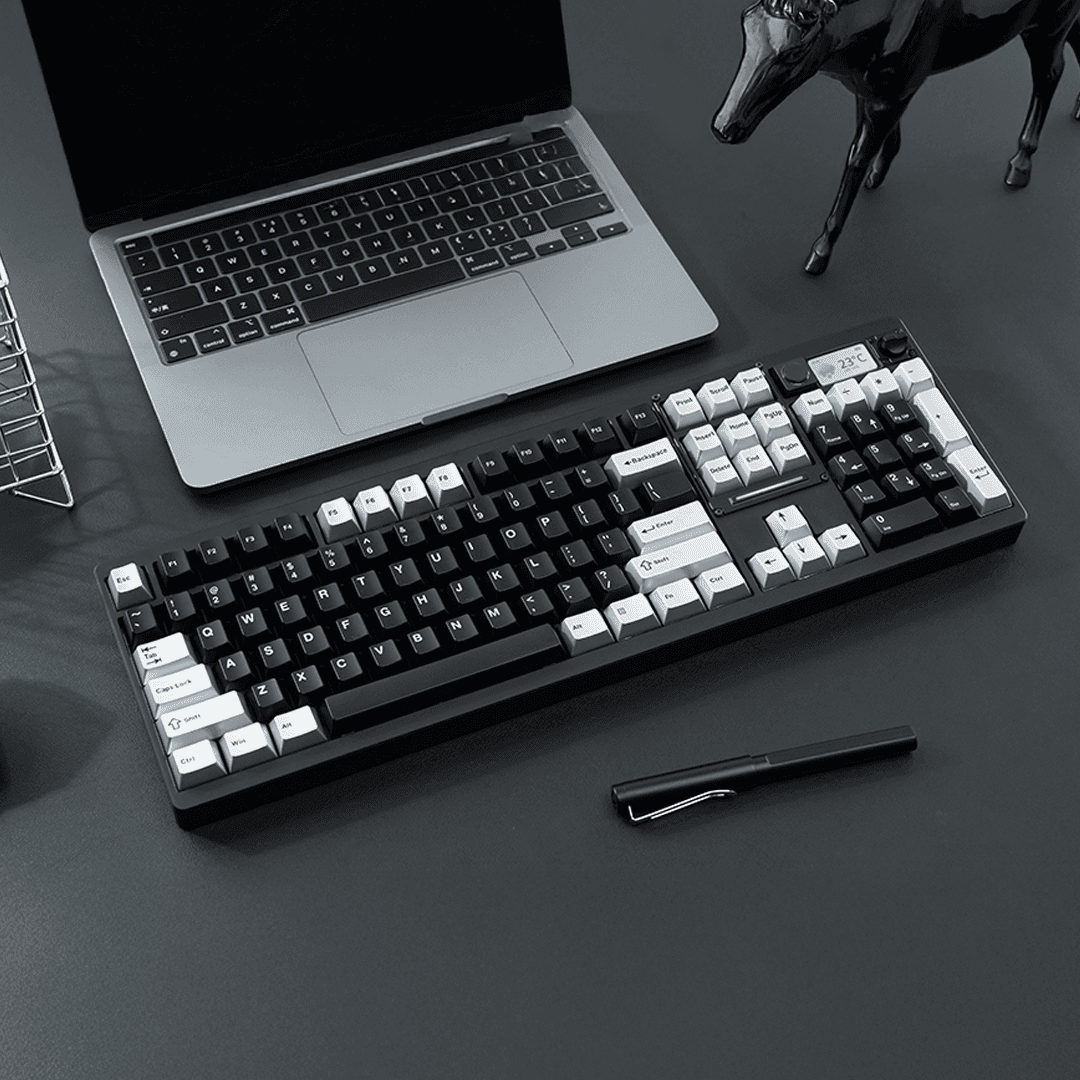

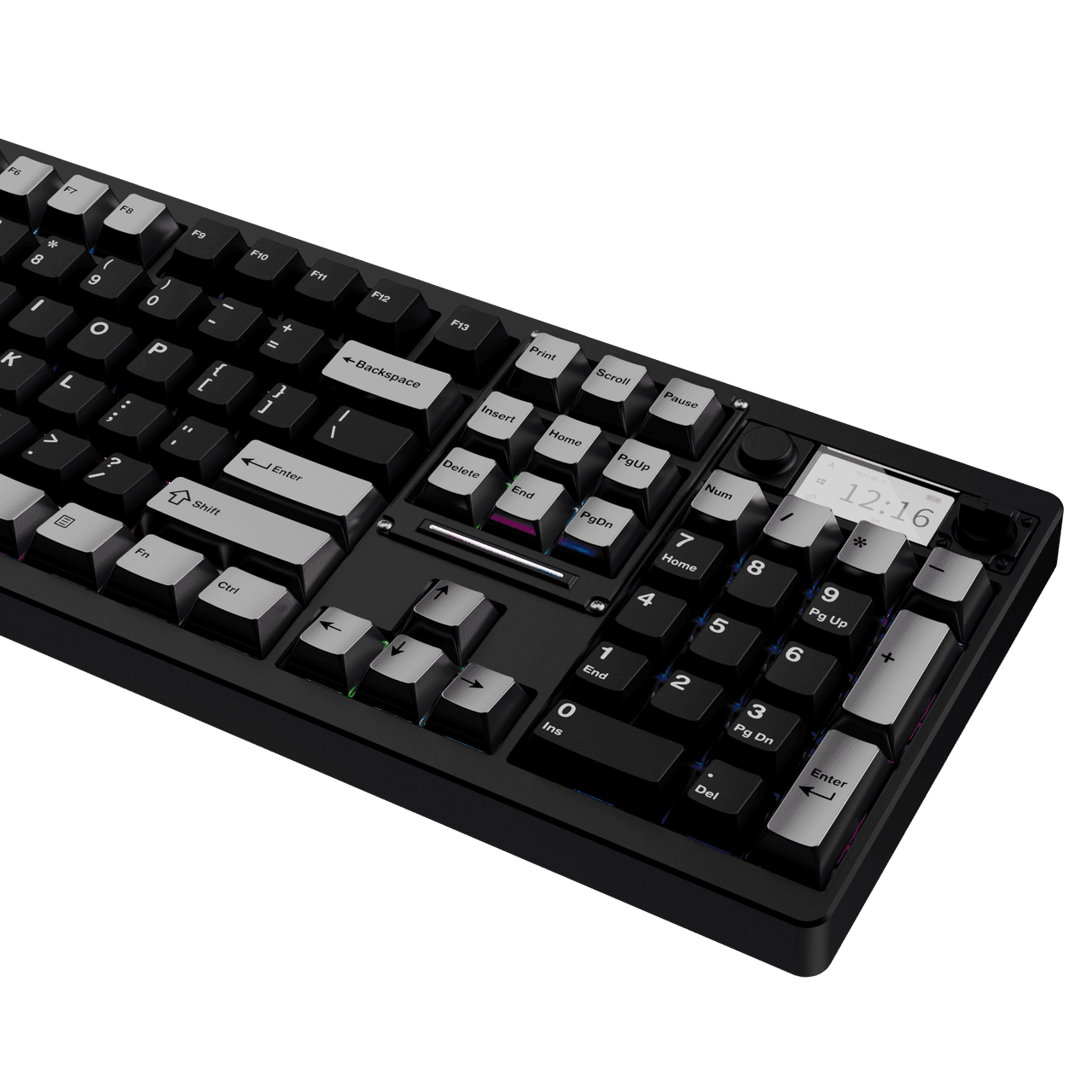

The ChilKey ND104 in black is a sophisticated full-size keyboard that combines design, functionality, and premium materials. It's aimed at users seeking a versatile all-in-one setup – whether for work, gaming, or creative applications. Features such as an integrated screen, a dial, and extensive damping and layout options make it a particularly well-equipped keyboard in the enthusiast segment.

Technical specifications

• Layout: 104% full screen, approx. 106 keys

• Color variant: Shadow Black (anodized aluminum case)

• Housing material: Aluminum alloy 6063 with anodizing or "Acustatic" electrostatic finish

• Connections and modes: Tri-mode connection – USB-C (wired), Bluetooth 5.4, 2.4 GHz wireless

• Polling rate/latency: Cable and 2.4 GHz mode: 1000 Hz; Bluetooth mode: approx. 133 Hz; USB latency approx. 5.88 ms; 2.4G approx. 8.37 ms; BLE approx. 12 ms

• Plate: FR4 gold immersion plate, thickness selectable: 1.2 mm or 1.6 mm

• Mounting: Hot-swap PCB (MX-style switches can be replaced without soldering)

• Keycap stabilizers: Plate-mounted steel stabilizers integrated

• Damping: Five layers of acoustic damping (including plate foam, switch foam, PET acoustic pads, housing foam)

• Battery: 4000mAh × 2 = 8000mAh total

• Dimensions (L × W × H): approx. 437.6 × 140.1 × 34.4 mm

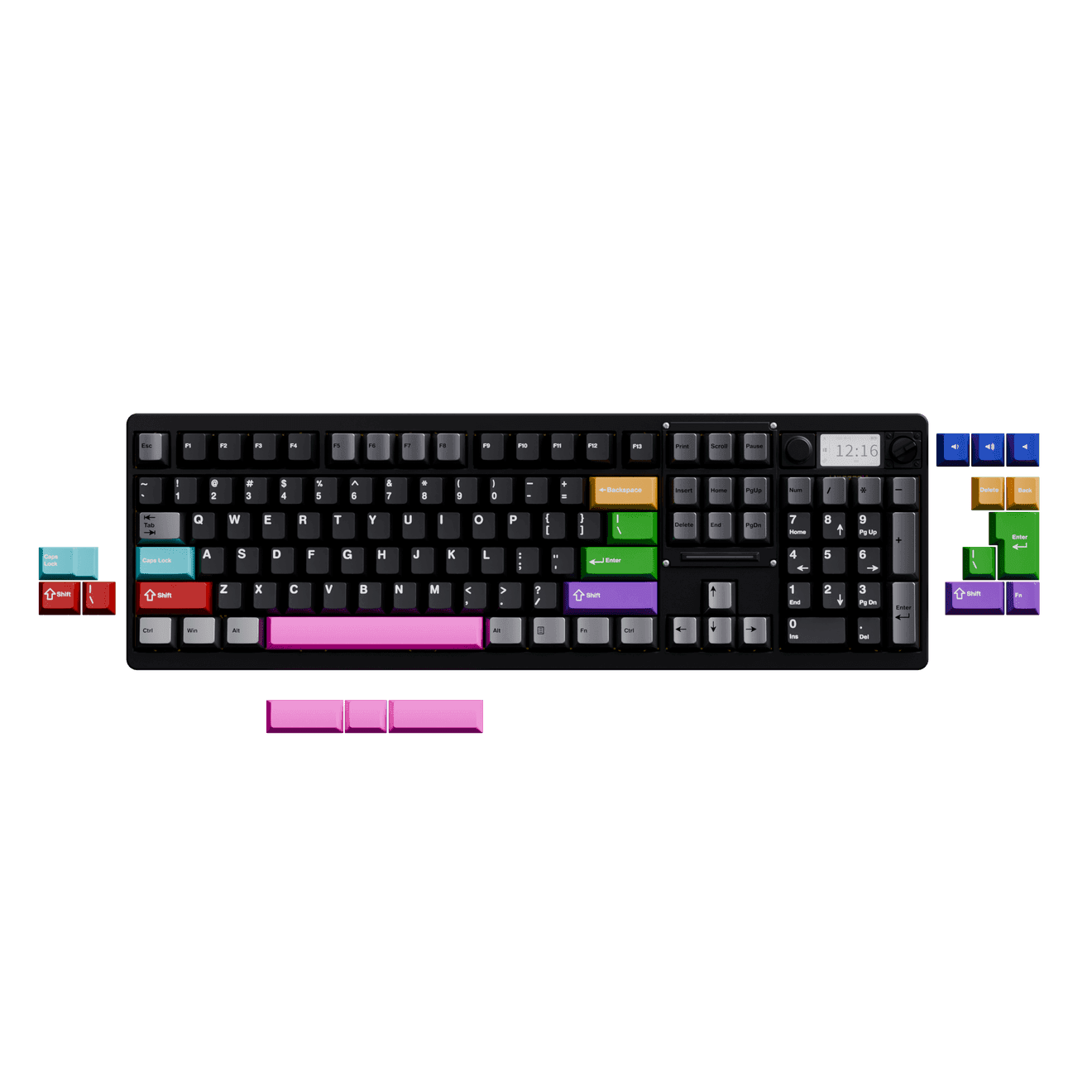

• Layout support: Factory-set ANSI, PCB also supports ISO – for ISO version, the required board can be selected separately.

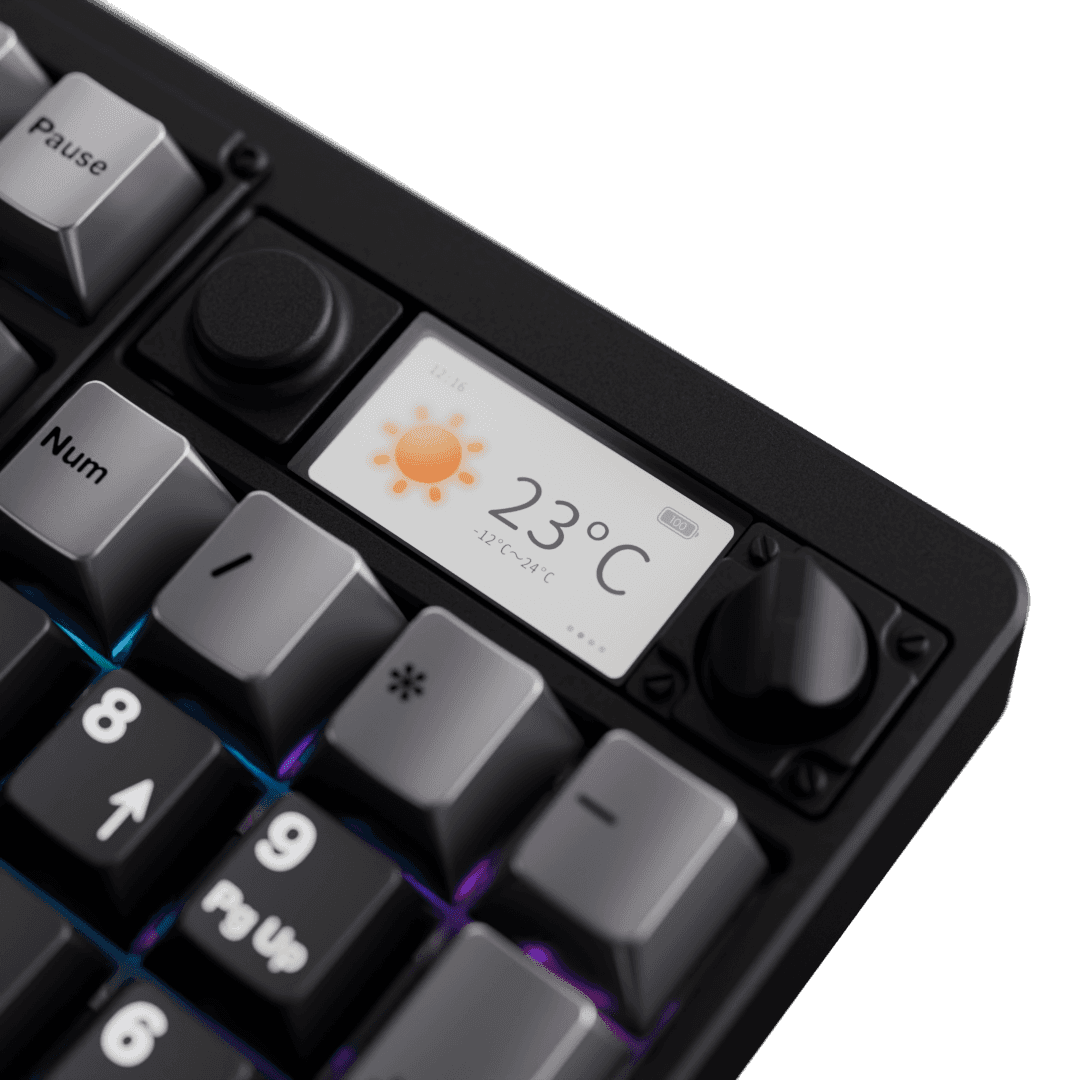

• Functional display: Integrated screen with modes for calculator function, time, weather display; rotary knob for volume/media control

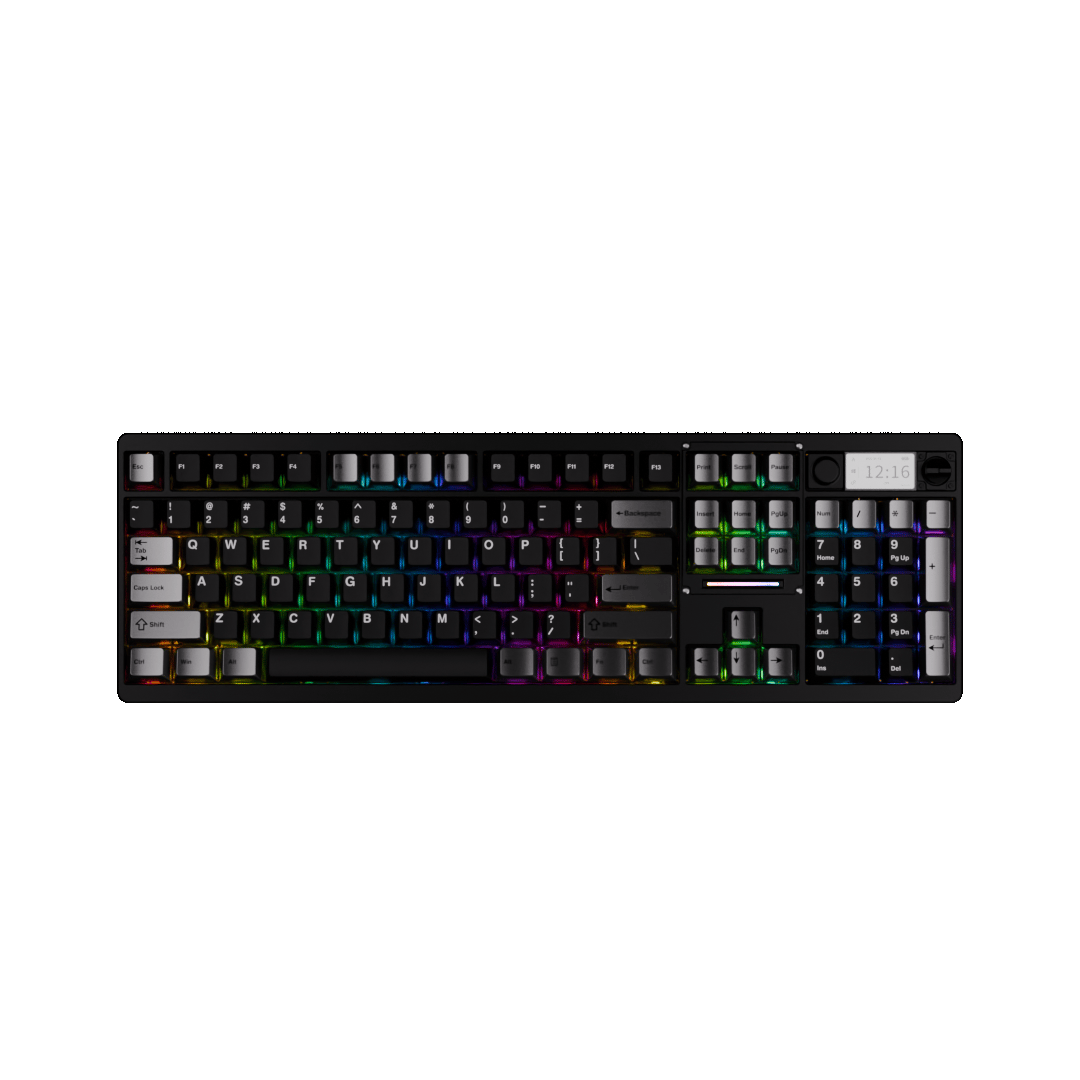

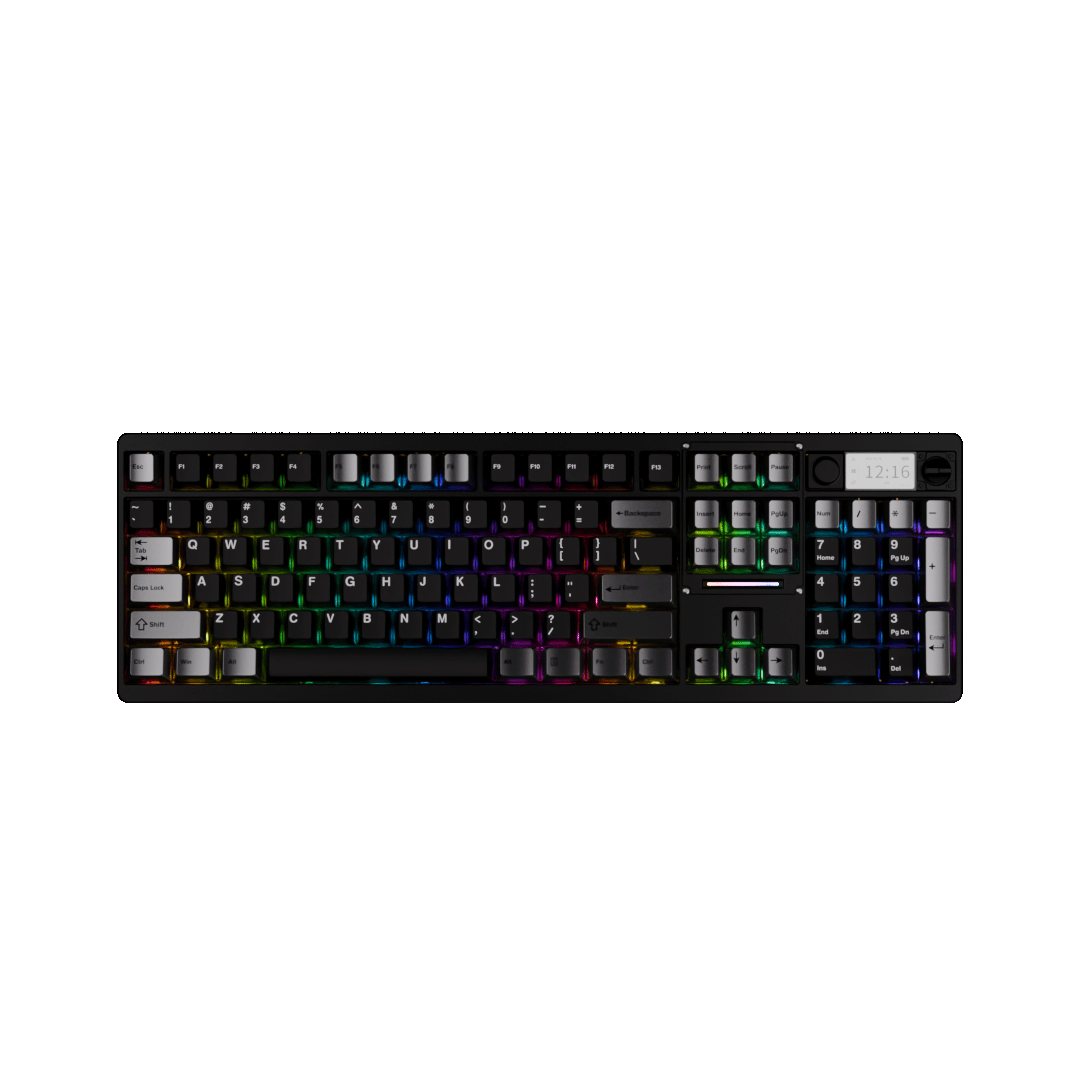

• Backlighting: RGB backlight, light extends between the keys ("surround lighting effect")

• Compatibility: Windows, macOS, Linux & Android

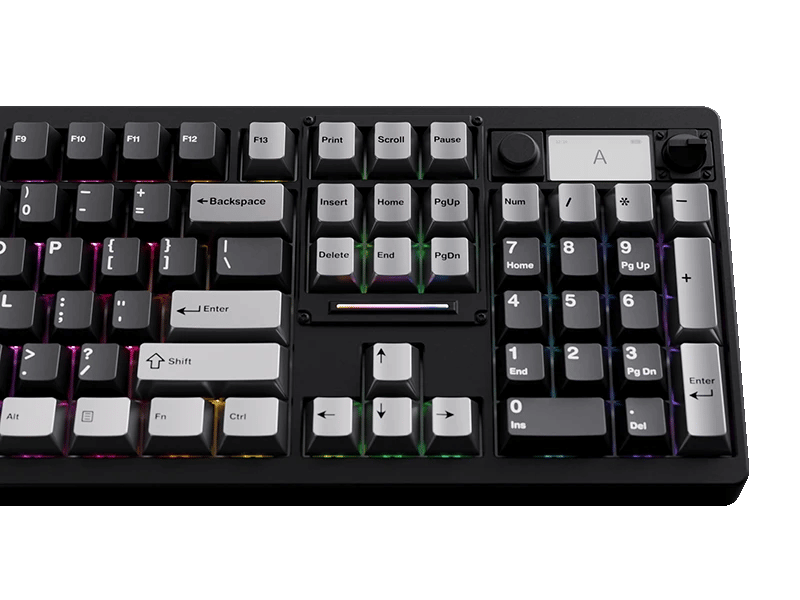

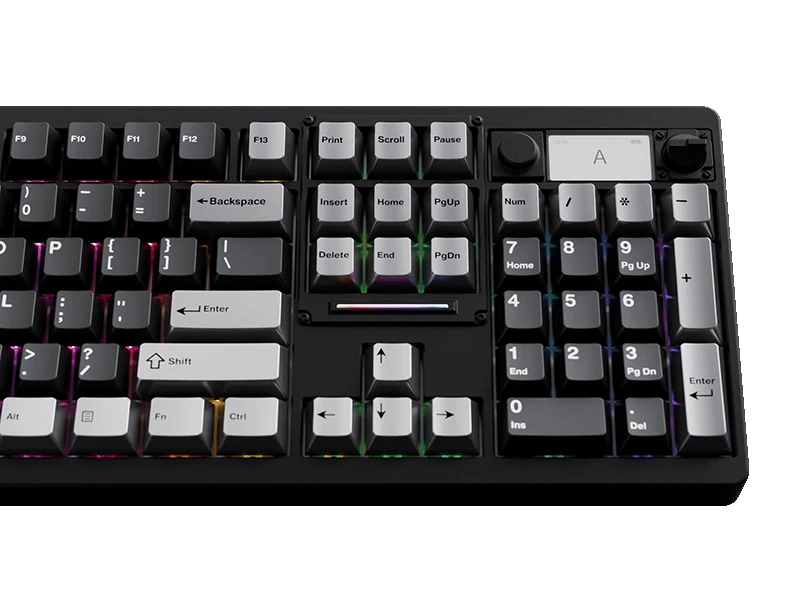

Display & Control

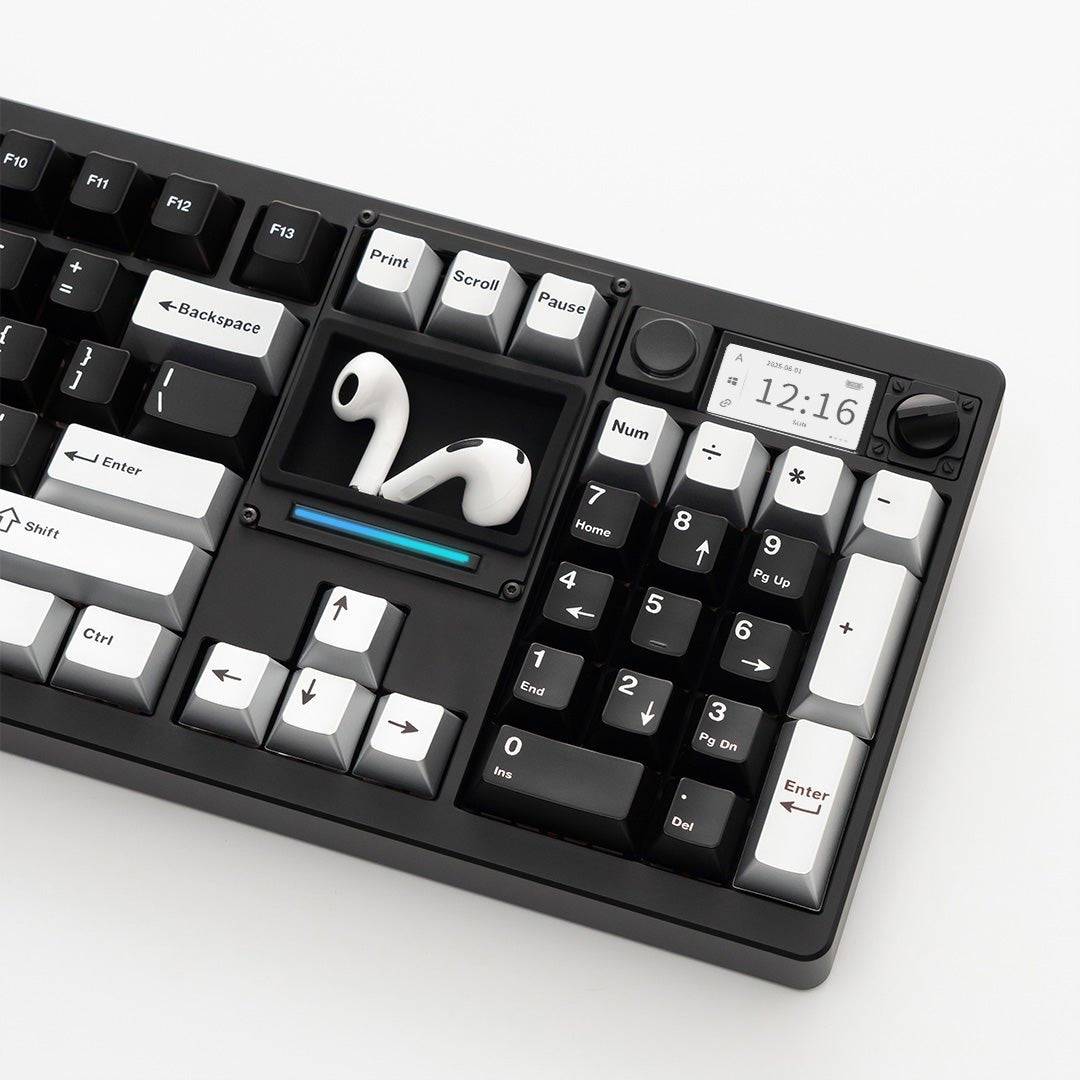

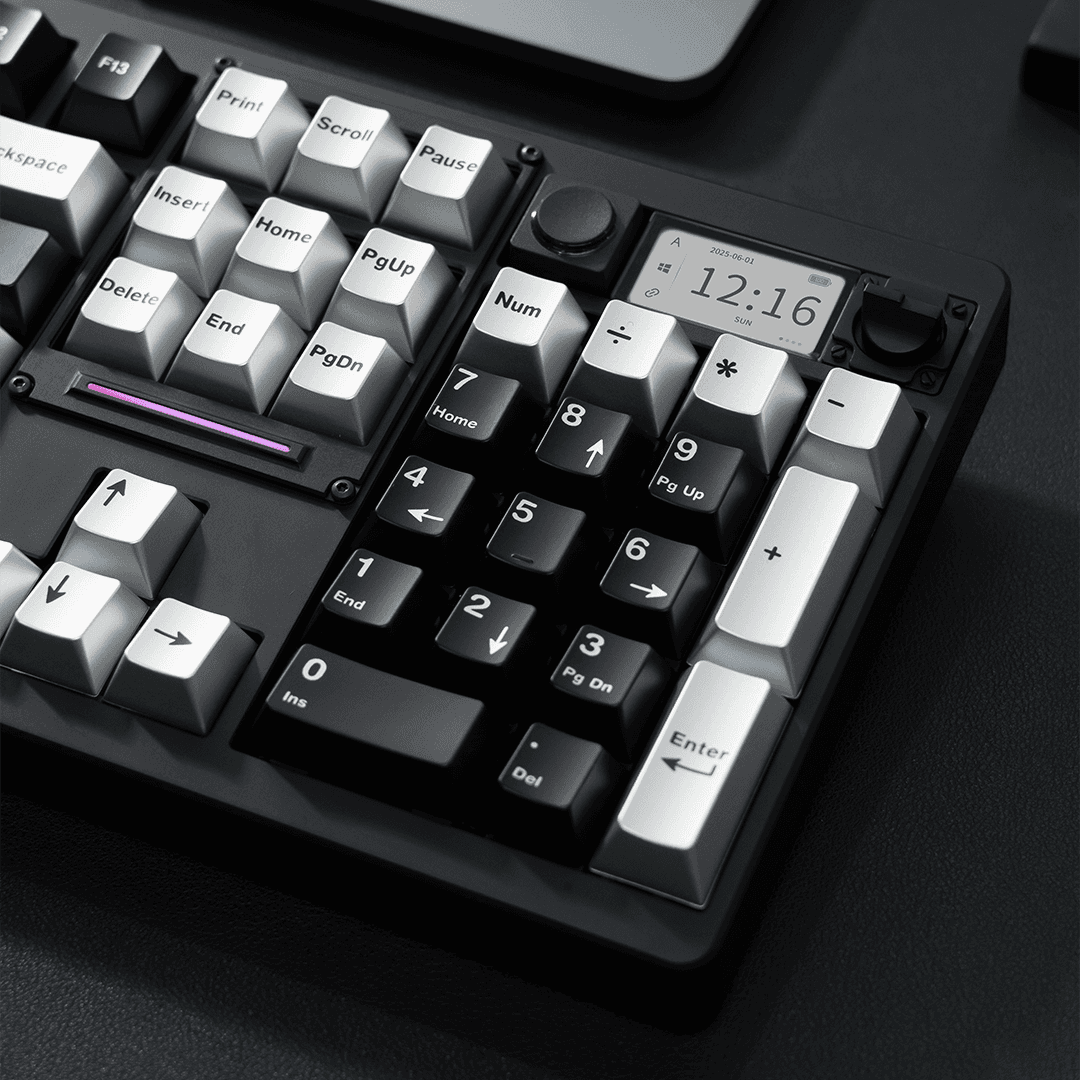

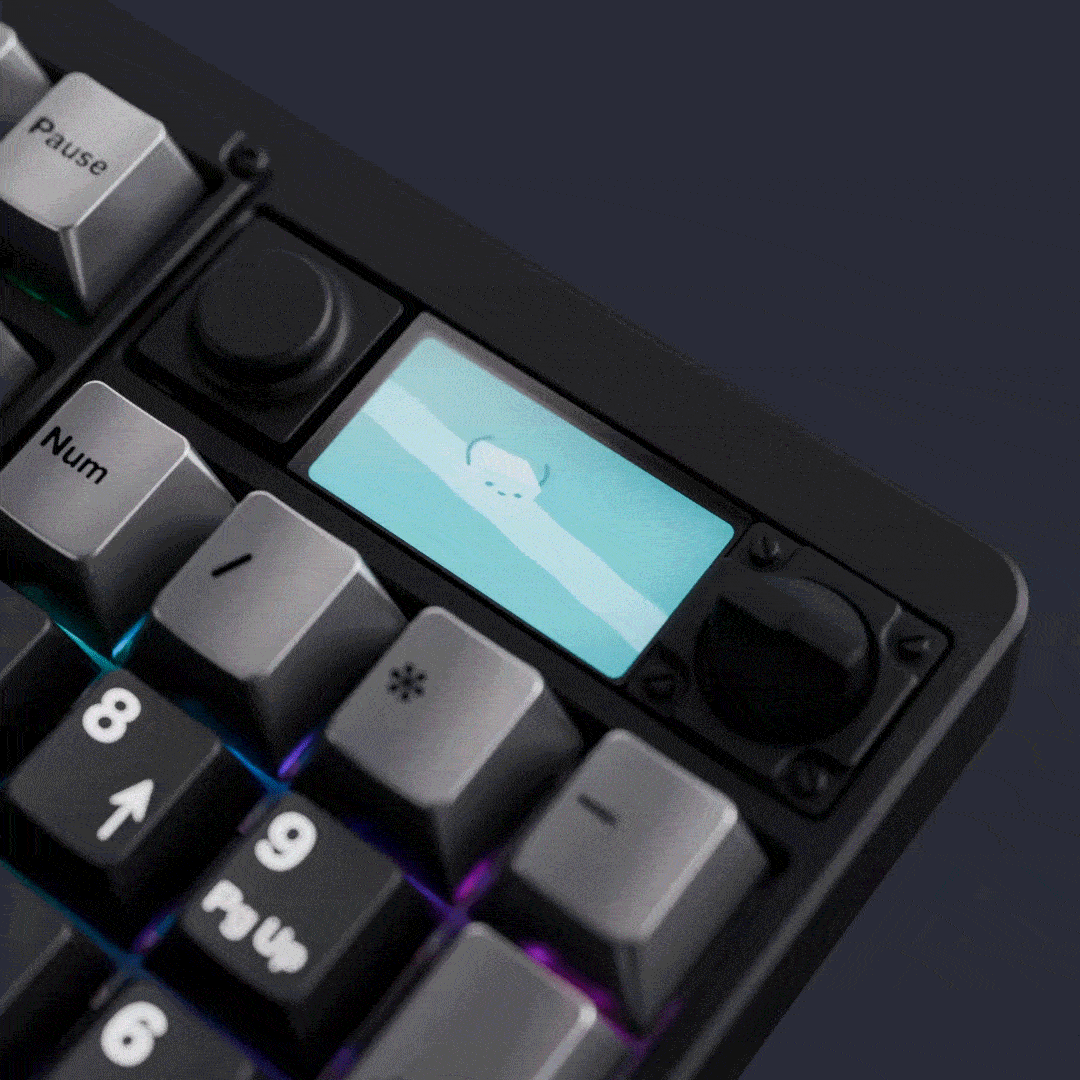

The keyboard's integrated display can show the time, calculator functions, or dynamic backgrounds – making the keyboard the control center on your desk. An additional rotary knob allows for precise control of volume and media functions, further enhancing the premium user experience.

Acoustic optimization

The construction comprises five different damping layers – including plate foam, switch foam, PET acoustic pads, and housing foam. Together with the black anodized aluminum housing, this creates a sound characteristic that is low in vibration, clean, and deep.

Connectivity & Layout Flexibility

The board offers tri-mode connectivity with USB-C (wired), 2.4 GHz wireless, and Bluetooth. The polling rate is 1,000 Hz in wired and wireless modes, and approximately 133 Hz in Bluetooth mode. The PCB also supports both ANSI and ISO layouts, allowing for flexible implementation of regional layout variations.

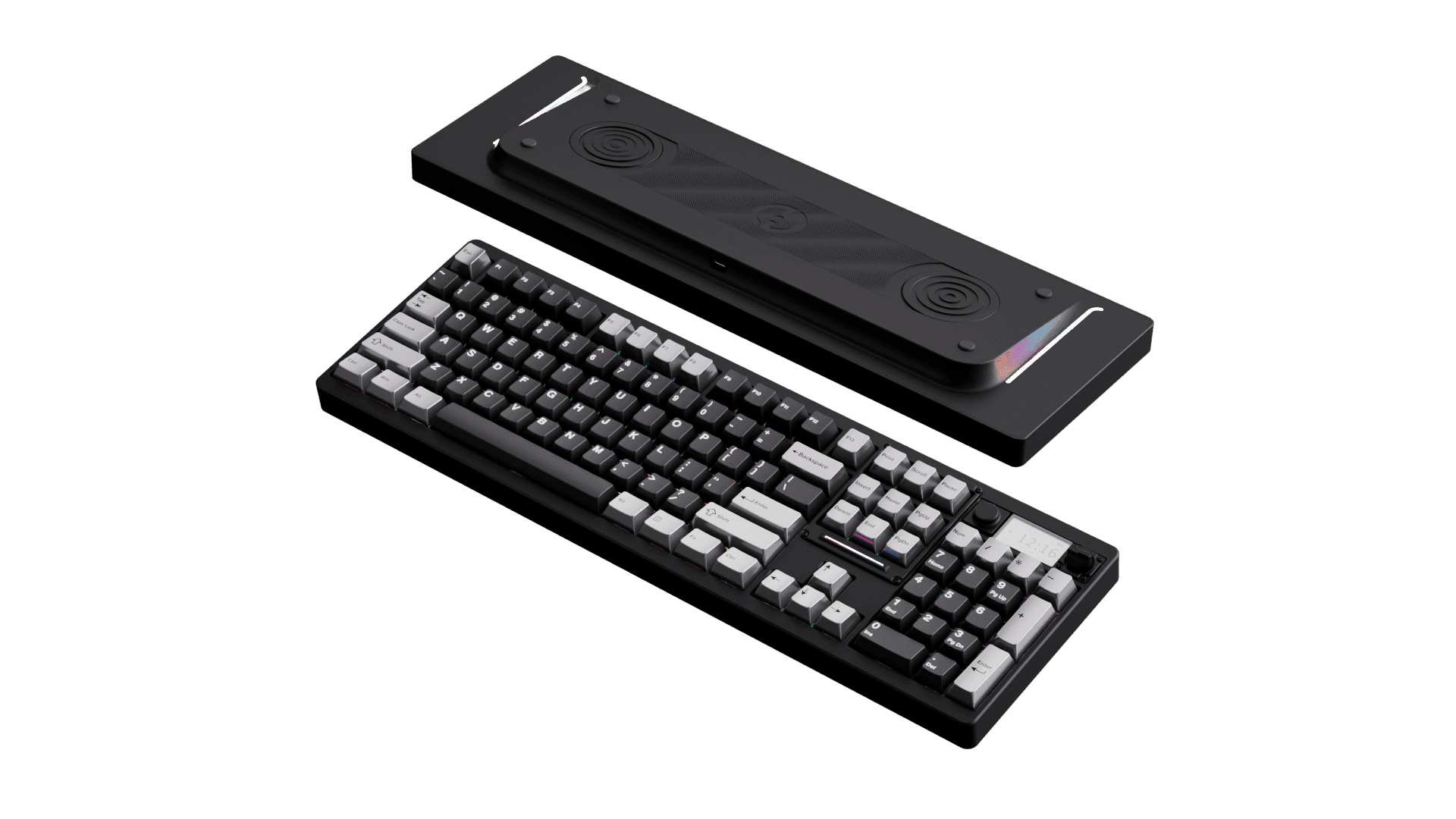

Material & workmanship

The housing and top plate are made of CNC-machined 6063 aluminum alloy, optionally with an anodized or "Acustatic" finish for a particularly elegant look. The FR4 gold immersion plate ensures secure switch mounting and consistent transmission of actuation force and sound.
