Keychron Q9 Knob (ISO) Barebone

$130.34
Incl. VAT • 2-year InputGear warranty - 24-hour shipping
variant
Quantity

INPUTGEAR Hype Chart

12345
Little hype
Hype
A lot of hype
Shipping from Germany
With this purchase you are supporting a climate-positive footprint.
Free shipping on orders over €50

KeebHawk lets you easily resell your used keyboard and keycaps. Powered by InputGear

If you are an EU-based company interested in a B2B purchase, please contact us with your demand list and billing address to receive tailored discounts and dedicated support.

More about our guarantee

The Keychron Q9 Knob, in ISO barebone format, is a compact, high-quality mechanical keyboard with an approximately 40% layout (≈ all main keys without the number pad) and an additional rotary encoder ("knob") in the upper right corner. It is aimed at enthusiasts who prefer a minimalist form factor with maximum customizability. The CNC-machined aluminum chassis, gasket-mount design, and hot-swappable PCB make it a flexible platform for individual builds. The knob allows programming via QMK/VIA firmware—ideal for media control, zoom, or other macros.

Technical specifications

  • Layout: ISO (European keyboard layout)

  • Type: Barebone (without switches & keycaps)

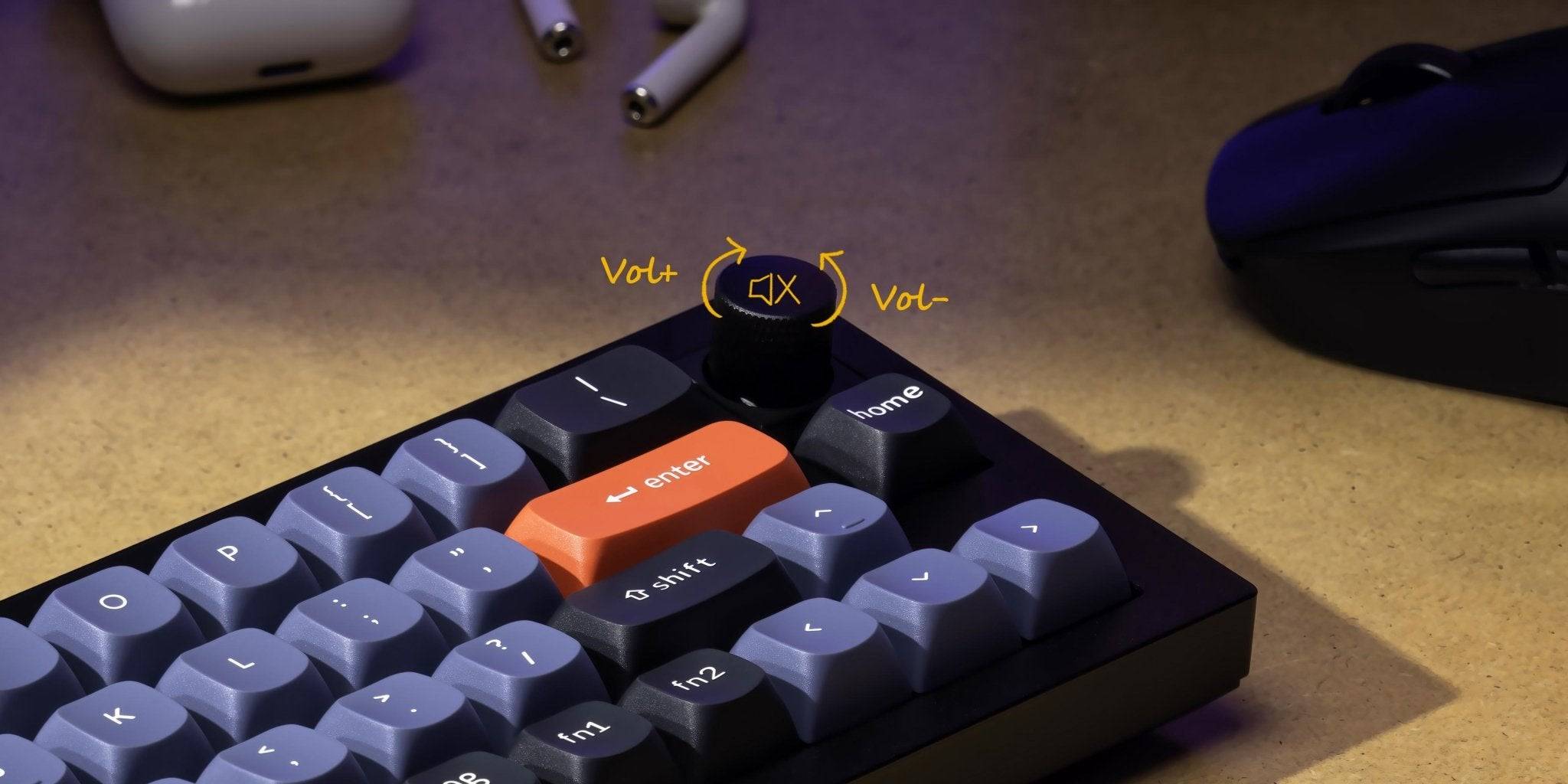

  • Rotary knob: Integrated encoder at the top right, programmable via QMK/VIA

  • Housing material: Fully CNC machined aluminum (alloy 6063)

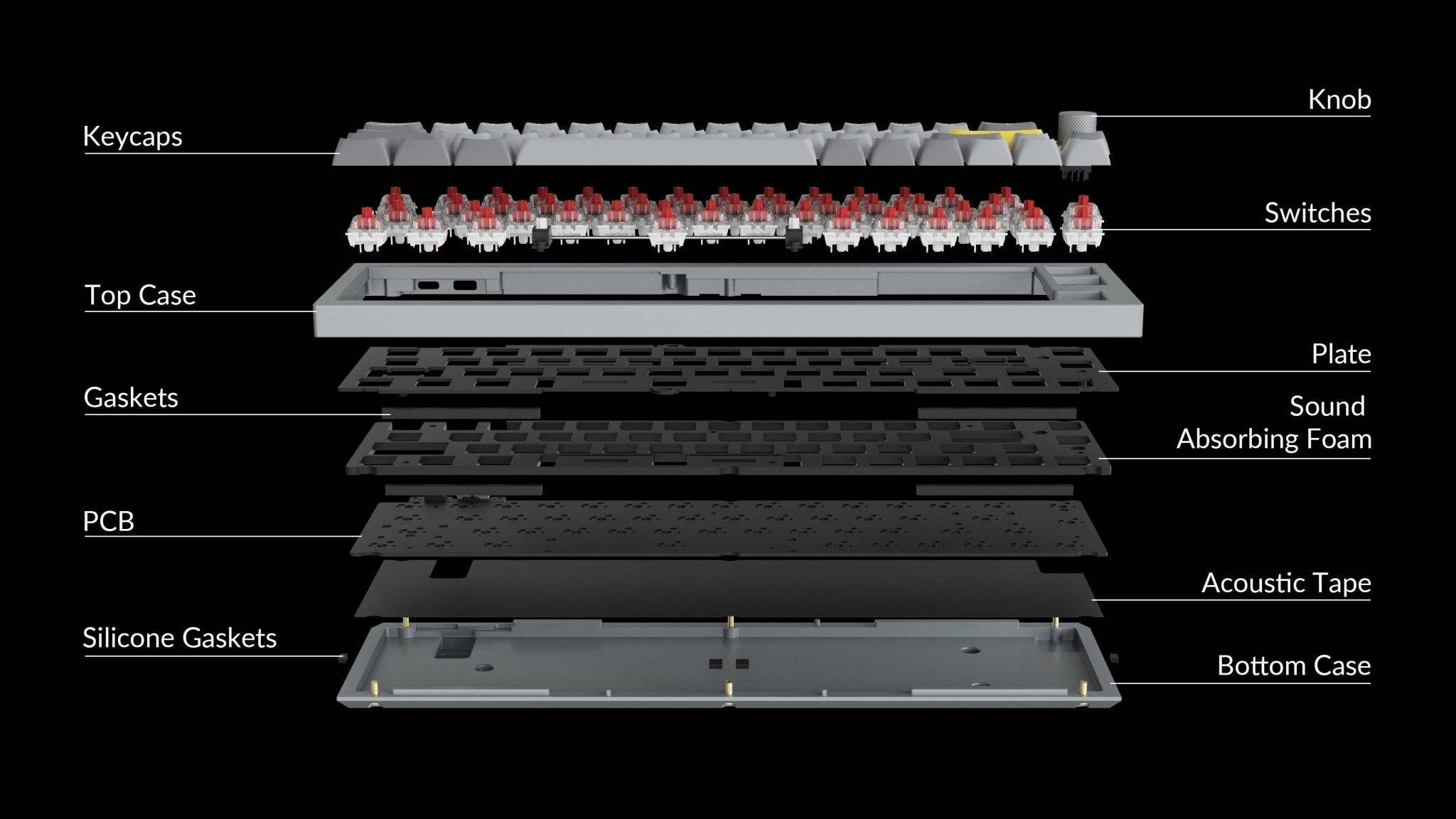

  • Mounting type: Gasket mount + double insulation layers (between plate and housing)

  • Plate: Steel plate

  • Hot-swap support: Yes – compatible with 3-pin & 5-pin switches

  • Connection: USB-C (wired)

  • Polling rate: 1000 Hz

  • Dimensions: approx. 326 mm length × 94.1 mm width; height at front approx. 19.6 mm, at back approx. 30.7 mm (without keycaps)

  • Weight (fully assembled version): approx. 1,050 g ±10 g

  • Firmware: QMK & VIA compatible (fully programmable)
