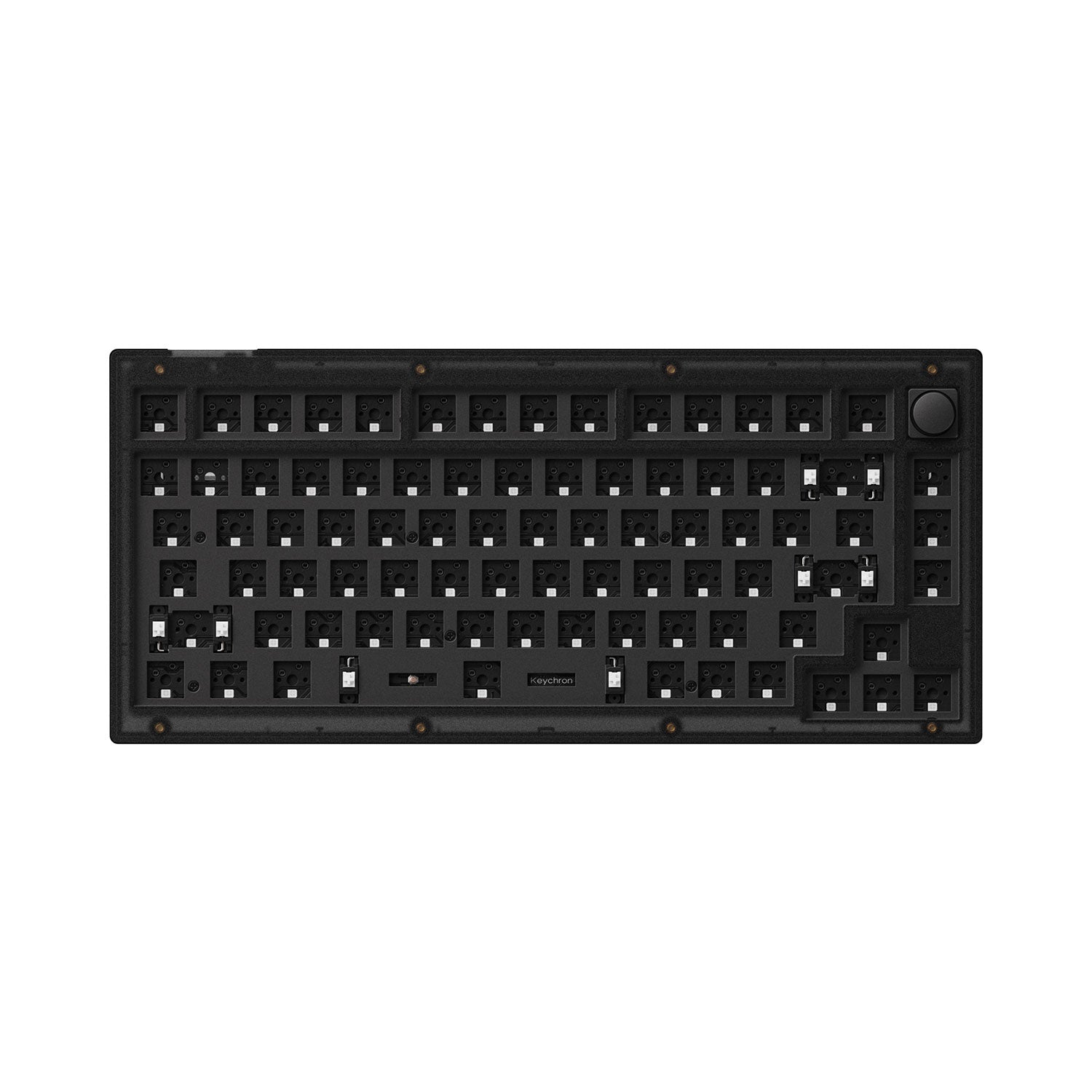

The Keychron V1 Knob in the ANSI version (barebone) is a high-quality barebone kit of a 75% form factor mechanical keyboard with an integrated rotary knob. "Barebone" means that no switches or keycaps are included—you provide your own and can customize the setup. The layout is ANSI (US keyboard layout), making it particularly suitable for users who prefer the US layout. The board offers hot-swapping capability, QMK/VIA firmware support, and modern features—ideal for modding, gaming, or productive work.
Technical specifications
-
Layout: ANSI (US standard layout)
-
Format: approx. 75% (more compact layout with function key row)
-
Connection: USB-C cable connection (also available for barebone versions)
-
Hot-swap: Yes – the sockets support 3-pin and 5-pin switches.
-
Housing material: ABS plastic (top case)
-
Mounting method: tray mount design
-
Rotary knob: Integrated – programmable via firmware or software
-
Lighting: RGB LEDs (south-facing) for better compatibility with third-party keycaps
-
Compatibility: Windows, macOS, Linux
-
Dimensions: approx. 328.5 × 148.7 mm (L × W)
-
Height without keycaps: approx. 17.9 mm at the front , approx. 25.8 mm at the back
-
Weight: approx. 970 g (fully assembled)
-
Special features: Screw-in PCB stabilizers for a more stable fit of the large keys
