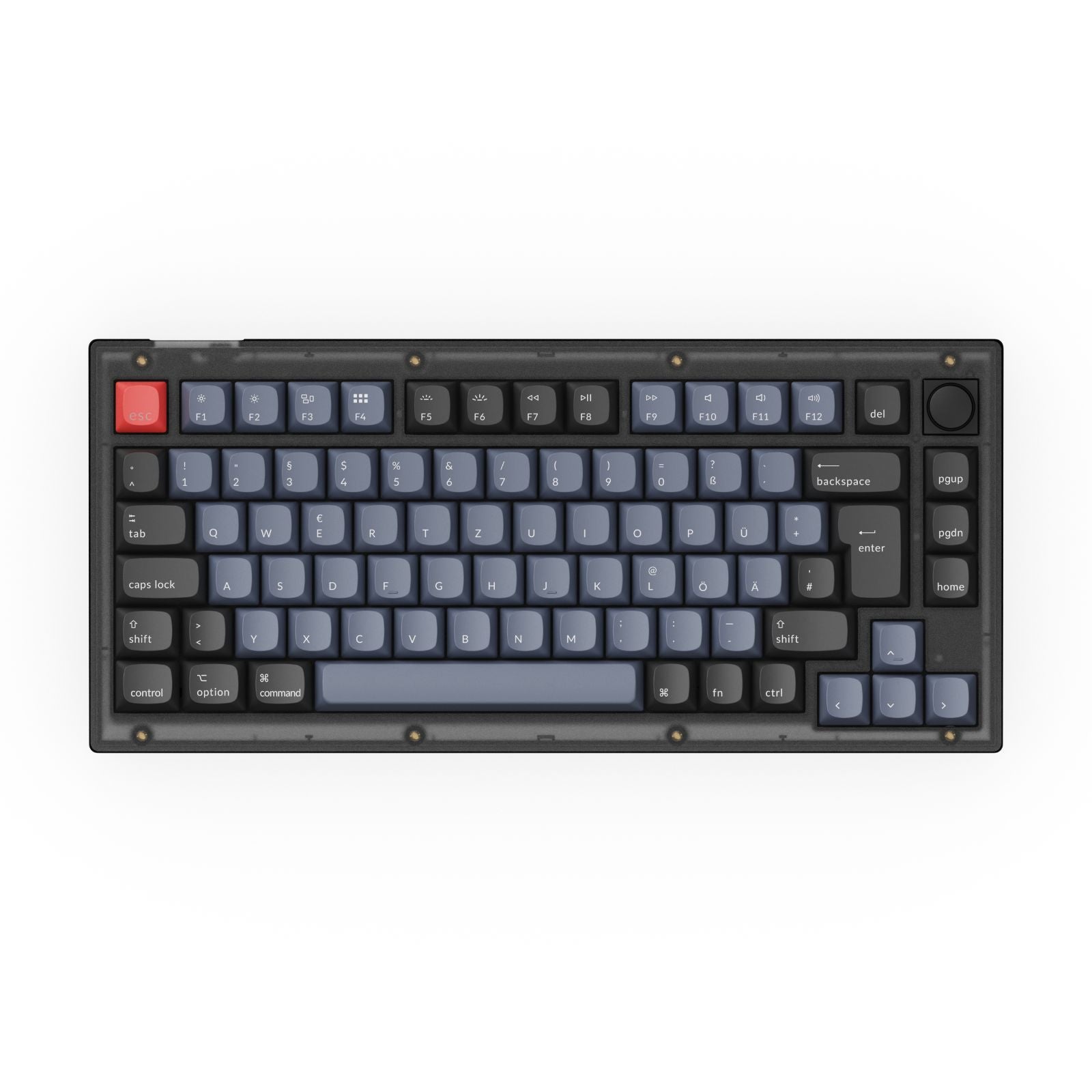

The Keychron V1 Knob is a high-quality 75% form factor mechanical keyboard with an integrated rotary knob, designed for both enthusiasts and everyday users. The ISO-DE version is specifically designed for the German keyboard layout, while also offering hot-swap compatibility and full firmware customization (QMK/VIA). This version is ideal for users who prefer the US ANSI layout or want a variant with a German ISO layout. The barebone version does not include switches or keycaps, allowing you complete freedom to customize your setup.

Technical specifications

• Layout: ISO-DE (German ISO keyboard layout)

• Format: approx. 75% (compact layout, function key row included)

• Connection: USB-C (wired)

• Hot-swap: Yes – supports 3-pin and 5-pin MX-compatible switches

• Knob (rotary control): Integrated – programmable via firmware (macros, media control, etc.)

• Mounting type: Tray-mount design (circuit board + plate embedded)

• Key design: Screw-in PCB stabilizers (for large keys)

• Dimensions: Width ~ 328.5 mm, Depth ~ 148.7 mm

• Height profile: Front ~ 17.9 mm, Back ~ 25.8 mm

• Weight: approx. 970 g

• Firmware: Supports QMK & VIA – freely programmable

• Lighting: South-facing RGB LED (for good compatibility with keycaps)

• Housing material: ABS plastic

• Plate: Steel plate

• Compatibility: Windows & macOS
