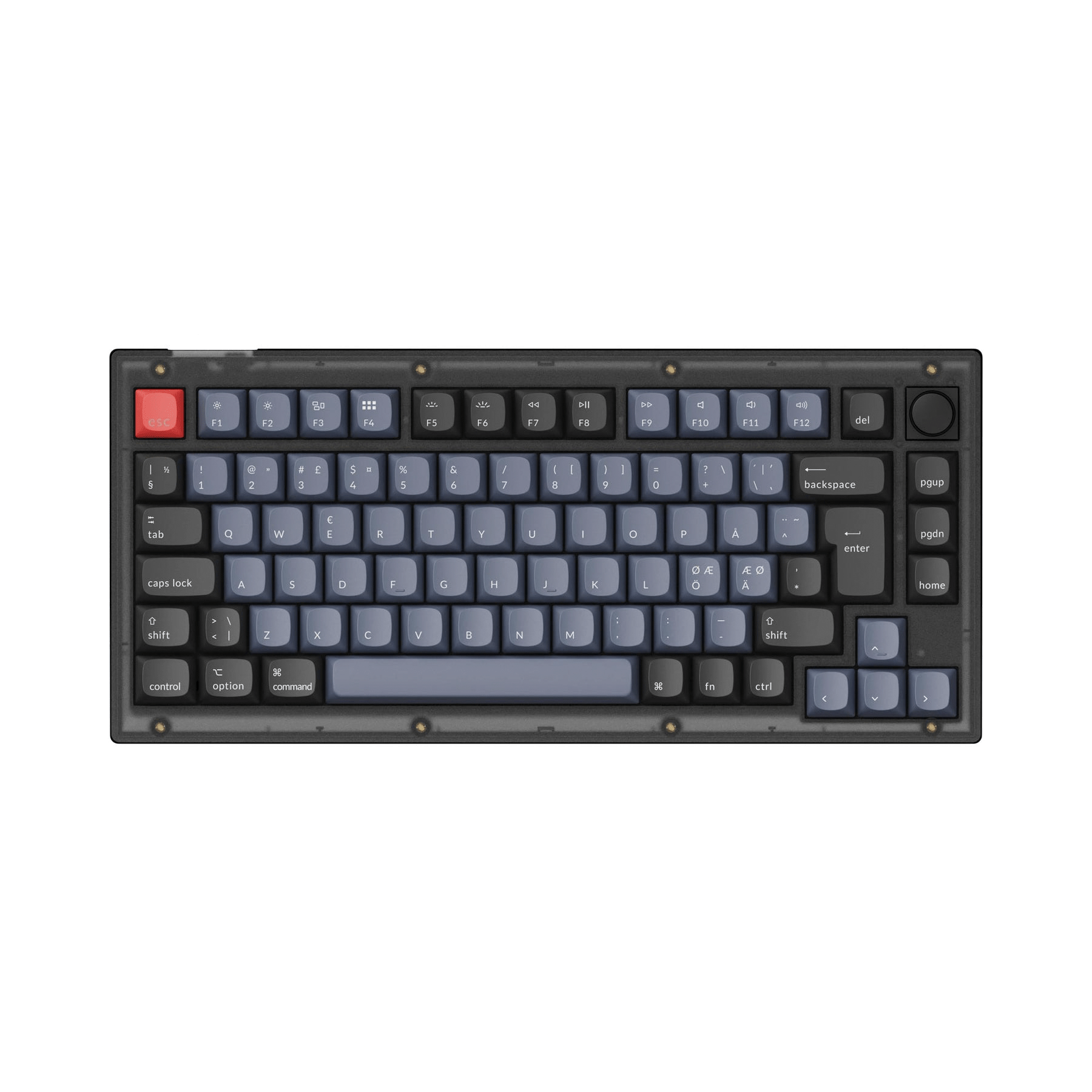

The Keychron V1 Knob in ISO-NOR layout is a robust mechanical keyboard in approximately 75% of its original size, specifically designed for the Norwegian keyboard layout. The integrated rotary knob allows for additional control functions such as volume, macros, and shortcuts. The barebone version comes without switches or keycaps, allowing you to customize the keyboard to your liking—ideal for modders and enthusiasts. With hot-swappable switches, programmable firmware (QMK/VIA), and a modern design, it offers a wide range of options for both productivity and gaming users.

Technical specifications

• Layout: ISO-NOR (Norwegian ISO layout)

• Format: approx. 75% (compact design with function key row, without large borders)

• Connection: USB-C (wired)

• Hot-swap: Yes – Supports 3-pin and 5-pin MX-compatible switches

• Knob (rotary control): Integrated – programmable e.g. for media control or macros

• Mounting principle: Tray-mount design (circuit board and plate embedded)

• Stabilizers: PCB “screw-in” stabilizers for stable large keys

• Dimensions (approximately): Width ~ 328.5 mm, Depth ~ 148.7 mm

• Height profile (excluding keycaps): Front ~ 17.9 mm, Back ~ 25.8 mm

• Weight: approx. 970 g

• Firmware: Support for QMK & VIA – full customization of key assignments, macros and lighting possible

• Lighting: RGB with "south-facing" LED arrangement (facing forward)

• Housing material: ABS plastic

• Plate: Steel (standard)

• Compatibility: Windows & macOS
