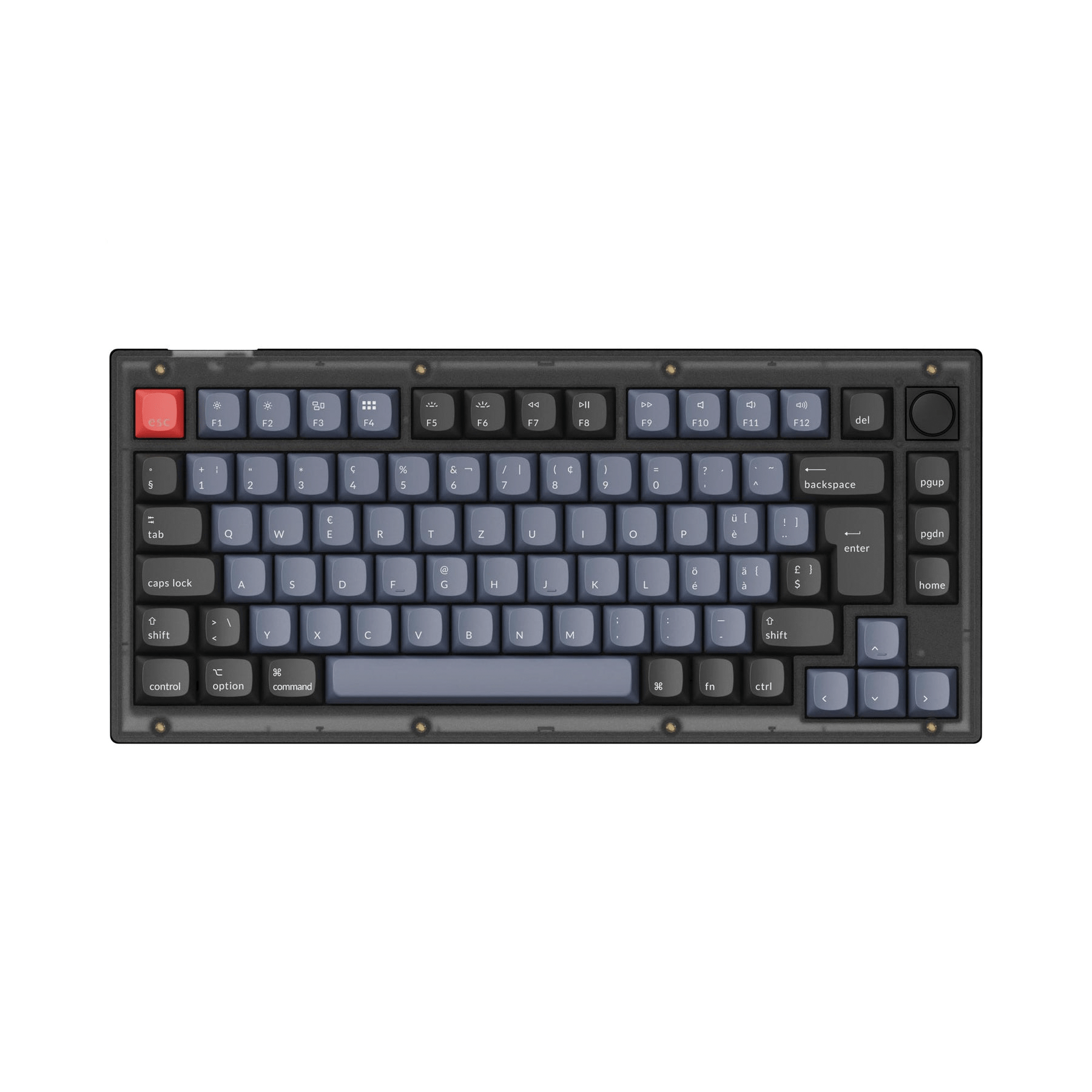

The Keychron V1 Knob in ISO-Swiss layout is a high-quality mechanical keyboard in approximately 75% of the standard form factor with an integrated rotary knob, specifically designed for the Swiss layout with ISO key arrangement. The barebone kit is supplied without switches and keycaps and is aimed at users who want to customize their setup – with their own choice of switches and keycaps. Thanks to its hot-swap capability, programmable knob, firmware support (QMK/VIA), and flexible connection options, it offers an excellent foundation for a custom keyboard build.

Technical specifications

• Layout: ISO-SWISS (Swiss ISO keyboard layout)

• Format: approx. 75% (more compact keyboard format with function key row, without full numeric keypad)

• Connection: USB-C (wired)

• Hot-swap: Yes – supports both 3-pin and 5-pin MX-compatible switches

• Knob (rotary control): Integrated – freely programmable, e.g., for volume, media control, or macros.

• Mounting mode: Tray-mount design – circuit board and plate are embedded for improved stability

• Stabilizers: Screw-in PCB stabilizers for larger keys

• Dimensions: approx. 328.5 mm × 148.7 mm (length × width)

• Height profile: Front approx. 17.9 mm, back approx. 25.8 mm (excluding keycaps)

• Weight: approx. 970 g (fully assembled)

• Firmware: Supports QMK & VIA – full customization of key mapping, macros and lighting

• Lighting: RGB with south-facing LEDs (for better visibility through keycaps)

• Housing material: ABS plastic

• Plate: Steel plate (standard)

• Compatibility: Windows and macOS
