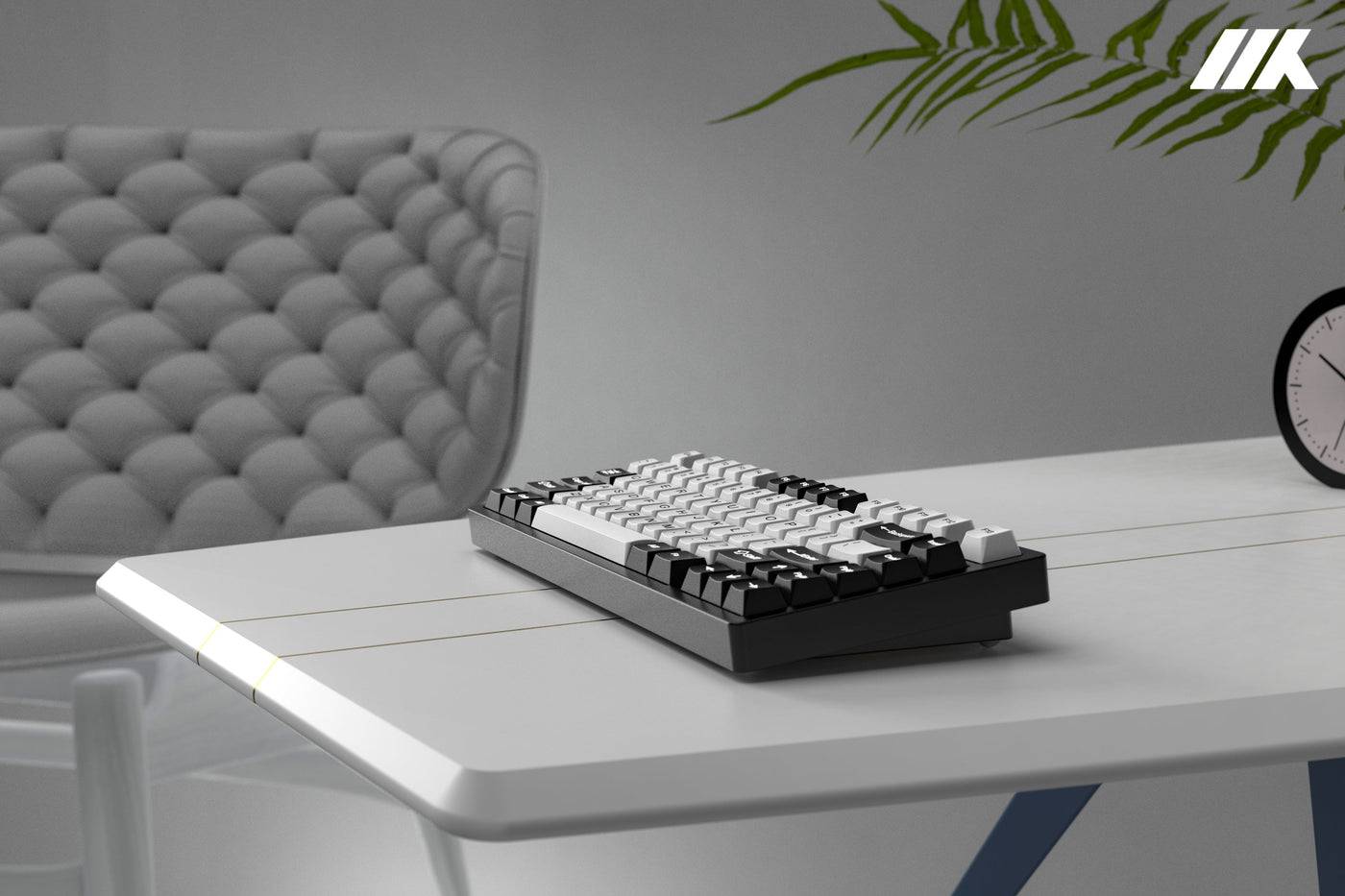

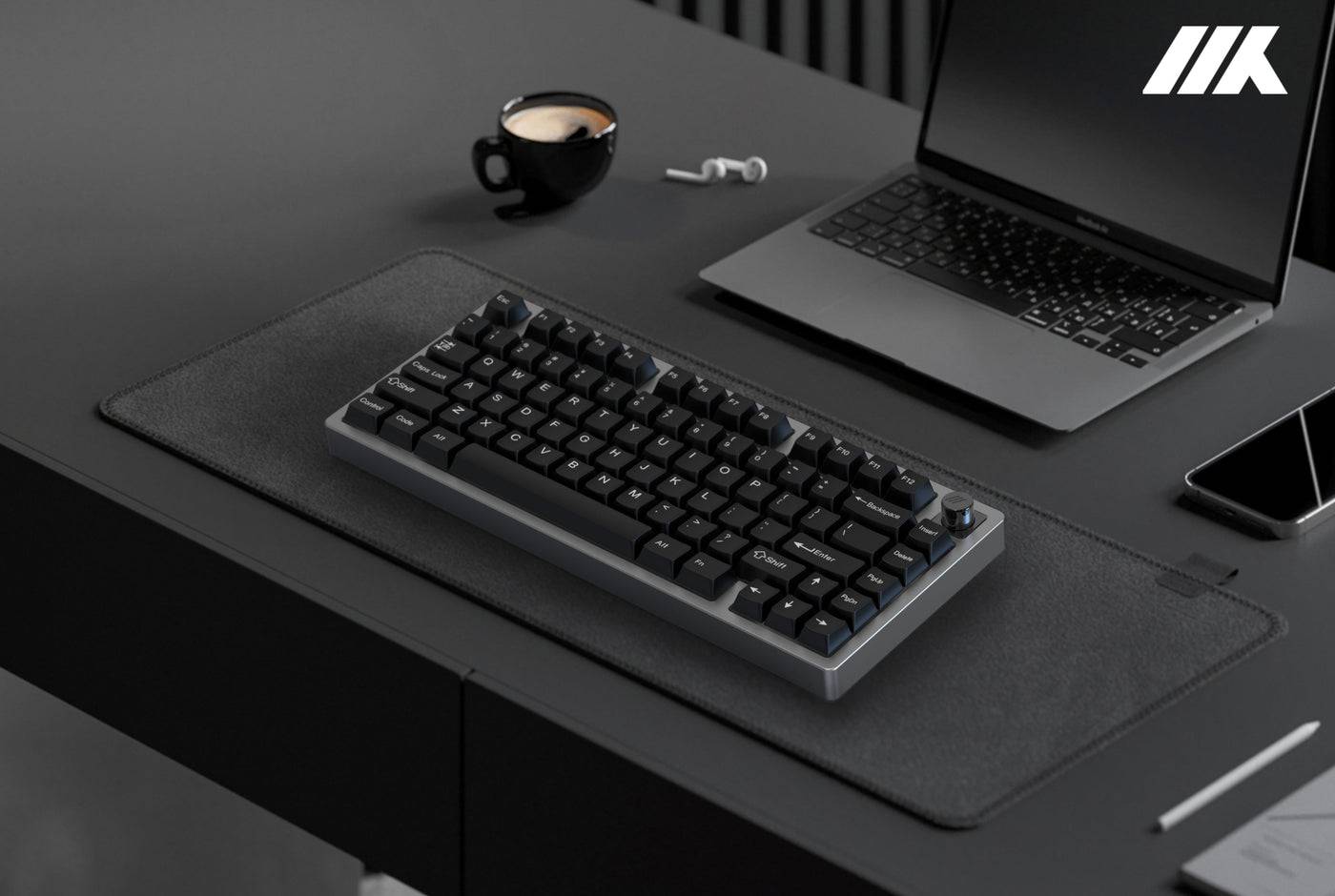

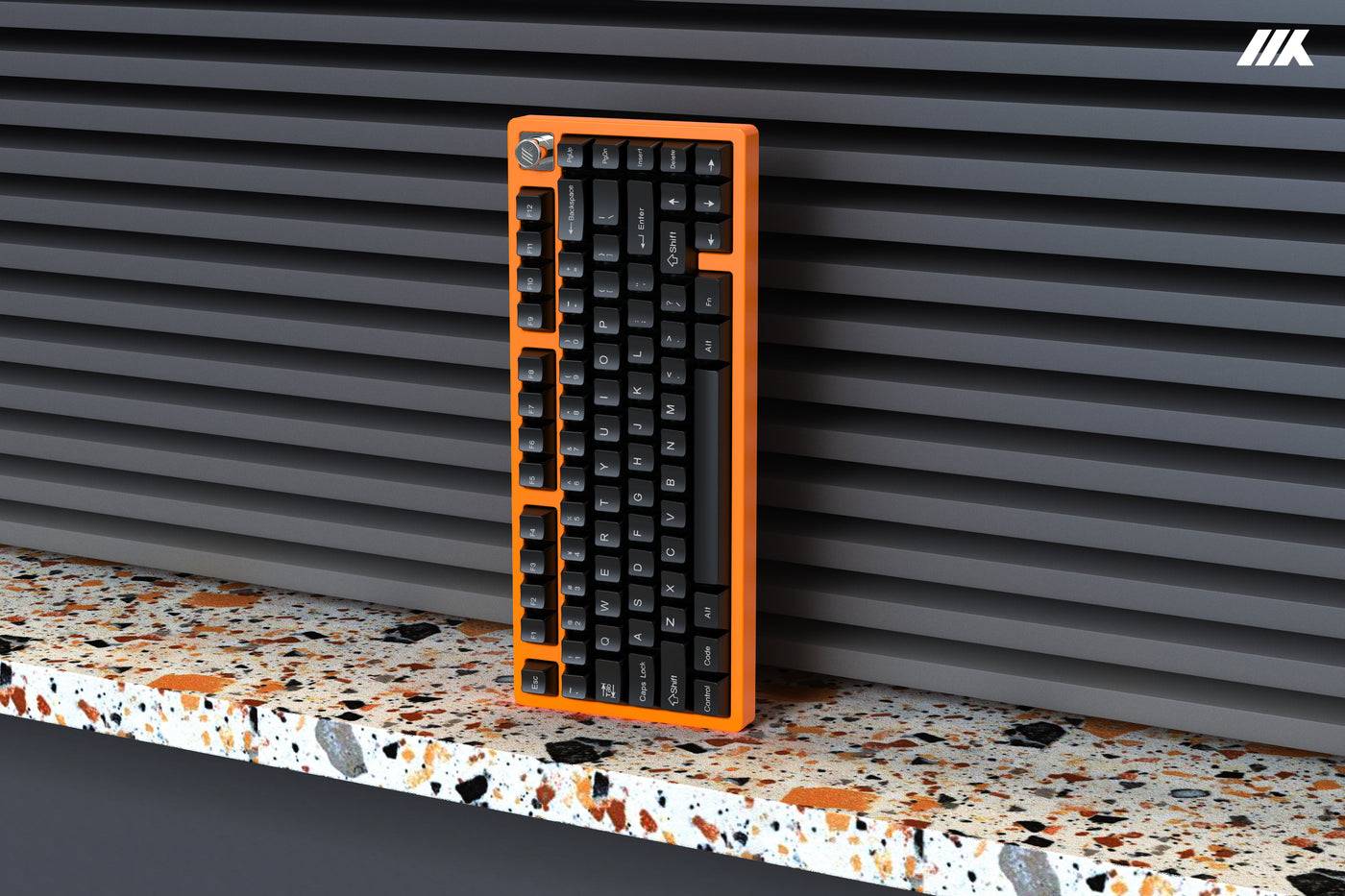

The MKC75 Keyboard Kit is a versatile and high-quality 75% custom keyboard kit that offers enthusiasts a high degree of customizability, stability, and performance in a compact format. The fully CNC-machined 6063 aluminum chassis not only provides a robust foundation but also a premium look and feel. Thanks to its three-in-one structural system, the kit can be assembled as a top mount , plate gasket mount , or PCB gasket mount – ideal for different typing and sound preferences. Support for tri-mode PCBs (wired, Bluetooth, and 2.4 GHz wireless) makes the MKC75 a flexible solution for desktop, laptop, and mobile setups. Furthermore, compatibility with QMK/VIA firmware is ensured in wired mode, allowing for extensive customization of key mappings, macros, and other functions. Overall, the MKC75 delivers excellent value for money in the budget-premium custom keyboards category.

Technical specifications:

• Product type: Custom keyboard kit – 75% layout (compact without number pad)

• Housing material: Fully CNC machined 6063 aluminum

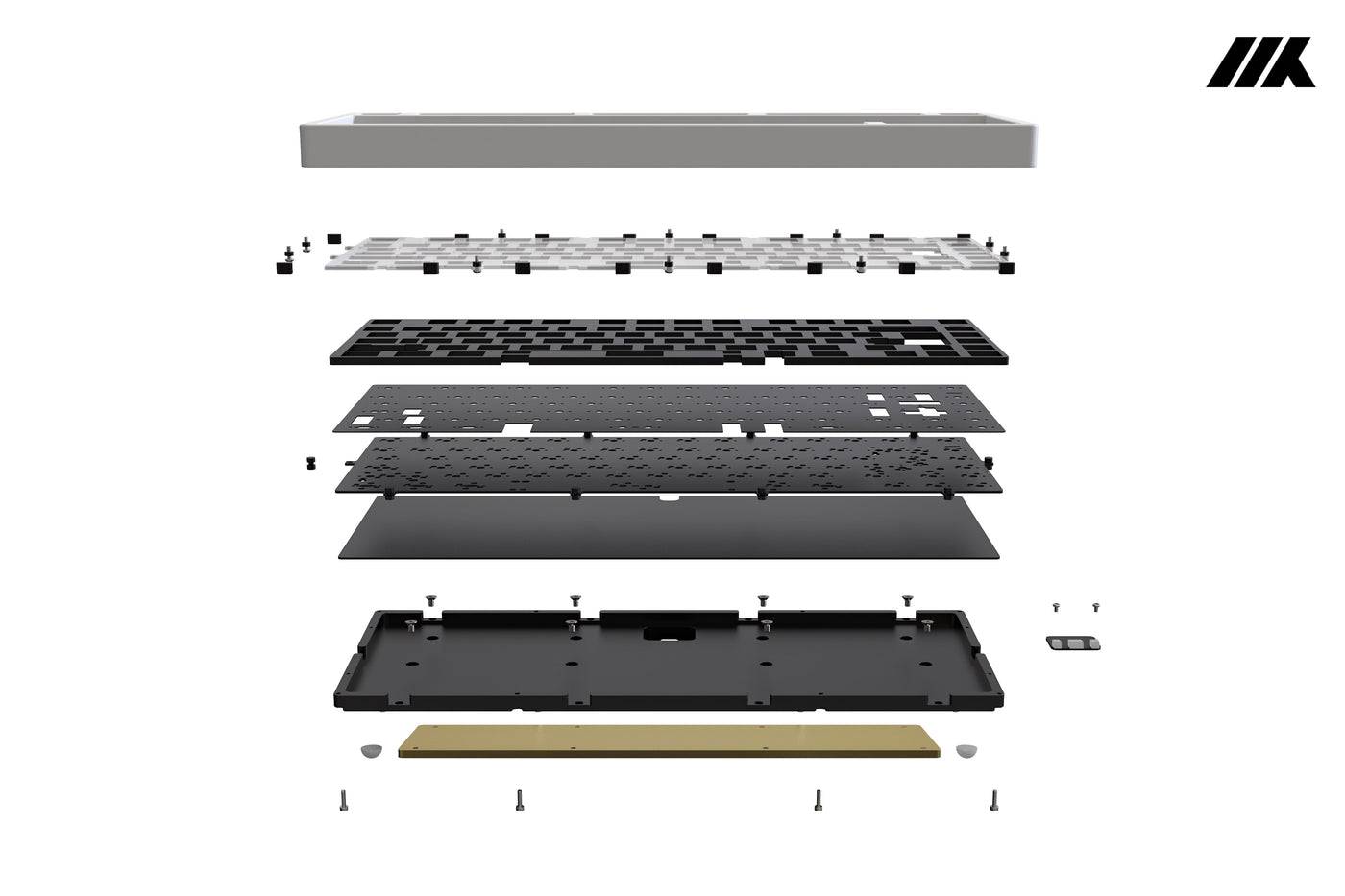

• Structural system: Three-in-one – Top Mount , Plate Gasket Mount , PCB Gasket Mount

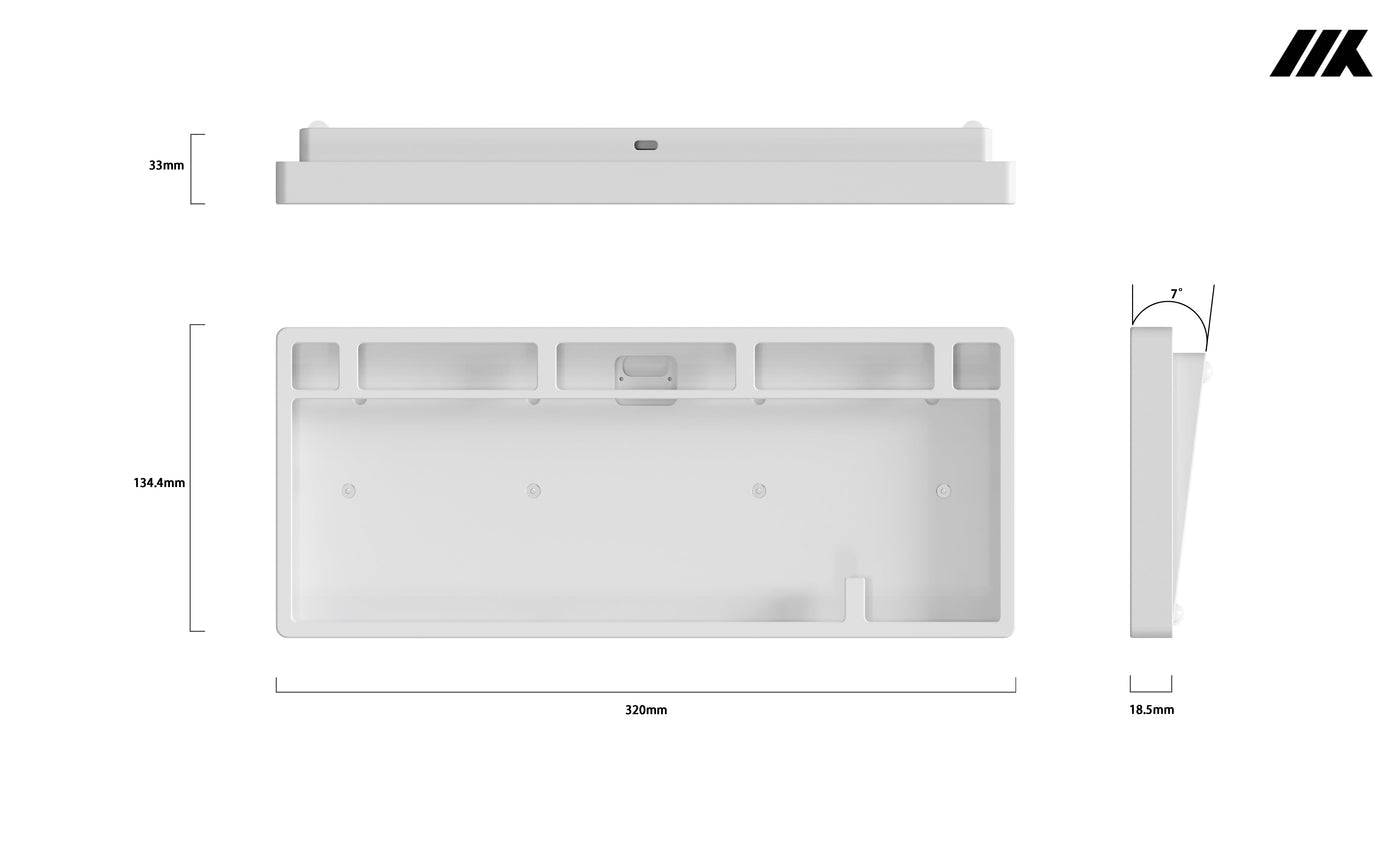

• Front height: approx. 18.5 mm

• Tip angle: approx. 7°

• Dimensions: approx. 320 × 134.4 × 33 mm

• PCB variants:

  • Wired Flex-Cut Hot-Swap PCB (1.2mm, Multi-Layout, 7u Split Spacebar, QMK/VIA)

  • Wired Non-Flex-Cut Hot-Swap PCB (1.6mm, Multi-Layout, 7u Split Spacebar, QMK/VIA)

  • Optional Per-Key-RGB Hot-Swap PCB

  • Optional Tri-Mode PCB (ANSI + ISO)

• Tri-mode function: Supports wired, Bluetooth and 2.4 GHz connections with compatible PCBs.

• Mounting options: Plateless, Half-Plate or Standard-Plate – depending on the desired typing feel

• Stabilizers: Supported, including O-ring components for fine-tuning

• Internal damping: IXPE Foam, Case Foam, Plate Foam – for fine-tuning sound and feel

• Rotary knob support: Compatibility with rotary knobs and LED light signs in certain configurations.

• QMK/VIA support: Supports extensive firmware customization on wired PCBs

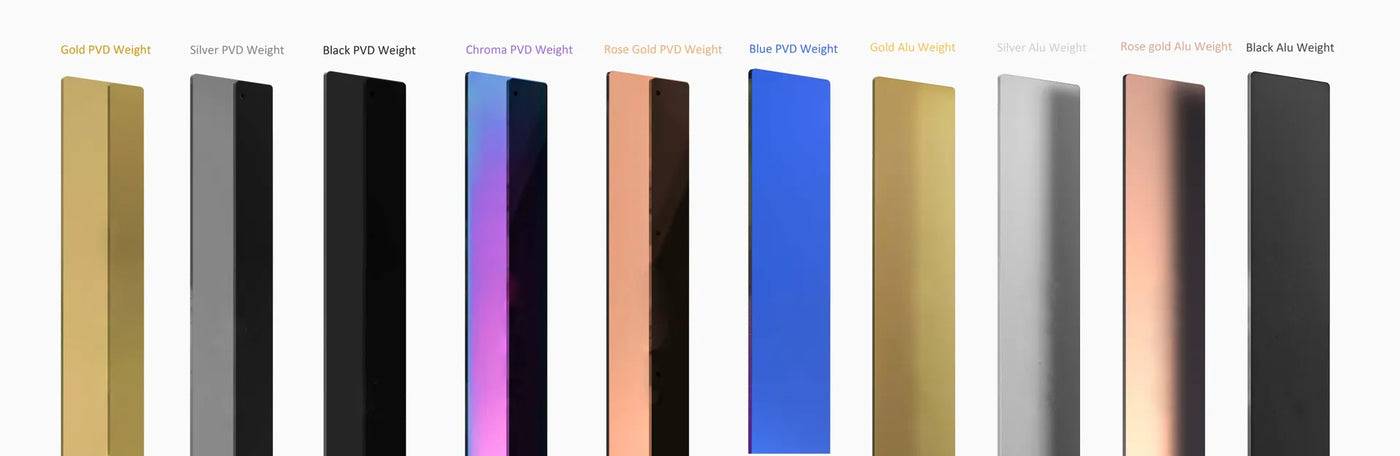

• Weight (unassembled): approx. 1.425 kg (with aluminium weight) / approx. 1.693 kg (with PVD weight)

• Weight (assembled): approx. 1.592 kg (aluminum) / approx. 1.860 kg (PVD)

• Compatibility: Support for ISO and ANSI layouts depending on the PCB variant

• Keycaps & Switches: Not included (Barebones kit, MX-style switches required)

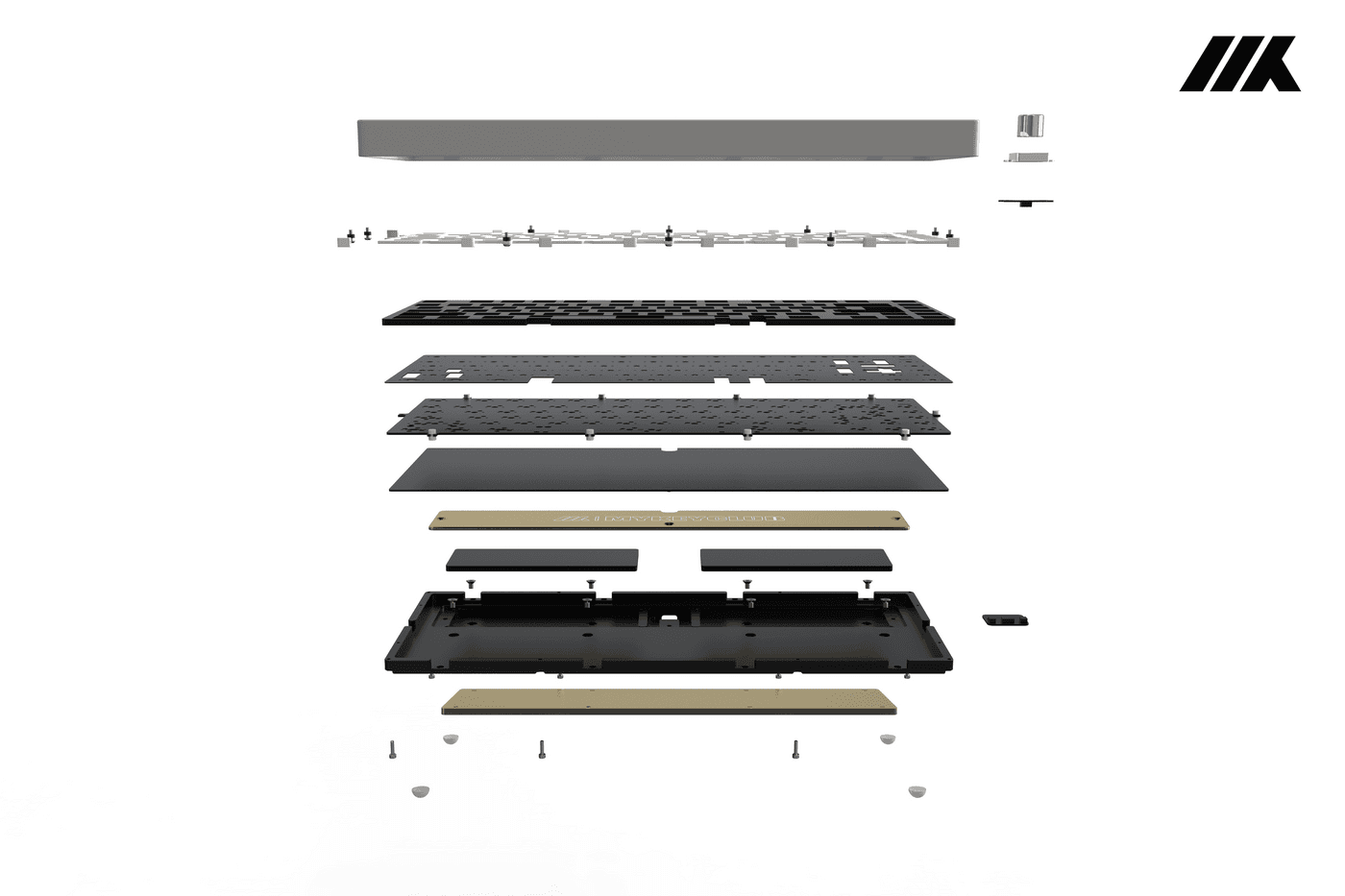

Included in the scope of delivery (varies depending on kit configuration):

• Full CNC aluminum top case

• Fully CNC aluminum bottom case

• External weight (aluminum or PVD)

• Internal weight (for Tri-Mode Case)

• PCB (depending on the version chosen)

• Plate (or plateless/half-plate option)

• IXPE Foam

• Poron Case Foam

• Poron Plate Foam

• USB-C daughterboard with JST cable

• PCB stabilizer O-rings

• Footpads

• Optional rotary knobs / LED light sign components

• Various foam and damping elements for sound and feel tuning
