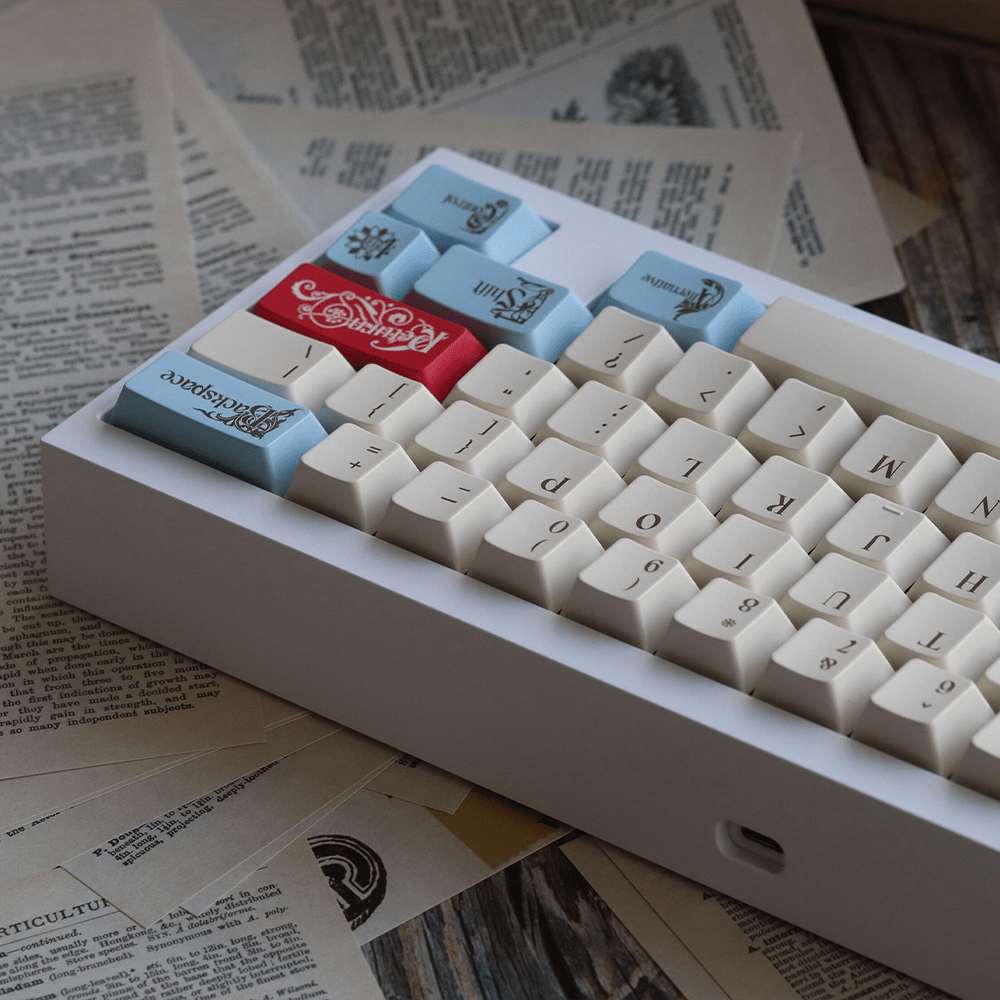

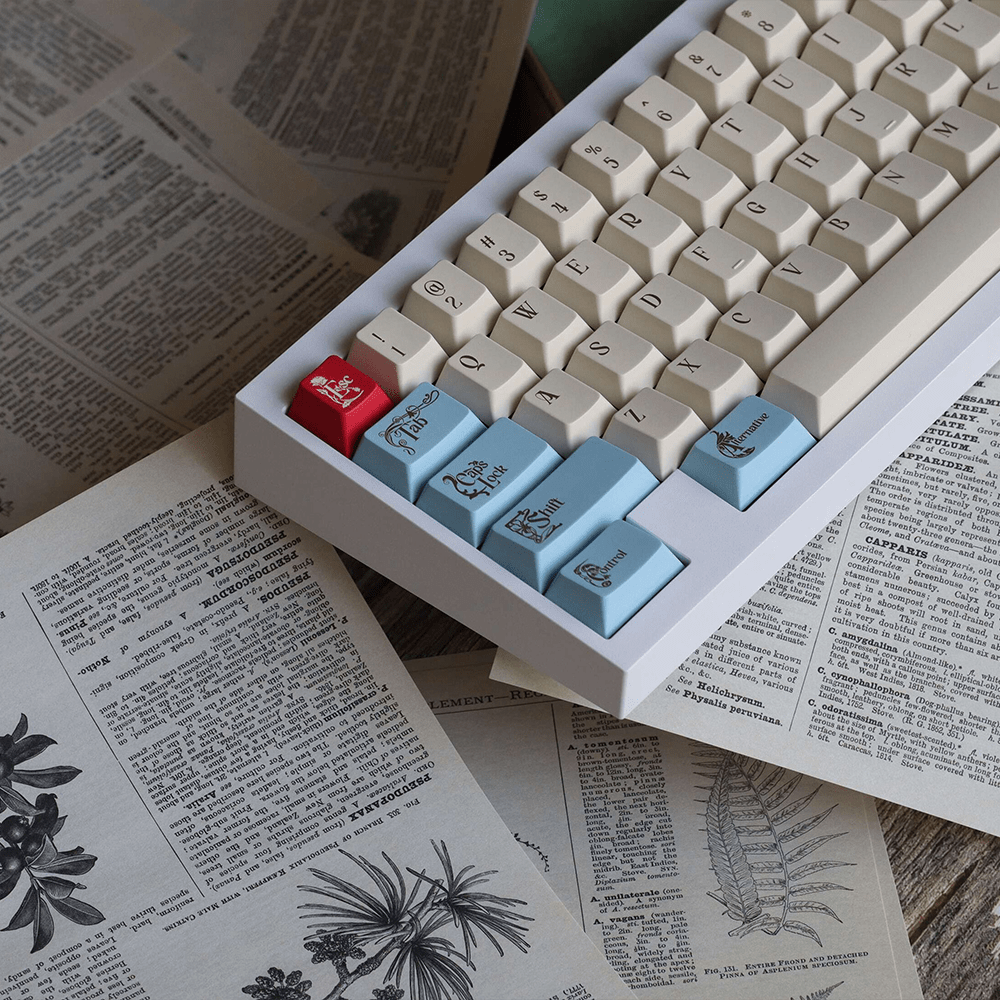

The TOFU60 2.0 Keyboard Kit from KBDfans features a well-designed 60% layout (compact design without a number pad) and is conceived as a barebone kit – meaning switches and keycaps are not included . It is aimed at DIY enthusiasts seeking a high-quality foundation for a custom keyboard build. The design includes an aluminum chassis, hot-swappable PCB, various mounting options, and a solid typing feel with a modern approach.

Technical specifications

• Layout size: 60% (approx. 294.7 mm length × 115.7 mm width)

• Tip angle: approximately 7°

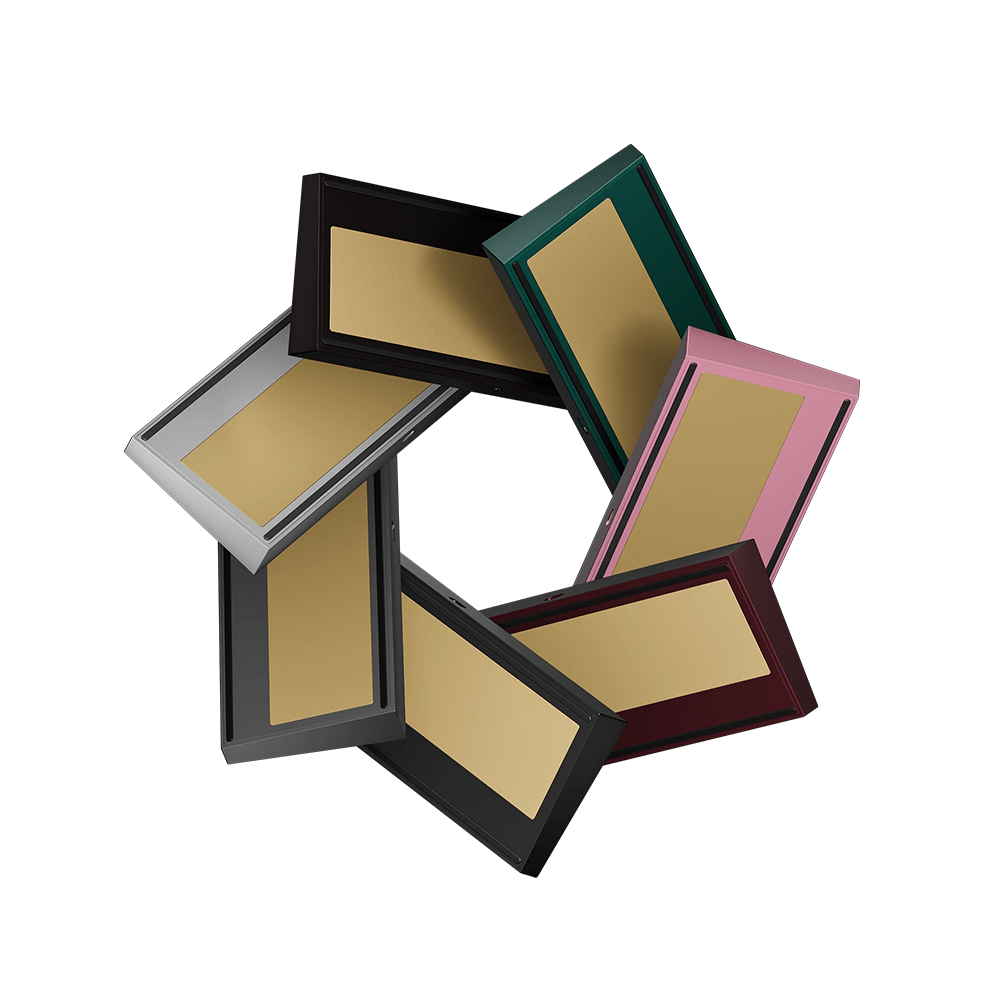

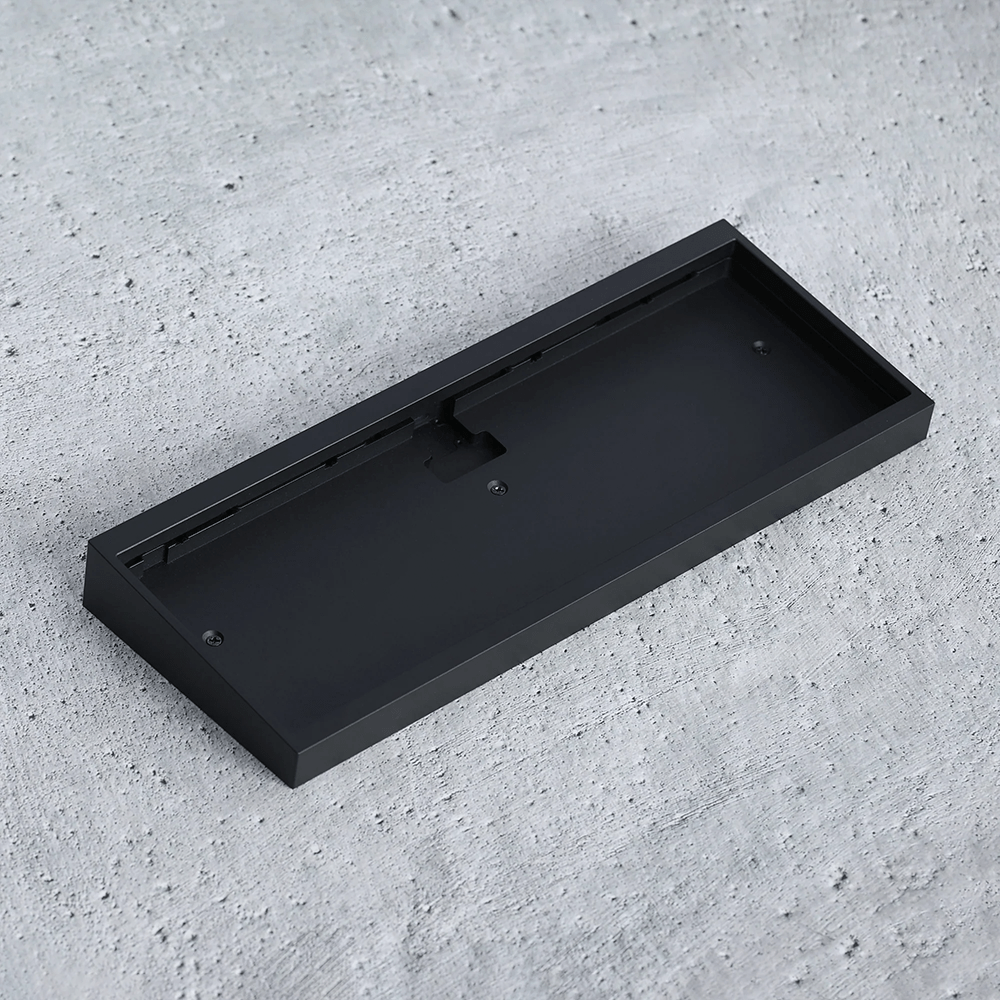

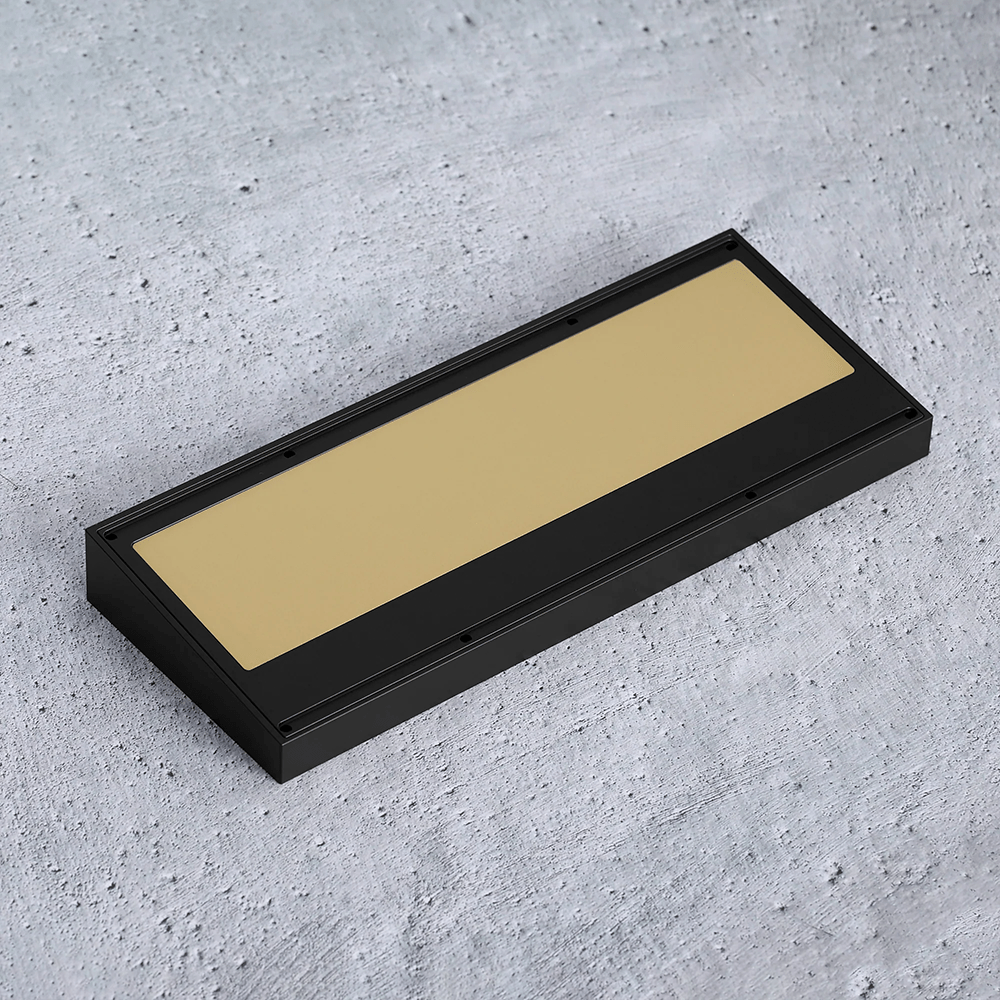

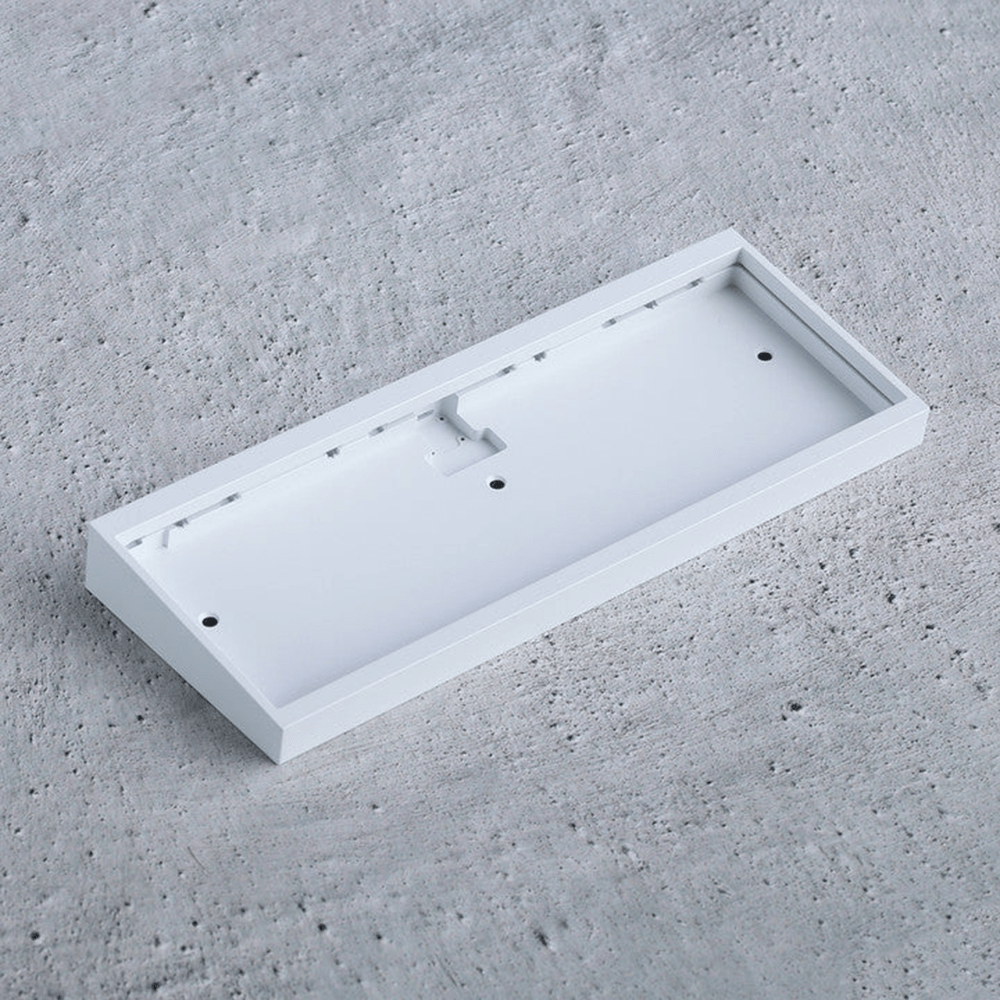

• Case material: Aluminum top and bottom, various colors/finishes available

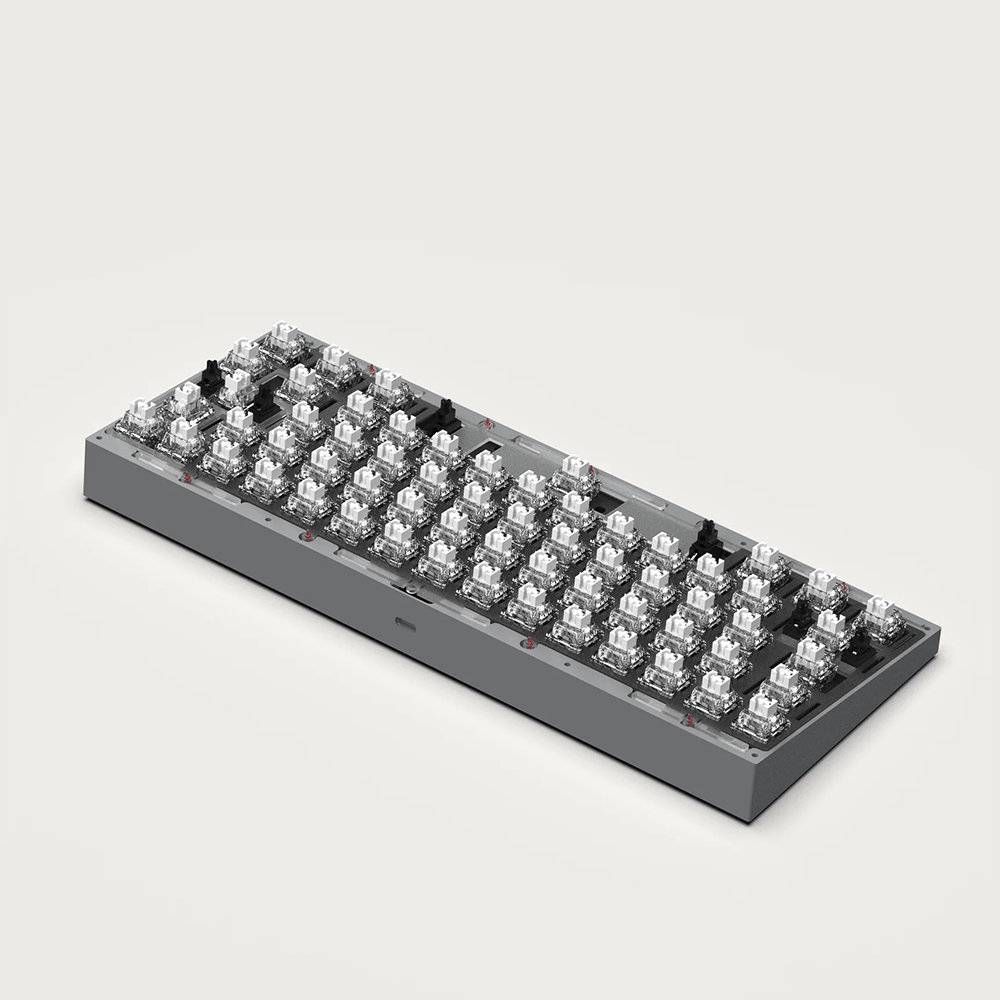

• PCB: Hot-swappable (switches can be replaced without soldering)

• Mounting options: Three mounting modes – Top-Mount, Silicone Socks, Silicone Bowl (for different sound and typing characteristics)

• Weight: approx. 1.4 kg before assembly (without switches/keycaps)

• Connections: USB-C connection

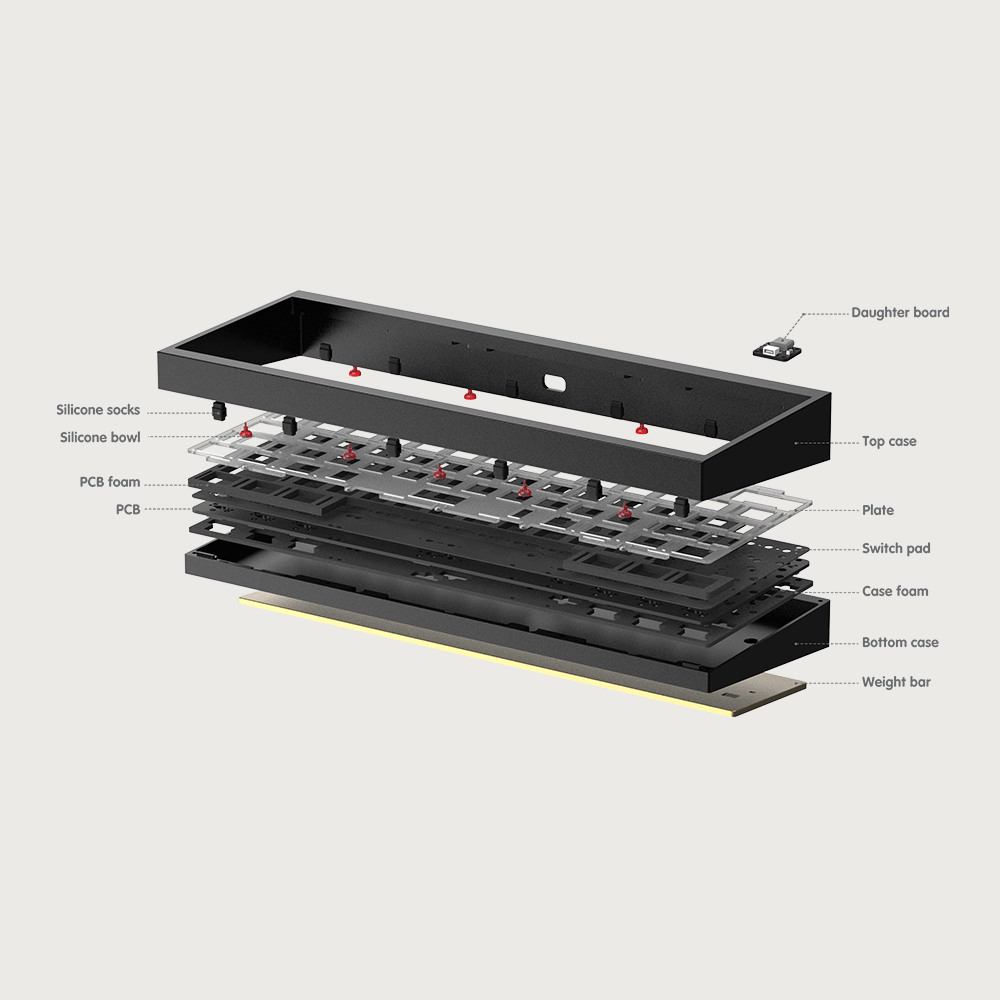

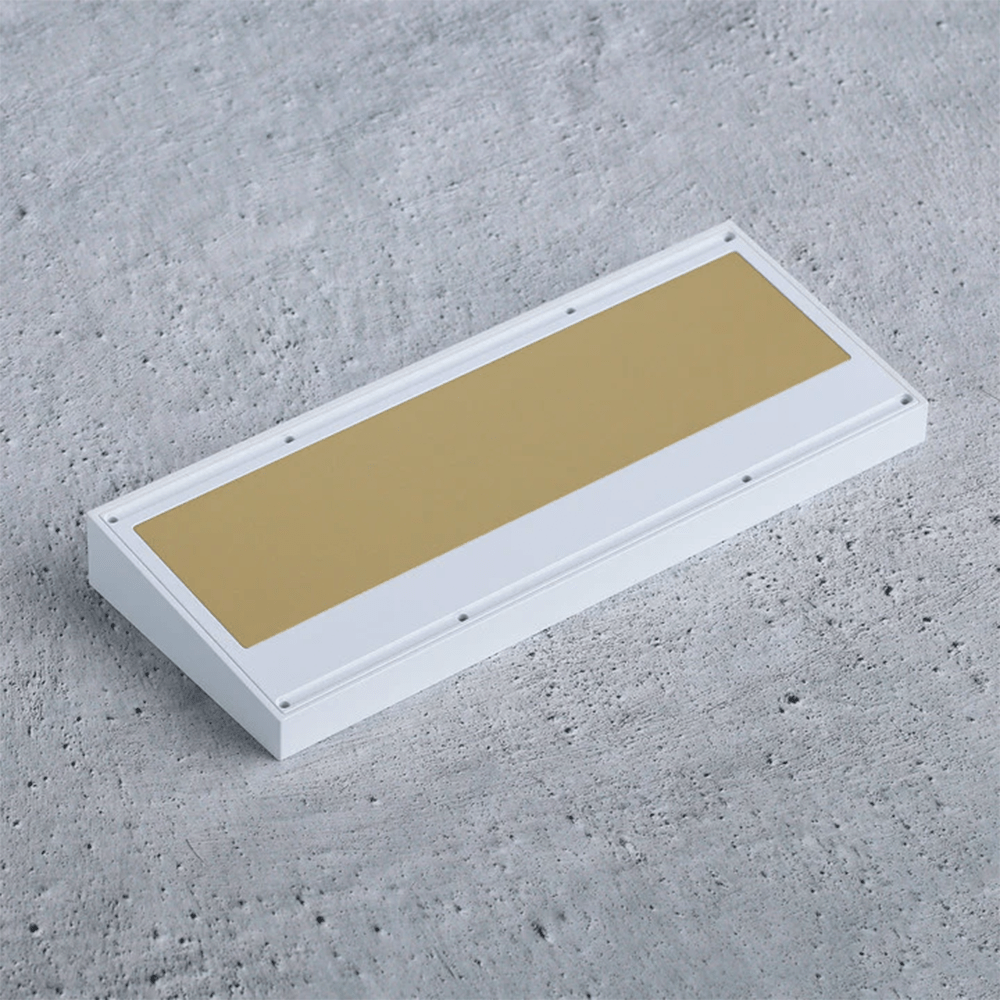

• Included components: Aluminum housing (top & bottom), hot-swap PCB, USB-C daughterboard, brass weight, screw set for top mount, silicone bowl, silicone socks, Poron damping (bottom & top plate), EVA switch pad, Cherry screw-in stabilizers, rubber feet

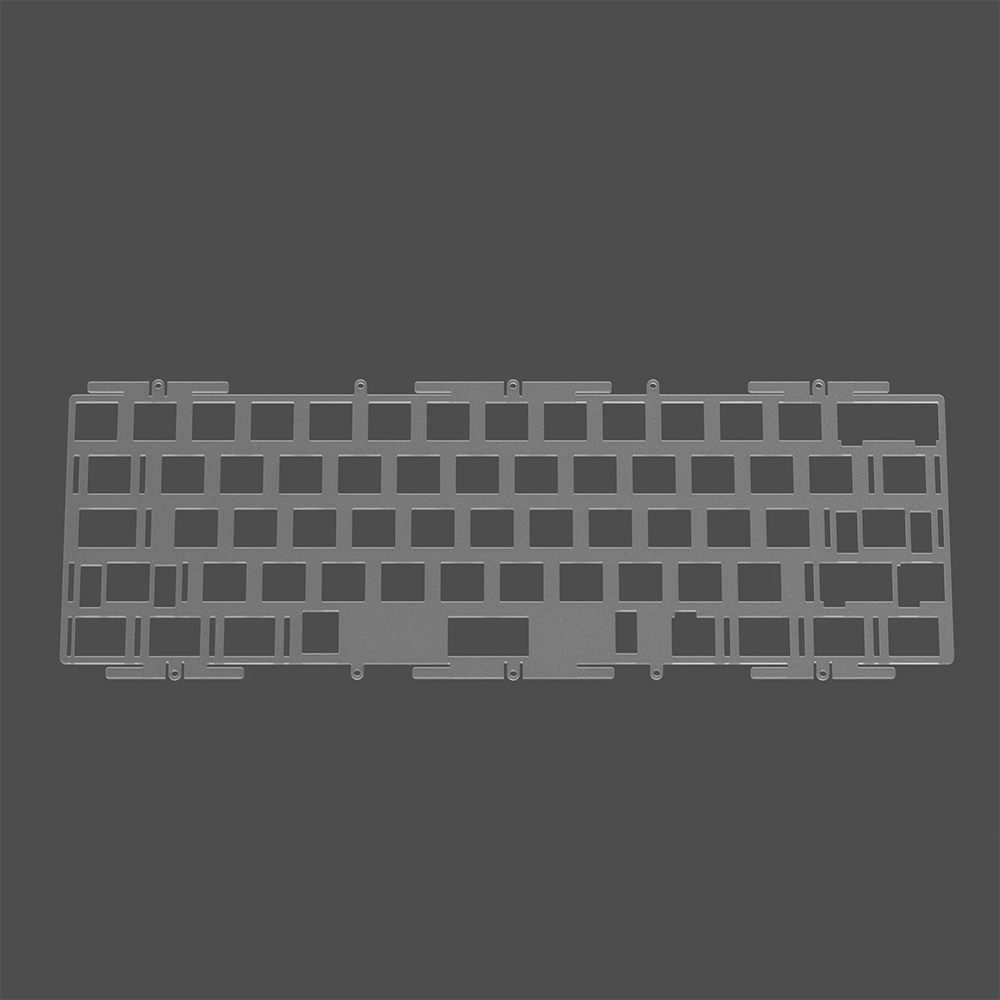

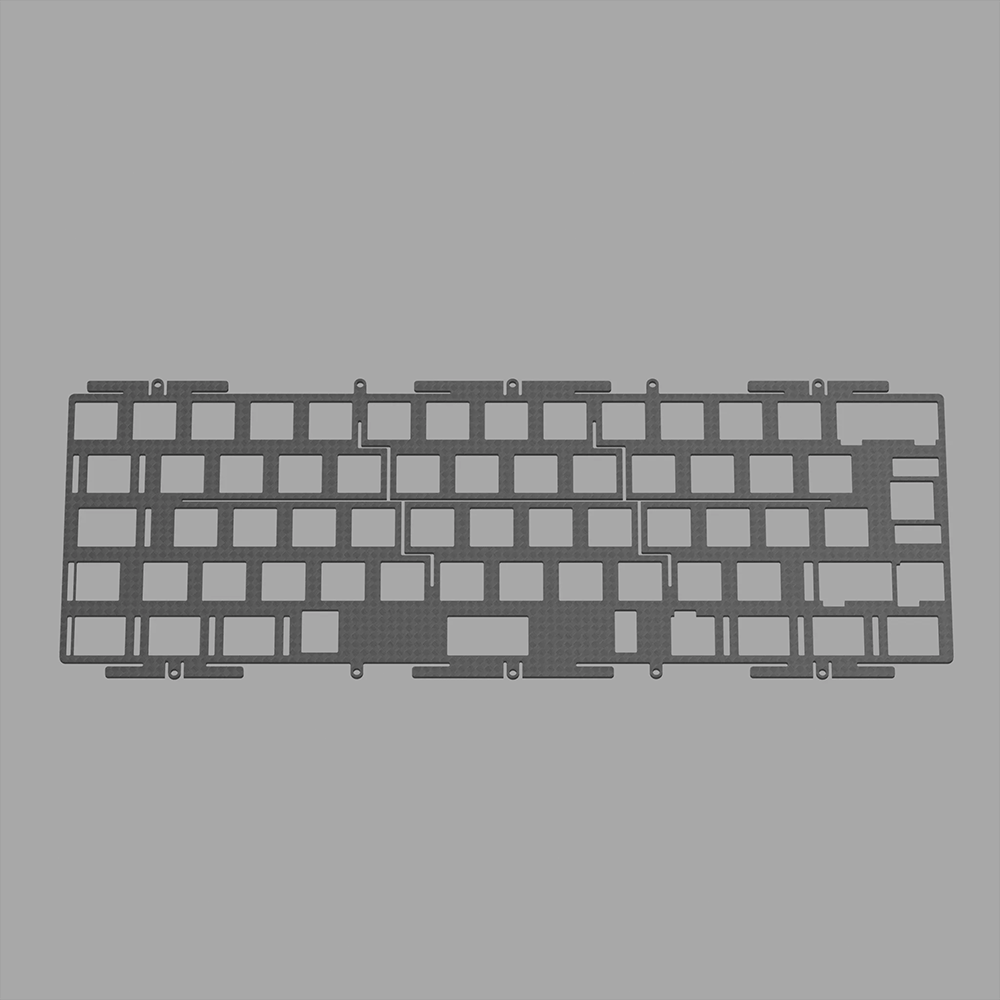

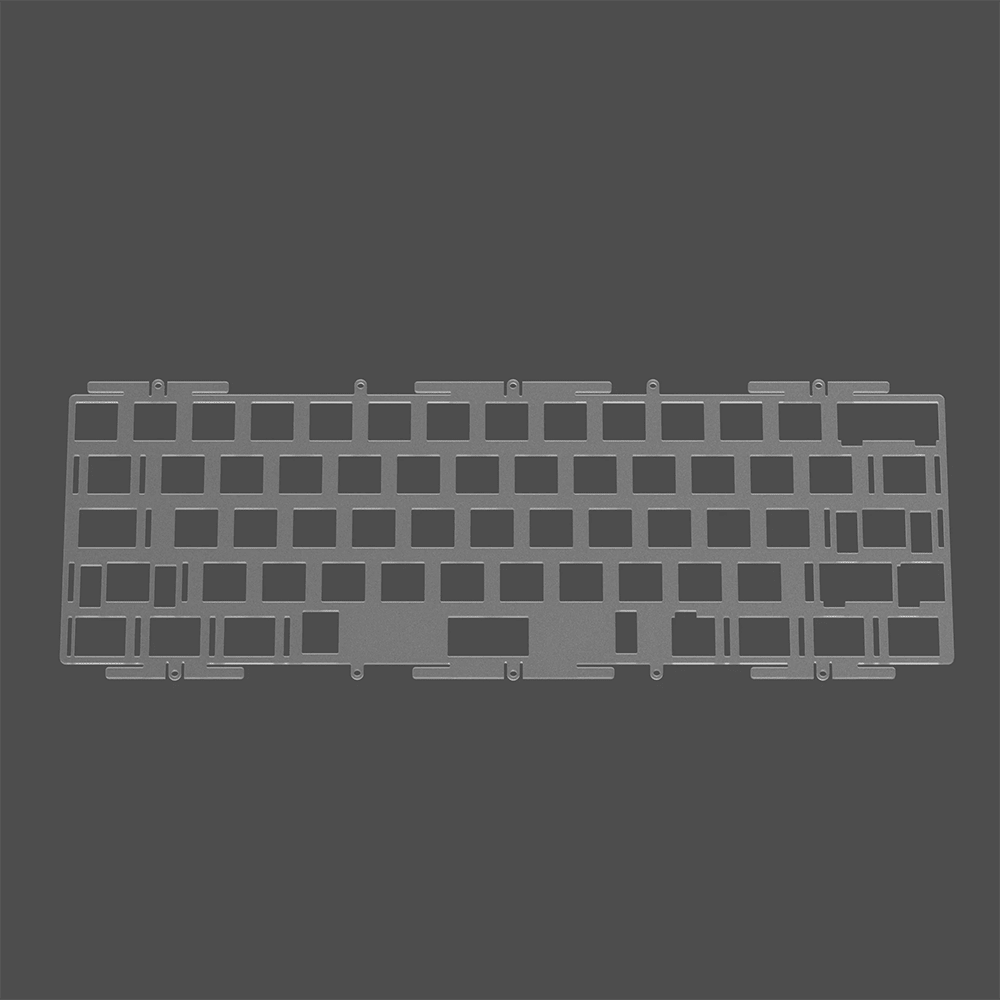

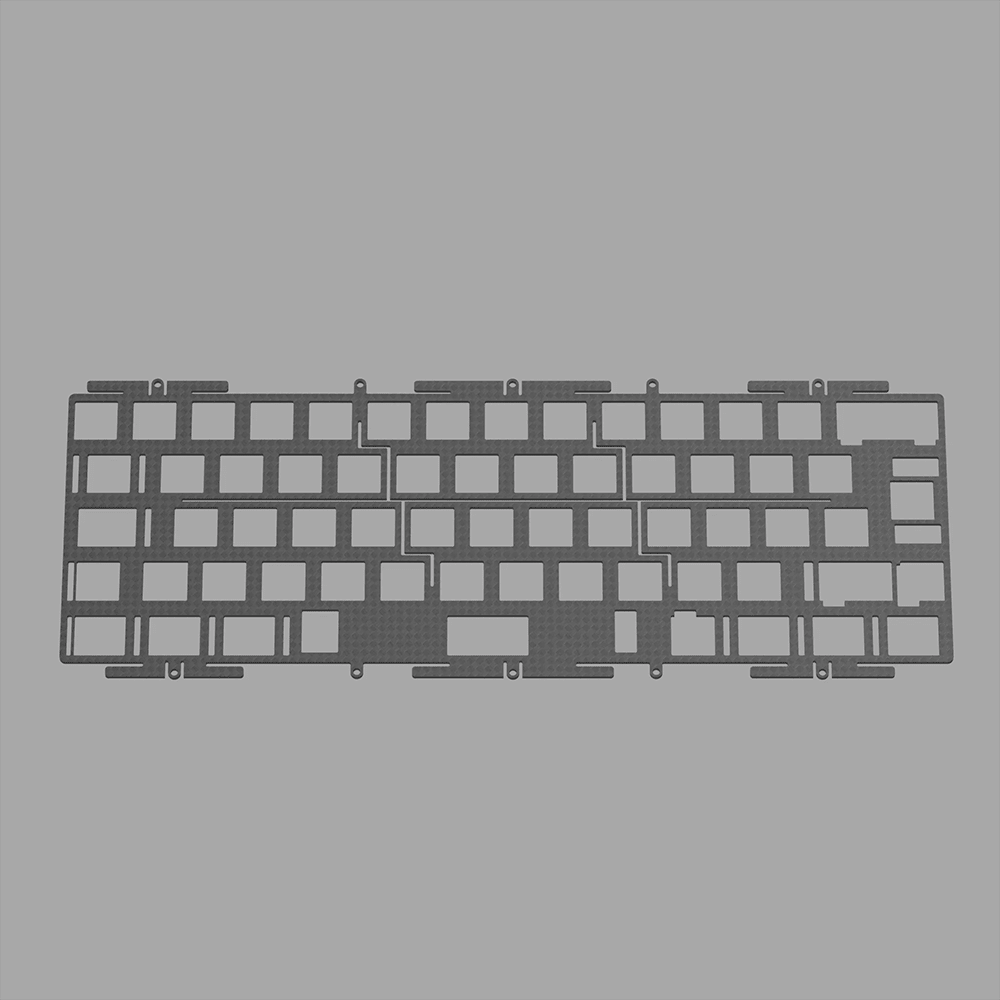

• Plate material selection: Options include PC, aluminum, FR4, carbon fiber (depending on the variant)
